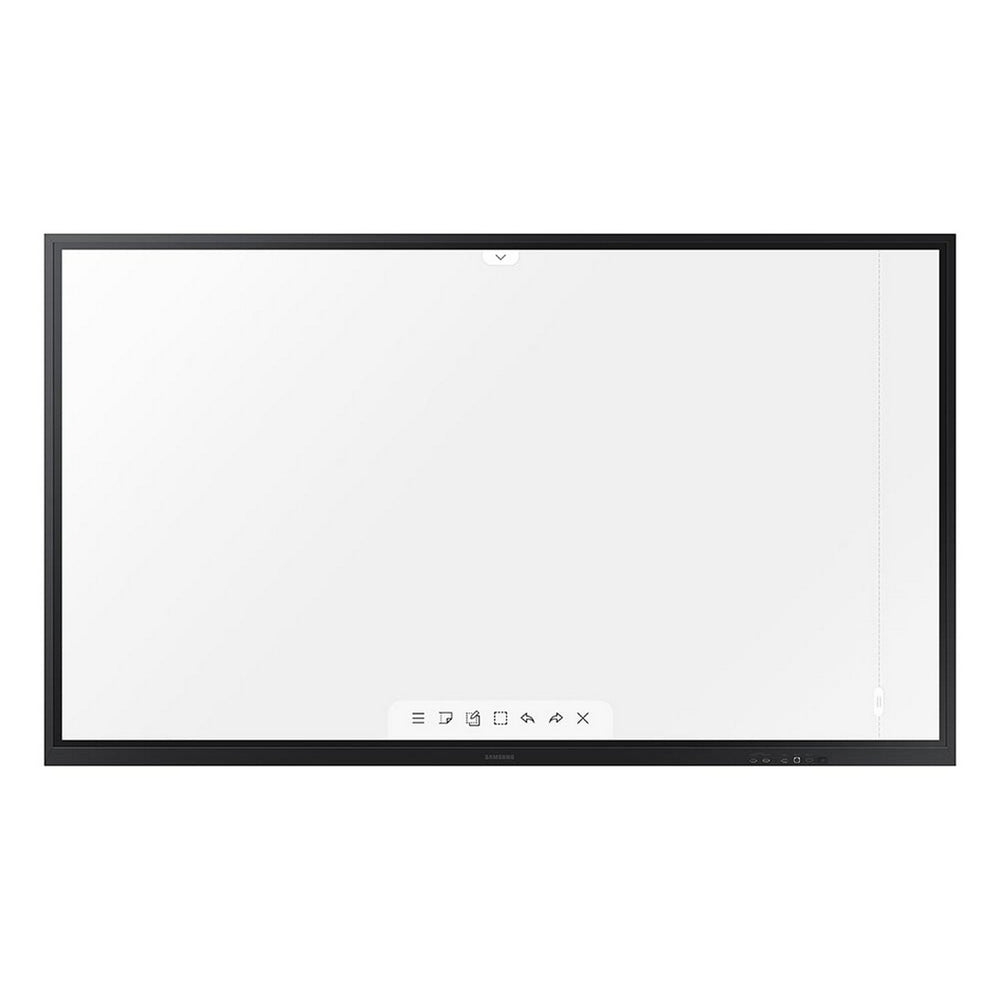

Samsung WM85A 85 Inch Flip 3 WMA Series 4K Smart Signage Display

Samsung Flip 3 transforms the classroom through interactive learning experiences, giving educators the resources needed to create effective and modern lessons. With more software and connectivity options, and intuitive interaction features, Flip 3 creates engaging learning environments. Ideate and create with interactive touchscreen technology. Sketch out ideas with swift drawing speed at just 34ms of latency or paint with real-world accuracy with 2,048 points of pressure built directly into the display. Interactions are intuitively built for problem solving and creating. Use any object near you to bring your ideas to life. Flip 3 distinguishes between inputs from thin or thick objects to simulate on-screen writing or and highlighting. Or simply erase content with your finger or palm. Thanks to an Antimicrobial Coating, Samsung Flip 3 inhibits microbial growth to help protect against certain bacteria. This enables teachers and students to stay focused on what’s on the screen with peace of mind. Samsung understands that accidents happen. To protect students and educators, the Flip 3 screen is wrapped in a proprietary shatterproof film, ensuring the screen stays intact in the event of a break. Use preferred third-party education solutions and connect to school information systems with the built-in OPS (Open Pluggable Specification) slot. Flip 3 is a centralized source for classroom learning and school-wide notifications such as principal announcements, weather alerts and fire drills.

Key Features

• Realistic drawing with the industry’s fastest speed with 34ms latency and 2,048 points of screen pressure
• Easy access to favorite education solutions with built-in OPS slot
• Explore embedded education solutions from Boxlight or web browser for any online source

Technical Specifications

Panel
Diagonal Size
85”
Type
New Edge, 60Hz
Resolution
3840*2160 (Landscape)
Brightness (Typ.)
350cd (without glass) nit
Viewing Angle (H/V)
178:178
Response Time (G-to-G)
6ms (Typ.)
Display Colors
16.7M
Sound
Speaker Type
Built in Speaker (10W x 2CH)
Connectivity
Input
Video
HDMI 2(Rear 1, Front 1), DP 1, OPS I/F
USB2
(For SoC, Rear/Front), 2 (for external 2.0 x1/3.0x1(Front)
Output
Video
HDMI 1 (Screen Share in Front)
Audio
1(Stereo Mini Jack)
Touch Out
Touch Out 2 (USB Upstream Type, Front 1, Rear 1)
External Control
Touch Input / RS232C thru stereo jack, RJ45 (For MDC)
Touch
Type
IR
# of Drawing
4 drawing (Internal) 20 touch (External)
Touch Pen Type
Passive Pen with magnet
Object Recognition Range
2mm/ 4mm / 8mm / 50mm (Brush Mode: Dynamic Object Recognition)
Haze
8%~12%
Thickness
3.2T
Hardness
Heat Semi-Strengthened Glass
Additional Film
AG, Hydrophobic Coated PET
Power
Type
Internal (Main 1ea, OPS 1ea)
Power Supply
AC 100~240V 50/60Hz
Power Consumption
Max
418 (OPS 19V/3.7A)
Stand-by (W)
0.5
Typical
151
Rating
380 (OPS 19V/3.7A)
BTU (Max)
1,425.38 (OPS 19V/3.7A)
Dimension (mm)
Set
1942.8x1144.1x69.4 mm
Package
2136x1311x260 mm
Weight (kg)
Set
74.5 kg
Package
91.5 kg
Color
Charcoal Black
VESA Mount (mm)
600 * 400
Protection Glass
Yes
Stand Type
Wall Mount
Media Player Option Type
OPS Slot support
Rotation
Landscape only
Power Cable Length
3M /2.4M (US)
Accessory
Power Cord, USB Upstream Cable (2ea), Pen (2ea, Black), OPS Box, Warranty/QSG
Internal Player
Processor
CA72 Quad (1.7GHz) 2MB L2
On-Chip Cache Memory
L2: 2MB
Clock Speed
1.7GHz CPU Quad
Main Memory Interface
LPDDR4 1.6GHz 64bit 3.0GB
Graphics
GPU: MaliG51 MP4@760MHz
Storage (FDM)
16GB
IO Ports
USB 2.0
Operating System
Tizen 6.0: Samsung Proprietary OS (VDLinux)
