Samsung WM85R Flip 2 Intuitive Digital Board
Samsung WM85R Flip 2 Intuitive Digital Board

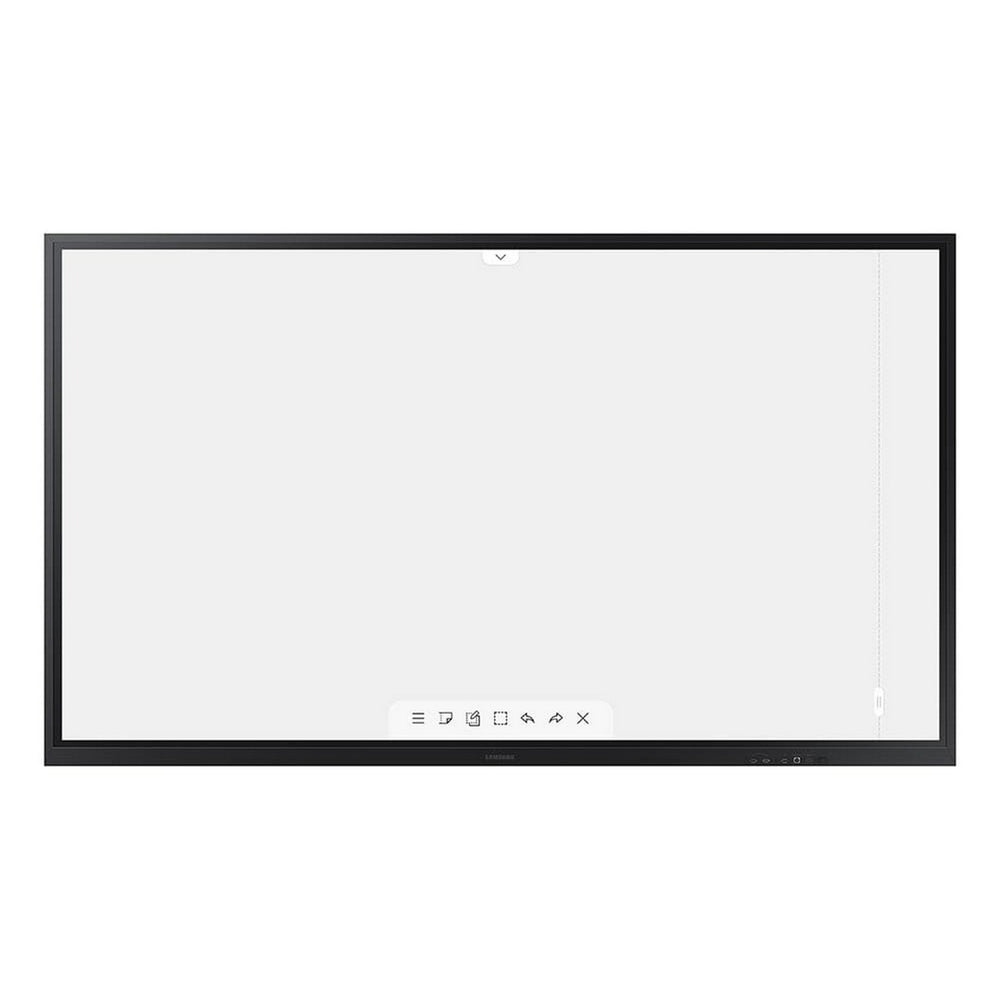

Samsung’s Flip WM85R is an optimized solution to meet the digital demands of modern education. Flip is an easy to use digital board, providing smooth pen and brush mode, enhanced connectivity options and a variety of convenient features on a larger 85-inch, UHD display. Flip provides an intuitive tool for up to 20 people to write and draw simultaneously on the large, 85-inch clear UHD display. These intuitive features ensure that all participants can actively and directly take part to increase class efficiency and engagement. Teachers can connect their personal devices to the Flip using the touch out function, controlling the content on display in real-time. Any edits made to the content on-screen will also be mirrored back to the personal device and vice versa.
Key Features
- Multi writing up to 20 on any background for optimized classroom engagement
- Versatile connectivity options and easy sharing for seamless education experience
- Powerful touch out function on larger 85-inch UHD display for impactful learning
Technical Specifications
Panel
Diagonal Size
85"
Type
New Edge, 60Hz
Resolution
3840*2160 (Landscape)
Brightness(Typ.)
350 (without glass), 220 (with glass) nit
Contrast Ratio
4000:1
Viewing Angle(H/V)
178/178
Response Time(G-to-G)
6ms(Typ.)
Sound
Speaker Type
Built in Speaker (10W x 2CH)
Connectivity
Input
Video
HDMI 2(Rear 1, Front 1), DP 1, OPS I/F
USB
2(Rear/Front), 2.0/3.0 External(Front)
Output
Video
HDMI 1 (Screen Share in Front)
Audio
1(Stereo Mini Jack)
Touch Out
Touch Out 2 (USB Upstream Type, Front 1, Rear 1)
External Control
Touch Input, RS232C thru stereo jack, RJ45(For MDC)
Touch
Type
IR
# of Drawing
4 drawing (Internal) 20 touch (External)
Touch Pen Type
Passive Pen with magnet
Object Recognition Range
2mm/ 4mm / 8mm / 50mm (Brush Mode : Dynamic Object Recognition)
Power
Type
Internal (Main 1ea, OPS 1ea)
Power Supply
AC 100~240V 50/60Hz
Power Consumption
Max
418 (OPS 19V/3.7A)
Stand-by (W)
0.5
Typical
151
Rating
380 (OPS 19V/3.7A)
BTU(Max)
1,425.38 (OPS 19V/3.7A)
Dimension (mm)
Set
1942.8(W) x 1144.1(H) x 69.4(D)
Package
2136(W) x 1311(H) x 260(D)
Weight (kg)
Set
74.5
Package
91.5
