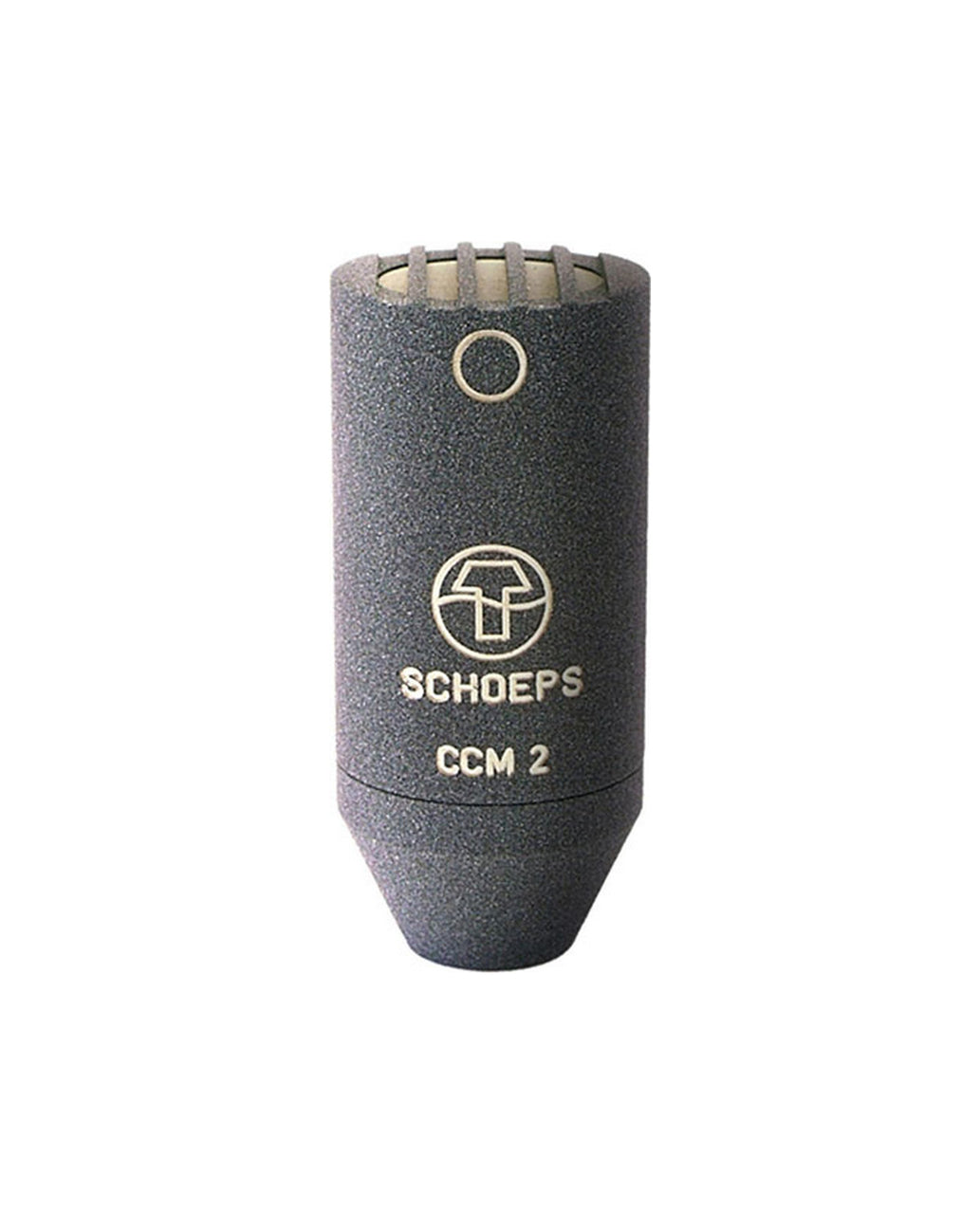

Schoeps CCM 2 Ug Omnidirectional Compact Condenser Microphone with Flat Frequency Response Matte Black
As can be seen from the frequency response curve, this Schoeps CCM2UG Omnidirectional Compact Condenser Microphone with Flat Frequency Response | Matte Black has flat frequency response for frontal sound incidence. This yields a very natural quality when picking up sound that is predominantly direct, i.e. close to the source or in a ”dry” acoustic. The sonic impression never becomes overly brilliant or ”sharp.”
Please note that there is some directivity at high frequencies due to the physics of sound wavelengths. Thus even with an omnidirectional microphone, It'still matters which way the capsule is “aimed.”
Key Features
-
Omnidirectional
-
Linear frequency response
-
Corrected for the direct sound field
-
For use close to the sound source (frontal sound incidence)
-
Preferred applications: close pickup of singers and instruments
Technical Specs
Current consumption with 12V
8mA
Current consumptionwith 48V
4 mA
Impedance
90Ω
Minimum recommended load impedance
600Ω
Low-cut frequency
20 Hz
Length
46-58 mm
Diameter
20 mm
Weight
33 g - 0.07 lbs
Frequency range
20 Hz - 20 kHz
Sensitivity
16 mV/Pa
Equivalent niose level (A-weighted)
11 dB-A
Equivalent niose level (CCIR)
23 dB
Signal-to-noise ratio (A-weighted)
83 dB-A
Maximum Sound pressure level at 0.5% THD
130 dB-SPL
