Schoeps CMC 6Ug xt 12V-48V Phantom power Supply / Universal Amplifier for MK Capsules with Extended Frequency Response Matte Gray
Schoeps CMC 6Ug xt 12V-48V Phantom power Supply / Universal Amplifi...
Free Shipping
Schoeps CMC 6Ug xt 12V-48V Phantom power Supply / Universal Amplifier for MK Capsules with Extended Frequency Response Matte Gray

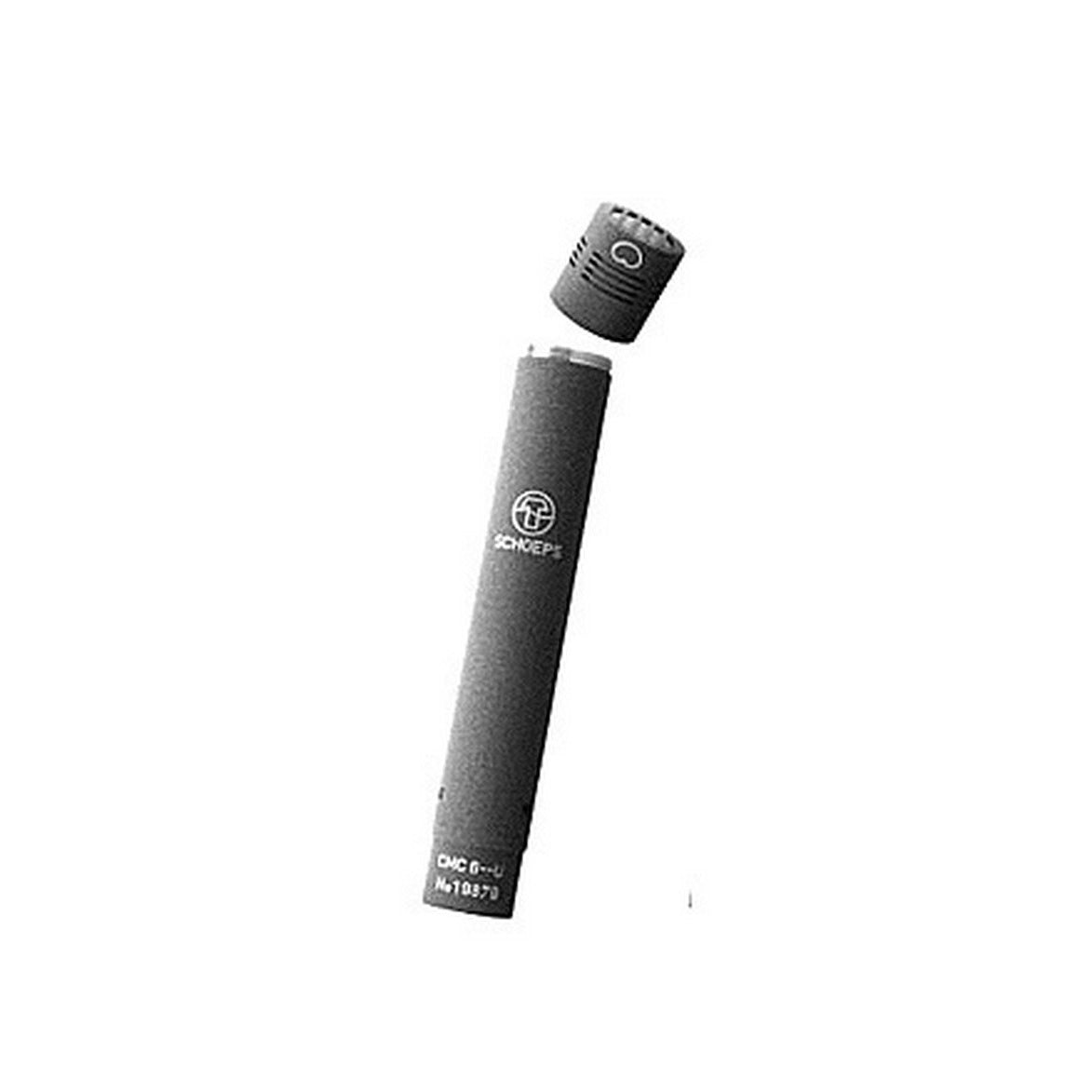

The Schoeps CMC6UXT 12V-48V Phantom power Supply / Universal Amplifier for MK Capsules with Extended Frequency Response is a balanced output stage and +12 to +48V phantom power supply for the Schoeps Colette series modular capsules. The transformer-less output stage ensures low-noise and pristine audio reproduction throughout. The CMC6-UXT is terminated with a standard balanced 3-pin XLR connection for use with standard microphone inputs and preamplifiers. The CMC6-UXT features an extended high frequency range beyond 40kHz.
Key Features
-
Flat frequency reponse
-
Extremely low noise and distortion
-
Balanced, very low-impedance output
-
Can be used with very long calbes
-
Well-protected against RFI
-
For use with 12-or-48-Volt phantom powering
Technical Specs
Powering voltage
12 / 48 V
Current consumption with 12V
8 mA
Current consumption with 48V
4 mA
Impedance (at 12 V)
25 O
Impedance (at 48 V)
35 O
Low-cut frequency
20 Hz
Maximum output voltage
1 V
Minimum recommended load impedance
600 O
Length
4.57"
Diameter
0.79"
Weight
0.13 lbs
