FLOW 4K: A Comprehensive Solution for Broadcast Quality Video

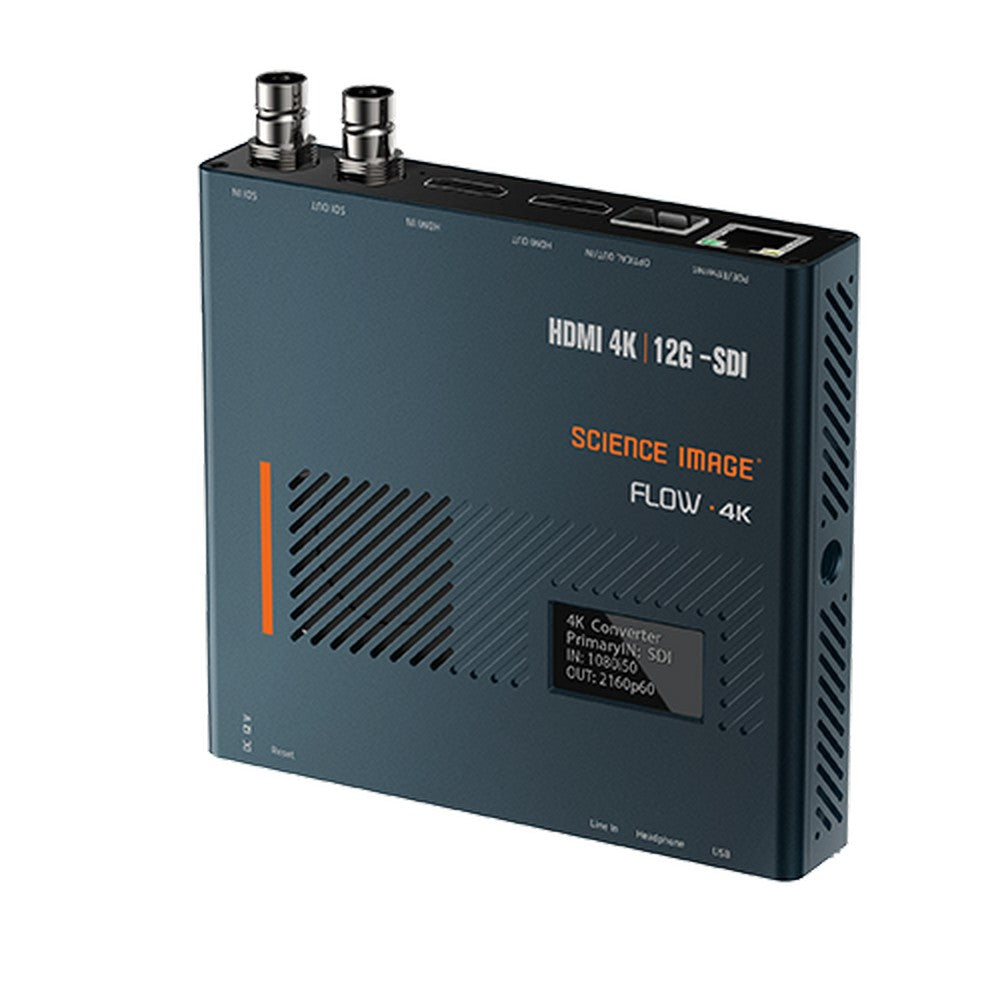

The FLOW 4K is a compact, all-in-one frequency conversion and optical end machine. It comes equipped with built-in 12G-SDI and HDMI 4K60 optical modules, allowing bidirectional optical connectivity in the field. This versatile device offers up/down/cross conversion, UHD optical transceiver functionality, and an OLED display to show real-time operating status and information.

Up/Down/Cross Conversion
With support for at least 35 SMPTE standard formats, the FLOW 4K is an efficient 12G-SDI/HDMI2.0 interface up/down/cross converter. User-defined special formats can also be accepted for added flexibility.

UHD Optical Transceiver
The built-in 12G-SDI and HDMI 4K60 optical transceiver function allows the FLOW 4K to function as a two-way optical transceiver when used on site. The user can switch the sending or receiving function with one key. The transmission distance can reach 20KM.

Working Status at a Glance
The OLED display shows the important operating status and information of the box in real-time. Its rich content makes it easy to see what's happening, allowing for quick responses to changes.

Flexible Deployment
The FLOW 4K can be deployed on the front end or display/control terminal, depending on the scene. It functions as an SDI/HDMI bidirectional converter while the optical transceiver works. One machine for multiple purposes, reducing system cost, fast response, flexibility, and convenience.

Broadcast Quality
The FLOW 4K supports 12G-SDI/HDMI 2.0 and SMPTE/ITU broadcast level international standard formats and specifications, including 444, 422, 420, and other sampling formats. It uses Selinth FPGA SOC hardware and internal logic design, embedded Linux system, and performs like a rock, impervious to the environment.

Compatibility and Stability
The FLOW 4K is compatible with SMPTE standard video source formats and video sources and formats of different devices from manufacturers worldwide. It is compatible with different software platforms, browsers, and other peripheral application environments, making it truly plug-and-play. It is designed with industrial standards in mind, ensuring long-term stability.

Key Features

• The Flow 4K is an advanced Up/Down/Cross Converter, seamlessly combining signal conversion and optical end machine functionalities.
• Empowered by built-in 12G-SDI and HDMI 4K60 optical modules for bidirectional uses in the field.
• Enables long-distance transmission of original signals through access to the optical fiber line.
• Economically advantages, reducing system costs while delivering speedy, versatile, and convenient responses.
• Operates as a 12G-SDI/HDMI2.0 interface up/down/cross converter, supporting at least 35 SMPTE standard formats.
• Capable of incorporating user-defined special formats.
• The inbuilt 12G-SDI and HDMI 4K60 functionalities offer bidirectional transceiving capabilities, both receiving and sending.
• Real-time operating status and crucial information are provided via an OLED display.

Technical Specifications

Video format
SDI video format
1.5G/3G-SDI HD video format
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
6G/12G-SDI/Ultra HD /4K video format
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI specification
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
HDMI video format
HD video format
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
4K video format
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI video sampling
4:2:2 and 4:4:4
SDI audio sampling rate
TV standard 48kHz
SDI color accuracy
4:2:2 and 4:4:4
SDI color space
REC 709
BT2020
HDMI color space
REC 709
BT2020
HDMI color accuracy
YUV 4:2:2 and RGB 4:4:4
Interface
SDI video input
1 x 1.5G/3G/6G/12G-SDI, adaptive input, automatic switching
SDI video output
1 x 1.5G/3G/6G/12G-SDI, adaptive output, automatic switching
HDMI video input
1 x HDMI 2.0 Type A interface supports up to HDMI 4K60p input, backward compatible
HDMI video output
1 x HDMI 2.0 Type A interface supports maximum HDMI 4K60p output, backward compatible
Optical fiber input and output
1 x SMPTE optical fiber SFP socket, used to connect different types of Gigabit/10 Gigabit/12G-SDI optical fiber modules
RJ45 Gigabit Ethernet port
1 x RJ45 Gigabit Ethernet interface
LINE IN audio input port
1 x LINE IN 3.5mm audio input port for external analog audio embedding
MIC input and output port
1 x Mic 3.5mm audio input and output port
Display
1.3-inch OLED screen
1 x 1.3-inch OLED screen, real-time display of NDI box encoding/decoding status, input/output format and IP and other information, clear at a glance, easy to operate.
Size
125mm x 115mm x 24mm
Weight
360g
Material
all aviation aluminum milling
Power supply
Two power supply modes
5-18V DC power input and POE
Power consumption
10W
Environmental requirements
Operating temperature
5 Degrees C to 40 Degrees C
Storage temperature
-20 Degrees to 60 Degrees C (-4 Degrees to 140 Degrees F)
Relative humidity
0% to 90% non-condensing
Packing List
FLOW 4K
quick start manual
12V universal power supply (includes four sets of international conversion plugs)
