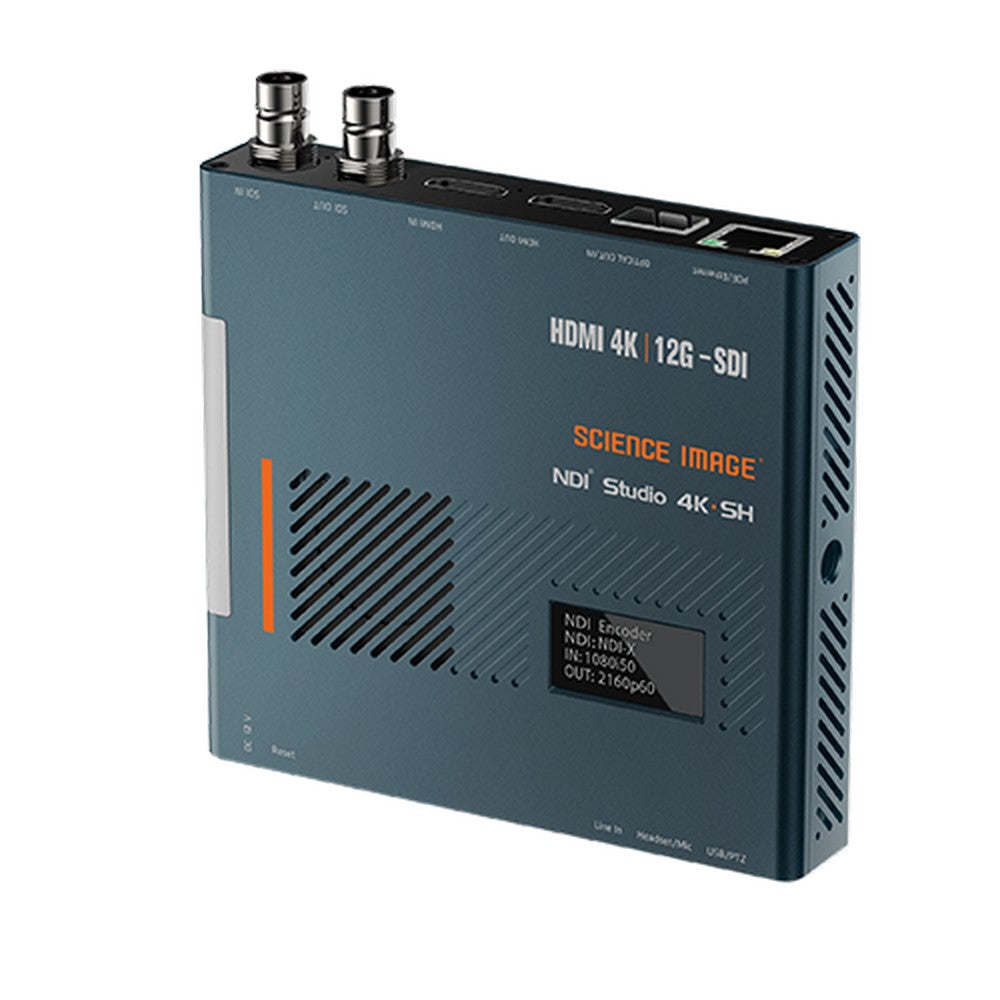

Introducing NDI Studio 4K.SH - The Ultimate Broadcasting Solution

Looking for a top-of-the-line broadcasting solution? Look no further than NDI Studio 4K.SH - the perfect choice for remote video conferences, live streaming, programming and sporting events.

Exceptional Video Quality
NDI Studio 4K.SH supports up to 12G SDI and HDMI 4K60 video signal input, offering ultra-high definition and ultra-low latency video presence. With NDI Studio 4K SH, you can be confident you are receiving excellent AV experience.

Bi-Directional Encoding & Decoding
NDI Studio 4K.SH provides full NDI encoding and decoding, with exact original image color and sharpness, low latency, broadcast-grade metrics, and flexible UDP features. It also includes integrated TALLY, audio embed/unembed and call capabilities, and flexible live applications and networking, enabling your team to quickly build an IP broadcast-grade studio with high efficiency and low cost.

One-Click Transformation
NDI Studio 4K.SH supports 27 formats of up and down conversion from HD to UHD, making it easy to convert between formats. With a resolution format of up to 3840x2160p60 and flexible conversion, you can enjoy an easy conversion experience with just one click.

UHD Optical Transceiver
NDI Studio 4K.SH supports long-distance transmission of up to 20km, with ultra-fast and super stable NDI Studio 4K SH's optical transceiver function. With just one click, you can switch between the transmitting and receiving ends, and enjoy the flexible switch between them.

Complete and Overall Large Size
NDI Studio 4K.SH features a 1.3” OLED, displaying all working statuses - such as Encoding or Decoding, Signal, Format, Network, Input/Output, Optical Transmit or Receive, and more - in real-time.

Flexible Deployment
NDI Studio 4K.SH features built-in 12G-SDI and HDMI 4K60 optical transceiver functionality, making it easy to deploy in any environment. Users can switch the receiving or sending function with one key according to the actual situation, which makes it truly plug and play.

NDI 5.5
NDI Studio 4K.SH supports NDI 5.5 functions, with the application of NDI 5 features and toolset. It gives full play to the remote advantages of NDI 5, not limited by the region and network bandwidth, anytime, anywhere to build the studio you need.

Broadcast Quality
NDI Studio 4K.SH supports 12G-SDI/HDMI 2.0 and SMPTE/ITU international broadcast standard formats, compatible with multiple sampling formats (444, 422, 420), and accurate and fast signal recognition. It adopts Xilinx FPGA SOC hardware, internal design and embedded Linux system, ensuring the program runs stably, not influenced by the external complex environment.

Compatibility and Stability
NDI Studio 4K.SH is compatible with most equipment and software. It meets industrial standards, ensuring its durability and reliability.

Key Features

• The NDI Studio 4K.SH is a paramount 12G-SDI/HDMI 4K60 Encoder/Decoder.
• It supports exceptional 12G SDI and HDMI 4K60 video signal input conversion into network signals.
• It seamlessly converts network signals into SDI/HDMI signal output, offering ultra-high definition, ultra-low latency video presence.
• The encoder, frequency converter, and optical transceiver can operate concurrently, facilitating flexible transmission methods.
• This product is the optimal choice for programming, sports events, live streaming, and remote video conferences.
• It supports Full NDI encoding and decoding with a single click.
• Compatibility with 12G-SDI and HDMI 4K60 or below any SMPTE standard format input.
• It comprises precise original image color encoding and decoding, delivering broadcast-grade metrics, flexible UDP features, and integrated TALLY.
• Also, it provides audio embed/unembed and call capabilities.

Technical Specifications

SDI video format
1.5G/3G-SDI HD video format
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
6G/12G-SDI/Ultra HD /4K video format
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI specification
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
HDMI video format
HD video format
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 1080p50, 1080p59.94, 1080p60
4K video format
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI video sampling
4:2:2 and 4:4:4
SDI audio sampling rate
TV standard 48kHz
SDI color accuracy
4:2:2 and 4:4:4
SDI color space
REC 709
BT2020
HDMI color space
REC 709
BT2020
HDMI color accuracy
YUV 4:2:2 and RGB 4:4:4
Interface
SDI video input
1 x 1.5G/3G/6G/12G-SDI, adaptive input, automatic switching
SDI video output
1 x 1.5G/3G/6G/12G-SDI, adaptive output, automatic switching
HDMI video input
1 x HDMI 2.0 Type A interface supports up to HDMI 4K60p input, backward compatible
HDMI video output
1 x HDMI 2.0 Type A interface supports maximum HDMI 4K60p output, backward compatible
Optical fiber input and output
1 x SMPTE optical fiber SFP socket, 12G-SDI optical Transceiver modules
RJ45 Gigabit Ethernet port
1 x RJ45 Gigabit Ethernet interface, used to control and set equipment parameters and input and output NDI signals
LINE IN audio input port
1 x LINE IN 3.5mm audio input port for external analog audio embedding
MIC Intercom input and output port
1 x Mic 3.5mm audio input and output port (De-Embeded), used for NDI Intercom (with Laudo software required)
USB 2.0 Type A port
1 x USB 2.0 Type A interface, used to control a third-party PTZ camera
Display
1.3-inch OLED screen
1 x 1.3-inch OLED screen, real-time display of NDI box encoding/decoding status, input/output format and IP and other information, clear at a glance, easy to operate
Large size TALLY light guide block
Large-size semi-transparent matt TALLY light guide block, which can display three TALLY states transmitted through NDI in real time: Green/Preview, Red/Program
Network and requirements
Gigabit Ethernet switch and Gigabit Ethernet card.
Software, operating system, support platform
Built-in Linux, application control software Science Image Laudo.
Supports Windows 8.1 and 10 operating systems, Mac 10.14 Mojave, Mac 10.15 Catalina or higher.
Support IE/Edge/Firefox/Chrome/Safari/Opera and other browsers.
Size
125mm x 115mm x 24mm
Weight
370g
Material
all aviation aluminum milling
Power supply
Power Supply Requirements
Two power supply modes: 9-18V DC and POE
Power Consumption
18W
Accessories
Optical Module
12G-SDI /HDMI 4K SFP Optical Module
Environmental requirements
Operating temperature
5 Degrees C to 40 Degrees C
Storage temperature
-20 Degrees to 60 Degrees C (-4 Degrees to 140 Degrees F)
Relative humidity
0% to 90% non-condensing
Packing List
NDI Studio 4K.SH
Quick start manual
12V universal power supply (includes four sets of international conversion plugs)
Packing List
NDI Studio 4K.SH
Quick start manual
12V universal power supply (includes four sets of international conversion plugs)
