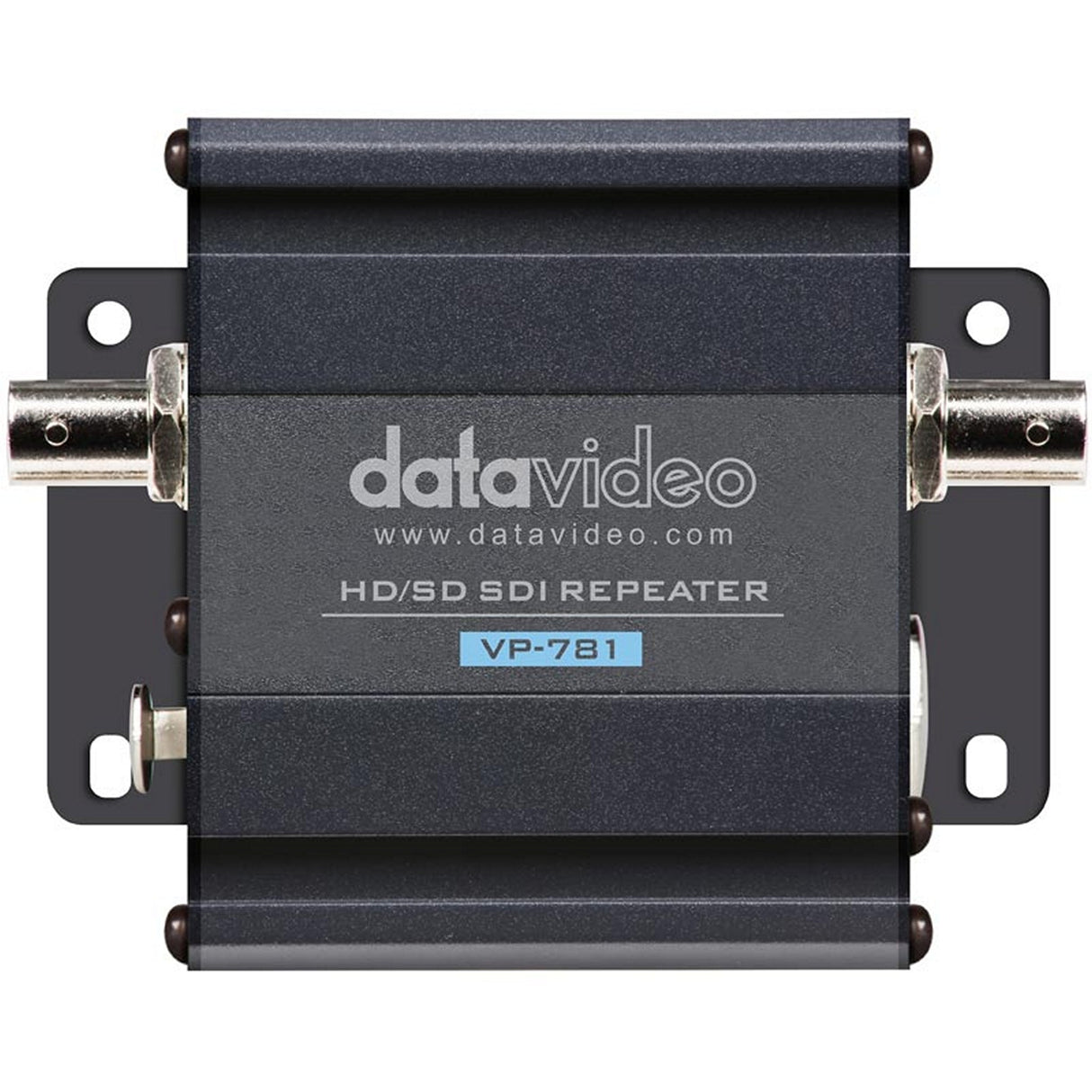

Datavideo VP-781 CB-50 Cables HD/SD-SDI Intercom Signal Repeater
Datavideo VP-781 CB-50 Cables HD/SD-SDI Intercom Signal Repeater
The VP-781 HD/SD-SDI Repeater with Intercom transmission is designed to cascade CB-50 cables which are connected between the Switcher and Cameras.
The device’s built-in HD/SD-SDI Repeater and Intercom audio pass-through are for signal transmission.
Pairing VP-781 with VP-633 extends video transmission to 200 meters.
Key Features
- HD/SD-SDI with Intercom Repeater
- Extend HD/SD-SDI, Intercom and Tally signal transmission upto 200M
- Cascade CB-50 All-In-One Cables to extend signal transmission
- Built-in HD/SD SDI Repeater and 5-PIN XLR Intercom pass- through
Technical Specifications
Max Distance
200 m / 660 ft (Cascade)
SDI Video Format
SD: 525i (NTSC)/625i (PAL)
HD: 1080p24/25/30
1080i50/59.94/60
720p50/59.94/60
SDI Compliance
SMPTE 259M, SMPTE 292M
Intercom
Yes
Impedance
75 Ohm
Connectors
SDI Input x 1
SDI Output x 1
5Pin XLR Input x 1
5Pin XLR Output x 1
Dimension (mm)
107.4 x 66 x 45
Weight (kg)
Gross Weight: 0.388 Kg
Net Weight: 0.254 Kg
Operating Temperature
0 deg C to 50 deg C (32 deg F to 122 deg F)
Operating Humidity
10% to 90% (non condensing)
Certification
CE, FCC
