Description

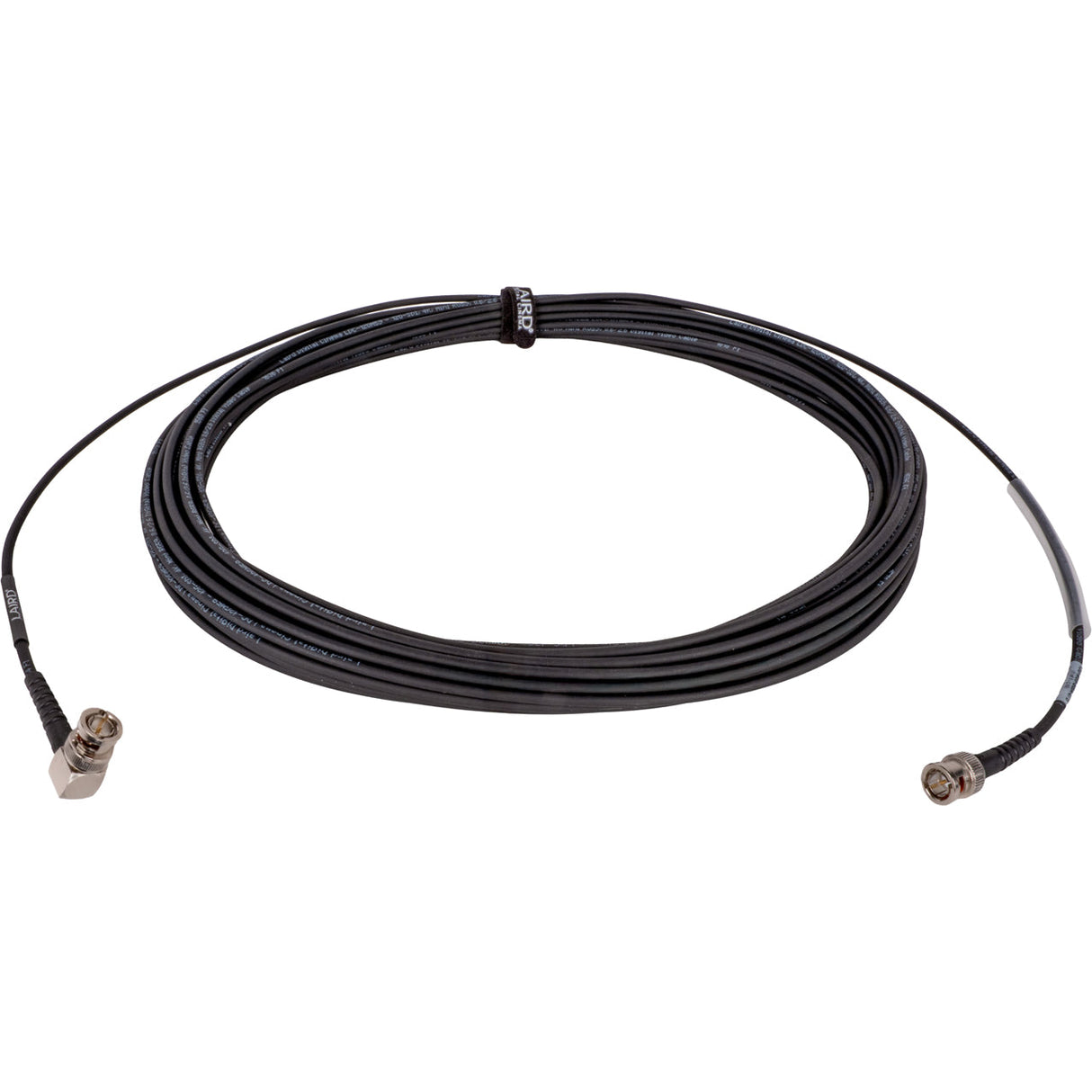

Laird 12G-M59-BBA Right-Angle BNC 12G-SDI 4K UHD Video Cable
The Laird 12G-M59 Tactical Series is a rugged, field-ready 12G-SDI cable built for broadcast and mobile production environments where dependable signal delivery matters. Using flexible Mini RG-59 12G-SDI coax with a durable TPE jacket, this tactical assembly supports professional uncompressed 4K UHD workflows. This series is offered in multiple standard lengths to fit common routing and deployment needs.
Designed for harsh environments, the cable uses a double-shielded foil and braid construction to help protect signal strength and reduce interference. It supports 12Gbps transmission for 12G-SDI ST 2082 workflows and is engineered to maintain reliable performance in field and broadcast applications. Laird certifies this cable to work at a maximum transmission distance of 115 feet for 12G-SDI under their stated signal integrity standard.
The right-angle BNC connector option helps simplify installs in tight spaces and behind equipment where straight connectors are difficult to route. High-quality BNC connectors support secure connections and repeated use in production setups. This cable is a strong fit for broadcast trucks, fly packs, studios, and mobile kits that demand durability and consistent performance.
Key Features
- Right-Angle BNC Design: Right-angle BNC Male connector option helps with tight installs and cleaner cable routing.
- 12G-SDI 4K UHD Support: Supports 12Gbps transmission of uncompressed 4K UHD video.
- Flexible Tactical Build: Flexible Mini RG-59 12G-SDI cable for mobile and deployable applications.
- Interference Protection: Double-shielded foil and braid construction for excellent protection from signal interference.
- Professional Connectors: High-quality BNC connectors designed for reliable deployment in field and broadcast applications.
Technical Specifications
- RG Type: Mini RG-59
- Inner Conductor O.D.: 0.02 inch (0.584mm)
- Inner Material: Silver Plated Copper
- Dielectric O.D.: 0.10 inch (2.59mm)
- Dielectric Material: Foam HDPE
- First Shield Material: Bonded Aluminum Foil
- Second Shield Material: Tinned Copper Braid
- Jacket O.D.: 0.15 inch (4.05mm)
- Jacket Material: TPE
- Impedance: 75 Ohms
- Max. Frequency: DC to 12 GHz
- Capacitance: 53 pF/m
- Velocity of Propagation: 83%
- Bending Radius Static: 0.55 inch (14mm)
- Bending Radius Flexing: 0.55 inch (14mm)
- Temperature: -4°F to 167°F (-20°C to 75°C)
- Connector Dielectric Withstanding: 1500 Volts RMS Maximum
- Connector Impedance: 75 Ohms
- Connector Interface Frequency: 12 GHz
- Connector Lifetime: 500 mating cycles
