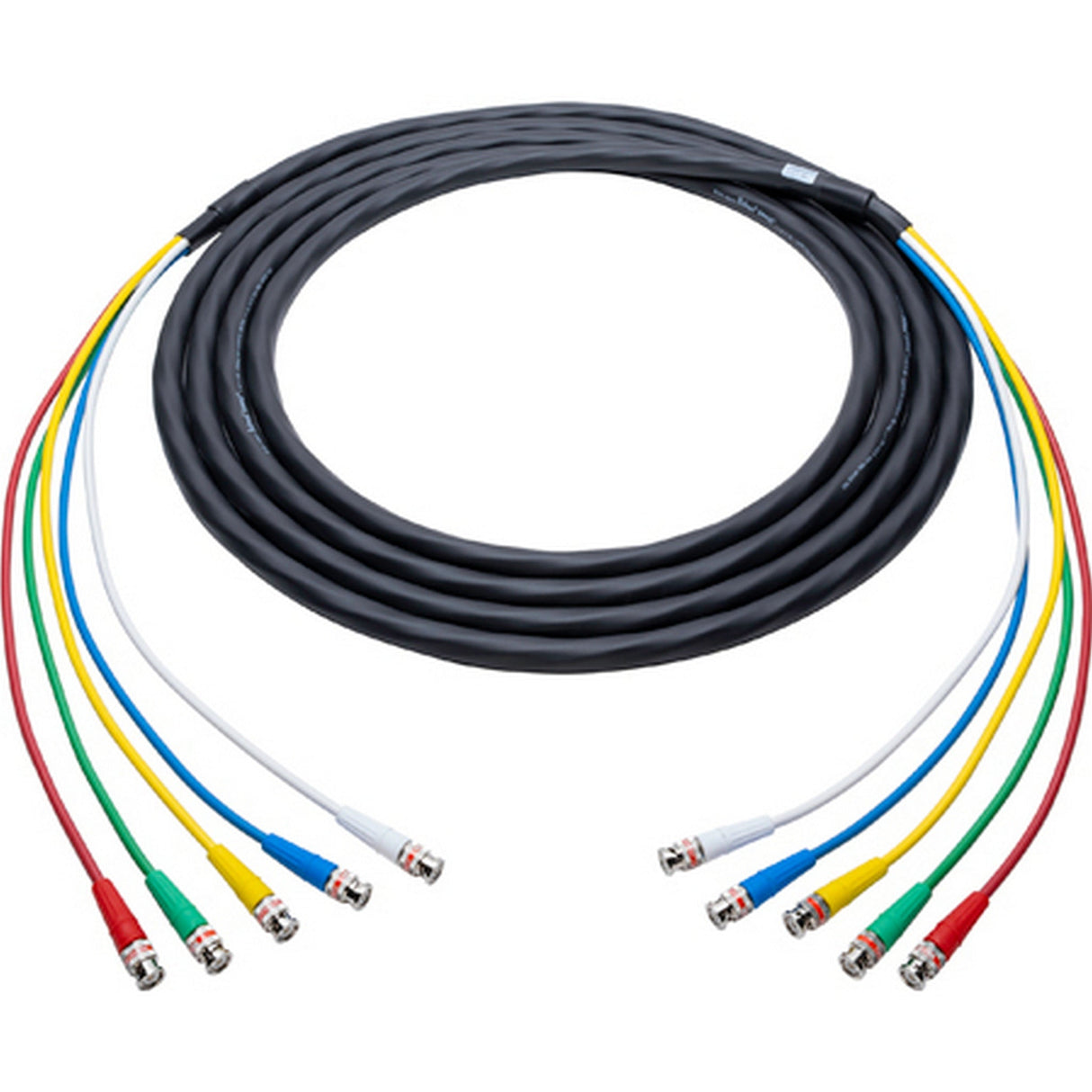

Laird 4505RX5-B-B-175 5-Channel 12G-SDI 4K UHD BNC Cable Assembly (175')

Laird 4505RX5-B-B-175 5-Channel 12G-SDI 4K UHD BNC Cable Assembly (175')

Laird 4505RX5-B-B-175 is a multi-channel video cable assembly designed for professional broadcast and production environments. It enables high-bandwidth 12G-SDI signal transmission over a single precision coax platform for video engineers managing UHD and 4K signal workflows. This makes it ideal for studio, control room, and mobile production applications where signal integrity and space efficiency are critical.

The cable assembly operates using Belden 20 AWG precision coax with a silver-plated copper conductor and gas-injected foamed HD polyethylene insulation. It supports single-link 12G-SDI, 6G-SDI, and 3G-SDI transport while meeting SMPTE 424M, ST 2081-1, and ST 2082-1 standards.

The five-channel construction allows consolidated signal routing while reducing overall cable bulk. This supports clean installations and reliable connectivity in fixed and mobile broadcast systems.

Key Features

• UHD and 4K Video Transport: Designed for professional 12G-SDI and UHD signal workflows
• Five-Channel Precision Coax Design: Combines multiple signal paths into a single cable assembly
• Certified Transmission Performance: Supports 12G, 6G, and 3G signal distances within certified limits
• Belden 12G BNC Connectors: Terminated with 12G-optimized BNC connectors for secure device compatibility
• Standards Compliance: Meets SMPTE 424M, ST 2081-1, and ST 2082-1 specifications

Technical Specifications

Video Standard Support
12G-SDI
6G-SDI
3G-SDI

Number of Channels
5

Coax Cable Type
Belden 20 AWG 12G SDI coax cable

Conductor Material
Silver-plated copper

Connector Type
BNC male to BNC male

Characteristic Impedance
75 ohm nominal

Certified Transmission Distance
12G up to 208 ft
6G up to 302 ft
3G up to 433 ft

Operating Temperature Range
-30°C to +75°C
