Condition: New
Description

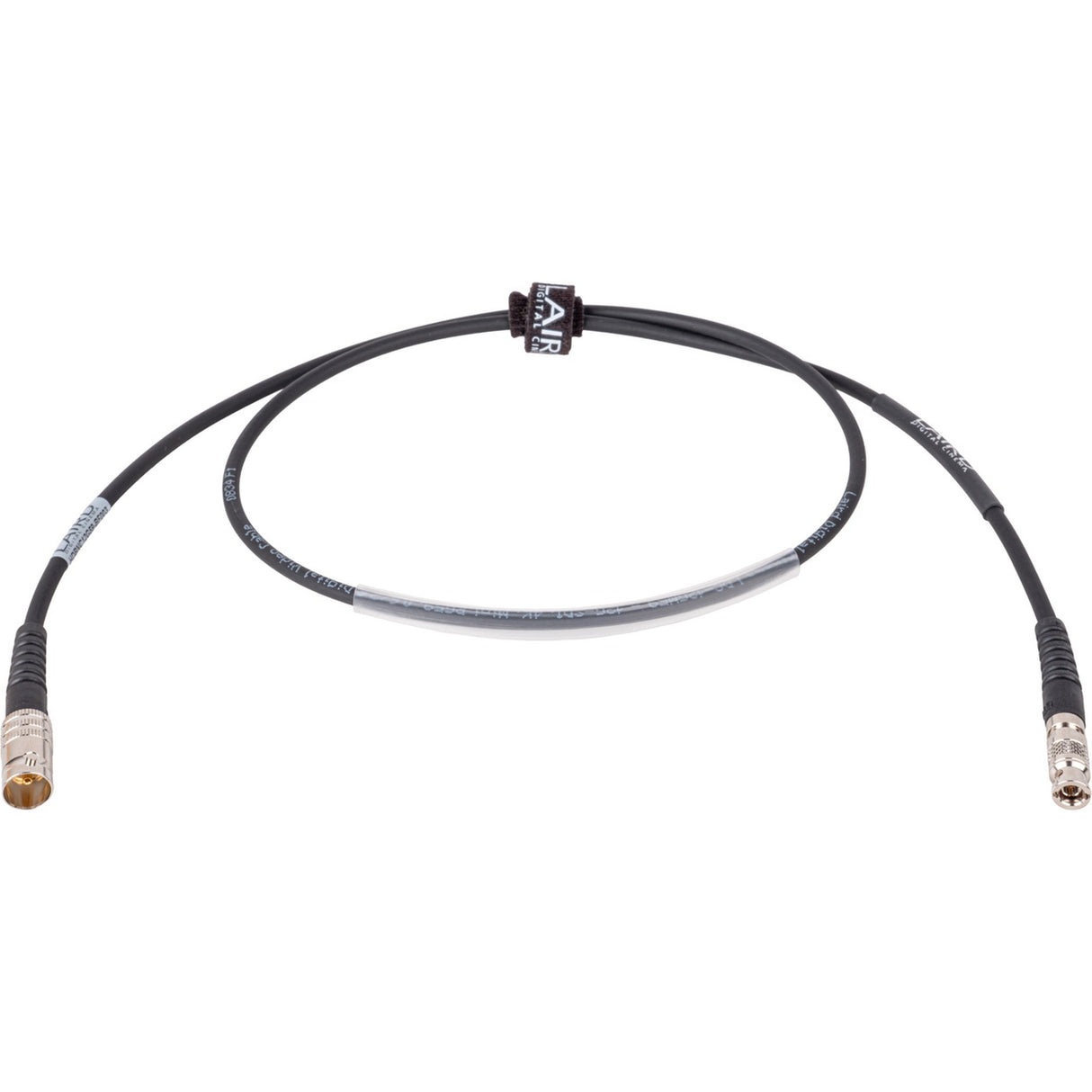

Laird HDBNC12G59-BF Mini RG-59 12G-SDI Cable
The Laird HDBNC12G59-BF is a professional Mini RG-59 HD-BNC to BNC cable designed for reliable 12G-SDI and 4K UHD signal transmission in broadcast and mobile production environments. This 10 foot cable features an HD-BNC male to BNC female configuration, making it ideal for compact, high-density camera and routing applications.
Part of the Laird Tactical Series, this cable is constructed using flexible Mini RG-59 12G-SDI cable with a double-shielded foil and braid design and a rugged TPE jacket. It supports uncompressed 12Gbps 4K UHD signals and is certified by Laird for up to 115 feet of 12G-SDI transmission with full signal integrity under proper conditions.
This cable is well suited for broadcast trucks, field production, studio installations, and other professional AV workflows that demand durability, flexibility, and dependable performance. High-quality HD-BNC and BNC connectors ensure secure connections and long service life in both permanent and temporary deployments.
Key Features
- Cable Construction: Flexible Mini RG-59 12G-SDI cable for field and broadcast use
- Signal Support: Supports 12Gbps uncompressed 4K UHD video transmission
- Shielding Design: Double-shielded foil and braid for superior interference protection
- Connector Configuration: HD-BNC male to BNC female connectors
- Rugged Jacket: Flexible TPE jacket designed for mobile and tactical applications
Technical Specifications
- RG Type: Mini RG-59
- Impedance: 75 Ohms
- Maximum Frequency: DC to 12 GHz
- Velocity of Propagation: 83%
- Inner Conductor Material: Silver plated copper
- Dielectric Material: Foam HDPE
- Jacket Material: TPE
- Bending Radius: 0.55 inches static and flexing
- Operating Temperature: -4 F to 167 F
- Connector Lifetime: 500 mating cycles
