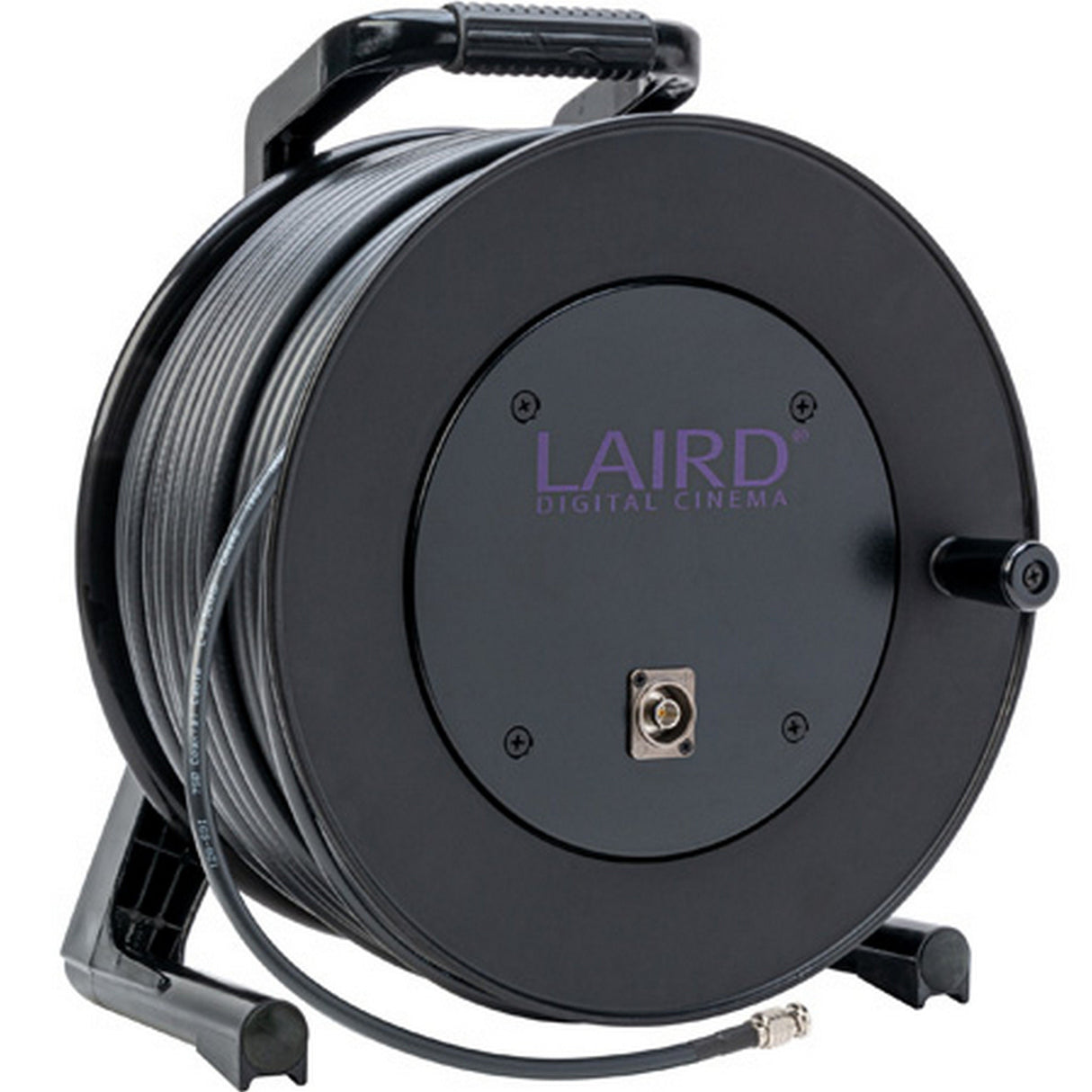

Laird LCR-12G-B-B RG-6 75 Ohm 12G-SDI/4KUHD Single Link BNC Camera Cable on Reel - 250 Foot
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description
Laird LCR-12G-B-B-250 Single Link SDI Camera Cable Reel (250')
Laird LCR-12G-B-B-250 is a video cable assembly designed for broadcast and professional video production environments. It enables high-bandwidth SDI signal transmission for camera systems and video infrastructure, supporting professional acquisition and distribution workflows. This makes it ideal for studio, mobile production, and field deployments where stable signal delivery is critical.
The cable assembly is built using low-loss coaxial construction with layered shielding to support single-link SDI signal transport. It terminates in precision 75 ohm BNC connectors to maintain consistent impedance throughout the signal path. The reel-based design supports controlled deployment and storage in operational environments.
In practical use, the cable supports reliable interconnection between cameras and broadcast equipment across production spaces. It helps maintain consistent signal integrity during setup, teardown, and transport. This supports efficient workflows in environments where repeatable cabling performance is required.
Key Features
- 12G SDI Support: Designed for single-link SDI transmission in high-bandwidth video systems
- Low Loss Coax Construction: Uses layered shielding and foamed insulation to preserve signal quality
- 75 Ohm BNC Termination: Maintains impedance consistency for broadcast video applications
- Reel Mounted Assembly: Supports controlled cable deployment and organized storage
- Broadcast Environment Ready: Suitable for studio, mobile, and field production use
Technical Specifications
SDI ComplianceSMPTE ST-2082-1 Compliant for 12GSDI transmission
Supported SDI Formats
1.5G
3G
6G
12G
Maximum Transmission Distance
Up to 328 ft at 12G
Up to 528 ft at 3G
Cable Construction
Canare 12G-SDI 4K UHD Single Channel BNC Cable
Inner Conductor
Annealed Copper
Outer Conductor
Copper Laminated Tape
Tinned Annealed Copper Braid greater than or equal to 91 percent coverage
Insulation
Foamed Polyethylene
Connector Type
Canare BNC 75 Ohm Crimp Connectors
Connector Return Loss
15 dB at 12 GHz
20 dB at 6 GHz
26 dB at 3 GHz
Connector Design
Gold plated snap lock center pin
Beryllium copper outer contact
