MuxLab 6G-SDI Extender Over Fiber Optic 500732 6G 3G SDI Video Extender Over Fiber Optic Cat5e/6 RJ45 Plug Cable Supports 4K Resolution

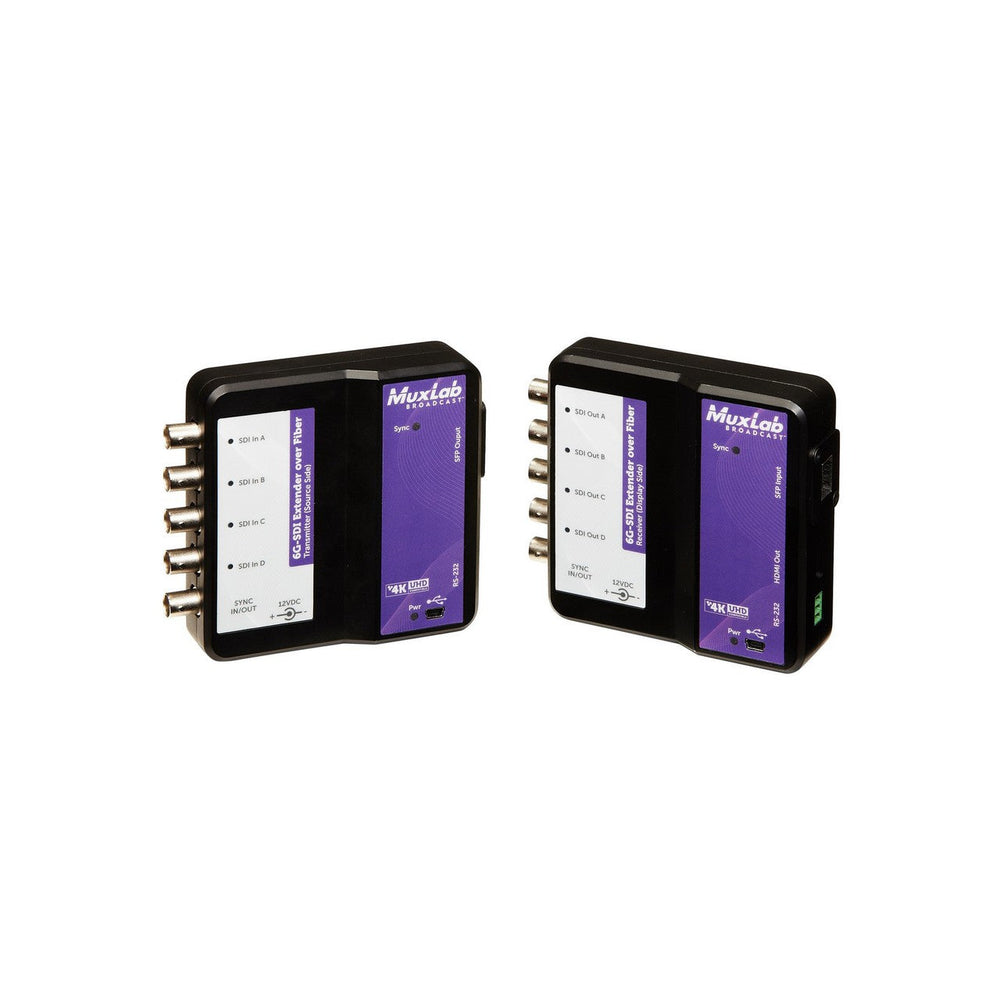

The 6G-SDI Extender over Fiber Optic is a unique solution from MuxLab for extending SDI cameras or other SDI sources in up to 4K resolutions to a distance of up to 985ft (300m) using OM3 fiber, 1300ft (400m) using OM4 fiber, 33,000ft (10km) using single mode fiber model 500732-SM10 and 132,000ft (40km) using single mode fiber model 500732-SM40. This product allows versatile combinations of sources such as one 6G SDI source, two 3G-SDI sources or four HD-SDI sources.

Key Features

• Supported modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
• Supports all 6G channel configurations (1, 2, or 4 BNC)
• Automatic SDI Link recognition and configuration
• USB interface for field upgradable firmware and diagnostics
• Standard SFP+ module for optical fibre interface, or other media
• Aluminum ruggedized enclosures
• Supports RS232 pass through

Technical Specifications

Environment:
6G-SDI, 3G-SDI, HD-SDI digital signal transmission
Serial Interface:
RS232 Serial transmission
Enclosure:
Aluminum casing, approx. 4.3 x 4.3 x 1 (TX and RX)
Color:
Black
Control:
Serial console emulation with USB interface
Front panel (RX):
BNC for SYNC input signal (if required)
4x BNC, SDI output connectors
Rear panel (RX):
SFP+ connector for optical fiber cable interface
Terminal Block for RS232
Top panel (RX):
Mini USB for firmware updates and status LEDs
Side panel (RX):
+12 VDC Locking power jack
Front panel (TX):
BNC for SYNC output signal (if required)
4x BNC SDI input connectors
Rear panel (TX):
SFP+ connector for optical fiber cable interface
Terminal Block for RS232
Top panel (TX):
Mini USB for firmware updates and status LEDs
Side panel (TX):
+12 VDC Locking power jack
Connectors (SDI in):
4 BNC connectors for SDI input (0.8V pp, 75 ohm)
Connectors (SDI out):
4 BNC connectors for SDI output (0.8V pp, 75 ohm)
Connectors (Sync):
1 BNC connector (if required)
Connectors (Control):
Mini USB, for configuration and firmware updates
Connectors (Fiber):
SFP+ Connector for dual optical fiber cable interface
Connectors (Power):
One standard 2.1mm locking Power Jack
Compliance:
FCC, CE, RoHS
Power:
2x 12V DC external power supplies with US, UK and Euro blades
Signal Distance:
OM3 fiber length - 300m (985ft), OM4 fiber length - 400m (1300ft)
Single-mode fiber length - 10km (33,000ft) or 40km (132,000ft)
