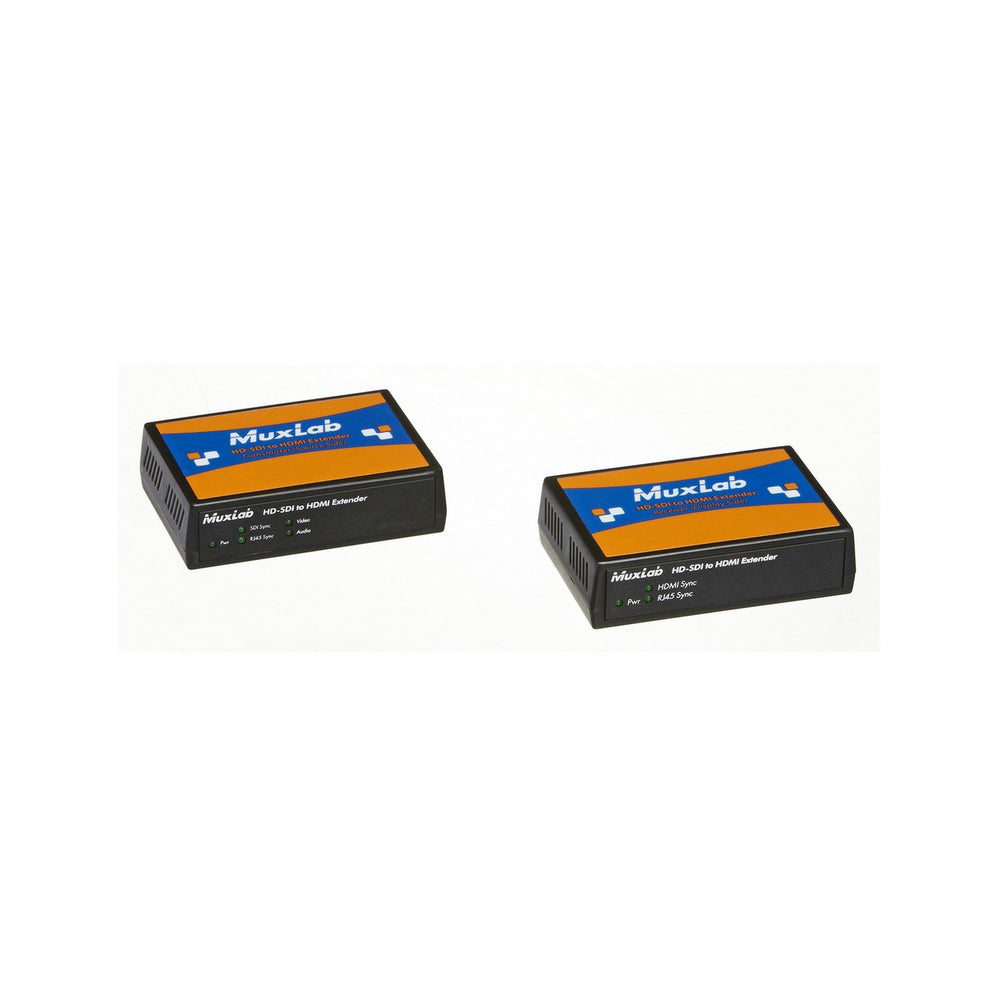

MuxLab LongReach 3G-SDI to HDMI 500716 3G SDI HDMI Long Reach Video Extender Kit Cat5e/6 RJ45 Plug Cable Signal Detect Transmitter and Receiver
The LongReach 3G-SDI to HDMI Extender Kit (model 500716) converts 3G-SDI to HDMI and then transmits it up to 500ft / 150m via single Cat5e/6 cable at all resolutions in a point-to-point configuration (part no: 500716).
Key Features
- Up to 330ft / 100m via Cat5e cable
- Up to 400ft / 122m via Cat6 cable
- Up to 500ft / 150m via Cat5e cable (model 500716)
- Supports SDI-SMPTE 259M-C (270Mbps) HD-SDI-SMPTE 292M (1.485, 1.485/1.001 Gbps) HD-SDI-SMPTE 424M/425M (2.97/3.0 Gbps)
- LED diagnostics: sync, SDI detect
- 2 year manufacturers warranty
Technical Specifications
Environment:
SDI single link: SD, HD & 3G
Devices:
Monitors supporting the original SDI rate only
Standard supported:
SMPTE 259M (270Mb/s), SMPTE 292M & SMPTE 424M
Bit rates:
270Mb/s, 1.485Gb/s & 2.97 Gb/s (automatic selection)
Video format supported:
SD: 525i, 59.94/60Hz & 625i, 50Hz
HD: 720p @ 60Hz, 50Hz, 30Hz, 25Hz & 24Hz
1080i @ 60Hz & 50Hz
1080p @ 30Hz, 25Hz & 24Hz
3G: 1080p @ 60Hz & 50Hz
Sound format supported:
48kHz @ 24 bit, 20 bit & 16 bit
Indicators:
Power
SDI Sync (on rx side only)
RJ45 Sync
Video (on tx side only)
Sound (on tx side only)
HDMI Sync (on rx side only)
Connectors:
One BNC 75 ohm female on source side.
One HDMI on receiver on receiver side
One RJ45S for Cat5e/6 unshielded twisted pair.
One power connector, 2mm
Maximum Distance:
UTP Cat 5e: 500 ft (150 m) UTP Cat 6: 500 ft (150 m) for 500716
Maximum distance applies for all format and speed between boxes. On
SDI side: 450 ft (140m).
On HDMI side: 15 ft (5 m) typical
RJ45 Pin Configuration:
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
Cables (Not Included):
One straight Cat 5e/6 twisted pair cables required.
One 75 ohm coaxial cables with 75 ohm BNC required.
One HDMI cable
Power Supply (Included):
Two 100-240V/5VDC 6W power supplies with interchangeable blades
for NA, Europe and UK
Power Consumption:
Transmitter: 4 Watts Receiver: 6 Watts
Temperature:
Operating: 0Ā° to 40Ā°C Storage: -20Ā° to 85Ā°C Humidity: Up to 95% non-condensing
Enclosure:
6061 Aluminum alloy
Dimensions:
4.50 x 3.00 x 1.25 (11.4 x 7.6 x 3.2 cm)
Weight:
2.5 lb. (1.1 kg)
Warranty:
2 years
