sE Electronics DM3 Active Inline DI
Description
Description
The sE Electronics DM3 Active Inline DI is an active inline DI featuring an Ultra-HiZ input and a remarkably compact design, created to be your reliable companion for optimizing your instruments. Drawing from the well-established DYNAMITE technology found in the DM1 and DM2, the DM3 sets a new standard for active inline DI devices. Its Ultra-HiZ input and dedicated Class-A output buffer amplifier ensure your instrument's unique sound character is preserved with exceptional detail. This versatile device is suitable for a wide range of sources, including vintage electric guitar/bass pickups, piezo-equipped acoustic instruments, high-output sources like keyboards, synthesizers, drum machines, and laptops. With its generous headroom and switchable attenuation pad, the DM3 can handle even the most powerful output, such as a 10,000-watt solid-state power amplifier. The three-position ground lift switch, including a unique “on+” setting, effectively reduces buzz, hum, and unwanted radio interference noise. Equipped with a lockable 1/4” input jack, the DM3 ensures a secure connection in demanding live or recording environments. Crafted with a sturdy all-metal housing and an inline format to save space, the DM3 is more than just a box; it is a compact all-rounder, designed for exceptional sound quality.
Key Features
- Ultra-HiZ input with 10 megaohms of input impedance for preserving instrument sound character
- Massive headroom to accommodate various instruments and sources, including high-output levels

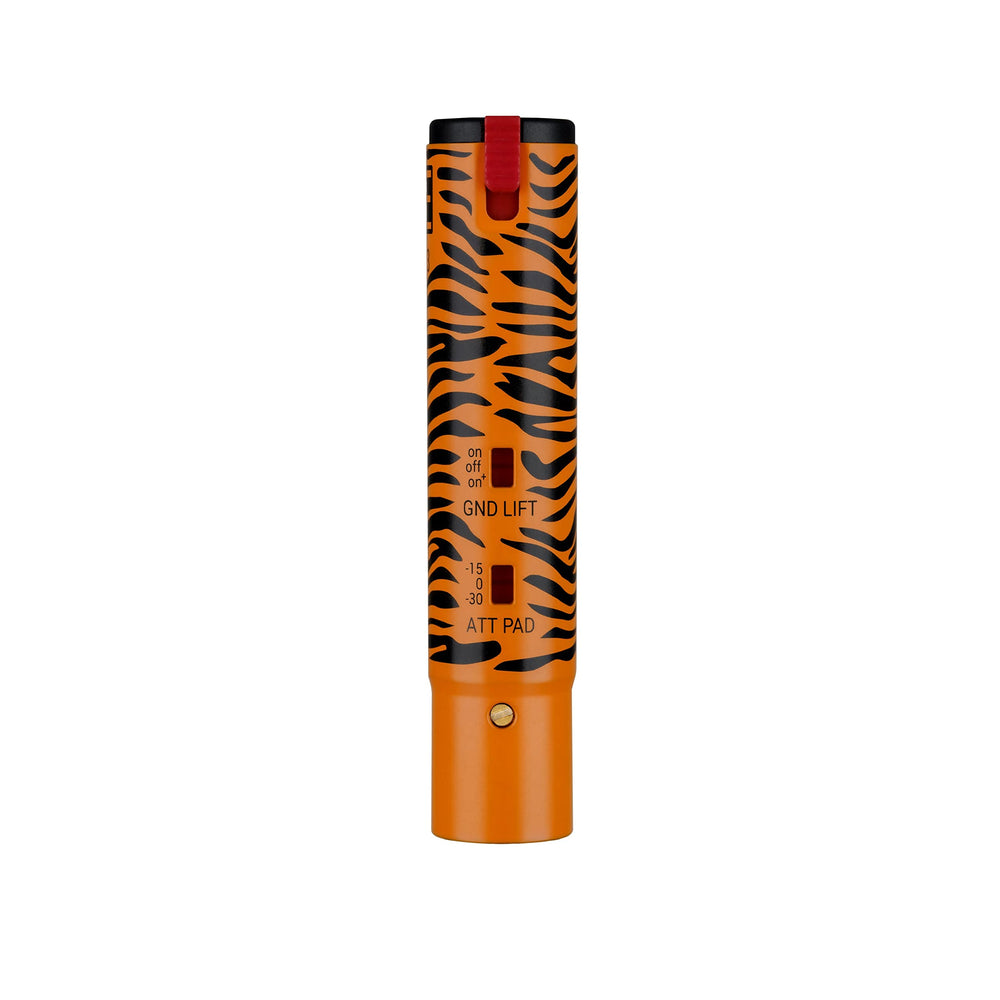

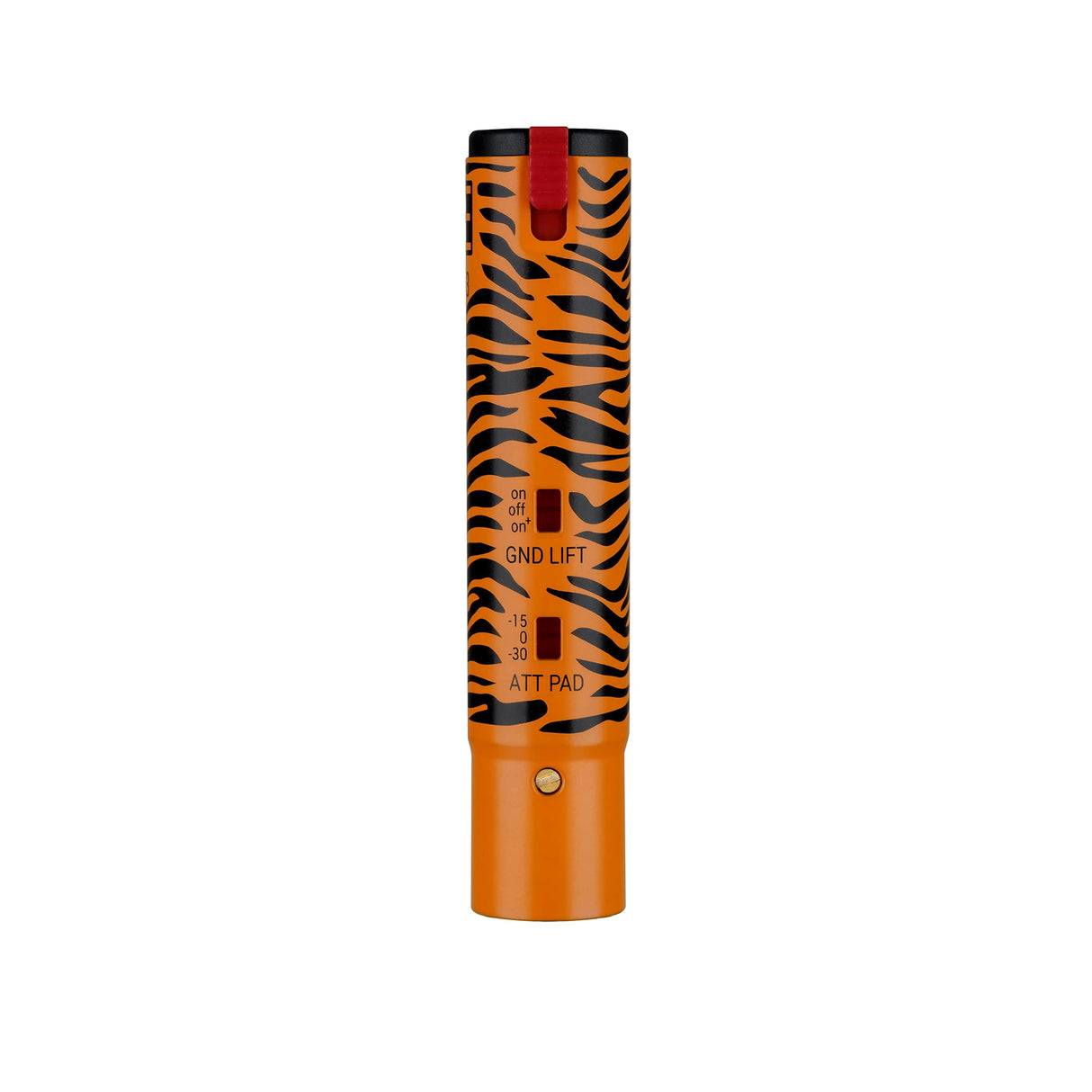

- Three-stage ground lift switch with a unique “on+” setting to reduce unwanted noise effectively
- Lockable 1/4” input jack for a secure connection in fast-paced environments
- Dedicated Class-A output buffer amplifier for clean and consistent signals
Technical Specifications
Power
Electrical Impedance
86 Ohms
Recommended Load Impedance
>1K Ohms
Connectivity
Input: 6.3 mm (1/4 in.) TRS jack
Output: 3-pin male XLR connector
Powering
48V Phantom Power (P48 according to IEC 61938)
Sound
Frequency range
10 Hz - 120 kHz (-0.3 dB)
Current consumption
3.8 mA
Max input level (0.5% THD)
19 / 34 / 49 dBV (9.0 / 51 / 285 V)
Output noise level
1 μV
Dimensions
DI diameter
20 mm (0.79 in.)
DI length
Length: 95.5 mm (3.76 in.)
DI weight
70 g (2.47 oz.)
What's in the box
DM3
Screwdriver
sE 1/4” plug keychain
sE Logo Sticker
User manual with warranty card
