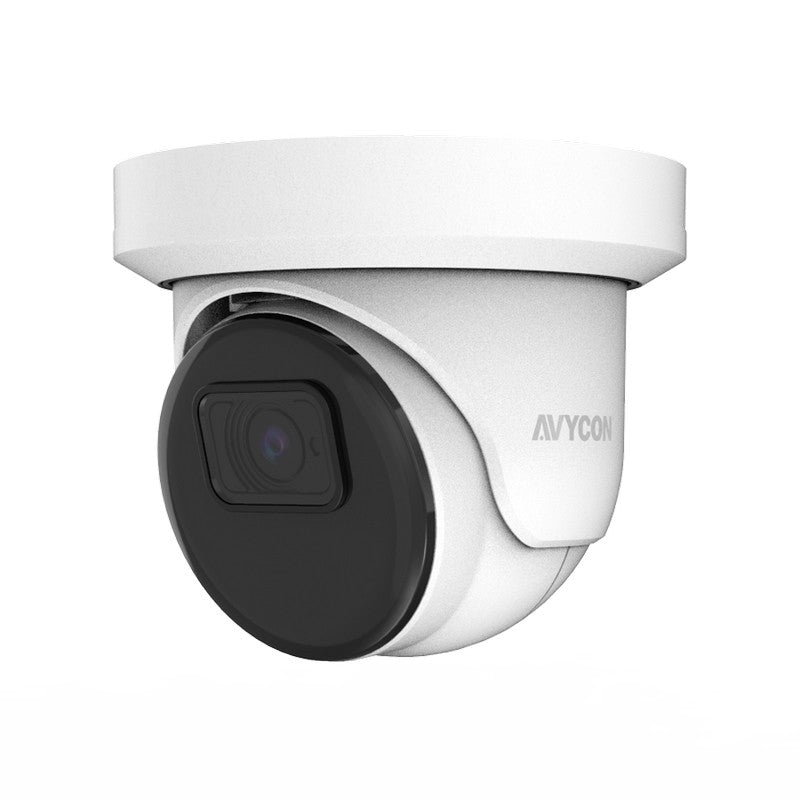

Introducing the AVYCON AVC-NSE81F28 Camera: The Ultimate 8MP Security Solution
Looking for an advanced security camera that covers all the bases? Look no further than the AVYCON AVC-NSE81F28. This 8MP H.265 Fixed Eyeball Network Camera is equipped with True Day and Night mode and PoE, and can provide up to 98ft. of Smart IR Illumination. With its InfiniteStar sensor, it can capture clear video in the lowest of light environments, even in color. Additionally, this camera features a Fixed 2.8mm Lens, Digital NR, ROI, HLC, True WDR, and BLC capabilities. Optional accessories include a Junction Box Mount. You can also use the MicroSD memory card slot for standalone recording applications.

Key Features

• The AVYCON AVC-NSE81F28 camera is a high-resolution 8MP H.265 Fixed Eyeball Network Camera.
• This IP camera supports True Day and Night mode, allowing for clear video footage in both day and night conditions.
• It features Smart IR Illumination, providing up to 98ft. of infrared illumination for enhanced visibility in low-light environments.
• The camera incorporates an InfiniteStar sensor, enabling viewing of video even in extremely low-light conditions, with the added benefit of color visibility.
• It comes with a Fixed 2.8mm Lens, offering a wide field of view for comprehensive coverage.
• The camera includes advanced features such as Digital NR, ROI, HLC, True WDR, and BLC capabilities, ensuring optimal image quality in various lighting conditions.
• It supports Triple Streams, allowing for simultaneous streaming of video in different resolutions and formats.
• The camera offers remote access compatibility with Windows, macOS, iOS, and Android devices, enabling convenient monitoring from anywhere.
• With an IP67 Ingress Protection rating, the camera is resistant to dust and water, making it suitable for outdoor use.
• It operates within a wide temperature range of -22 Degrees F to 131 Degrees F (-30 Degrees C to 55 Degrees C), ensuring reliable performance in extreme weather conditions.
• The camera can be powered through DC12V or PoE (802.3af) and includes a built-in MIC, MicroSD card slot, and reset button for added convenience.
• It is NDAA compliant, meeting the requirements set by the National Defense Authorization Act.

Technical Specifications

CAMERA
Image Sensor
1/2.8” Progressive Scan CMOS
Image Size
3840 x 2160
Shutter Speed
1/5s to 1/20000s
Min. Illumination
Color 0.009lux @ F1.6(AGC ON); B/W 0 lux @ IR ON
IR Distance
Up to 95ft
Lens
2.8mm @ F No. 1.6 Horizontal: 105° Vertical: 56° Diagonal: 126°
Lens Mount
Fixed(M12)
Day & Night
IR cut filter with auto switch (Day/Night/Auto/Image/Schedule)
Wide Dynamic Range
True WDR
Digital NR
Yes
Backlight Compensation (BLC)
Off/On (5 Zone)
Highlight Compensation (HLC)
Yes
Defog
Yes
Gain Control
Auto
White Balance
Auto/Manual/Indoor
Flip/Mirror
Yes
VIDEO IMAGE
Video Compression
Main stream: H.265 / H.264 Sub/third stream: H.264 / H.265 / MJPEG
Resolution
8MP (3840x2160), 5MP (2592x1944,3072x1728), 4MP (2592x1520), 3MP (2304x1296), 1080P(1920x1080), 960P (1280*960), 720P(1280x720), VGA (640x480), QVGA (320x240)
Main Stream
8MP (3840x2160),5MP (2592x1944,3072x1728), 4MP (2592x1520), 3MP (2304x1296), 1080P(1920x1080), 720P(1280x720) @ 30FPS
Sub Stream
1080P(1920x1080), 720P(1280x720), VGA (640x480), QVGA (320x240) @ 30 FPS
Third Stream
VGA (640x480), QVGA (320x240) @ 30 FPS
Video Bit Rate
256Kbps ~ 16Mbps
Image Settings
Day & Night, BLC, WDR, DNR, Privacy Masking, White Balance
ROI
Yes
NETWORK / INTERFACE
Network
RJ45(10/100BASE-T)
Network Protocol
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
Interface Protocol
ONVIF (Profile S/G/T)
Web Browser
Microsoft Edge, Safari, Firefox, Google Chrome
Online Connection
Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission
Security
IP Address Filter; Complicated Password; Authenticated Username and Password
Streaming Method
Unicast / Multicast
Storage
Built-in micro-SD card slot, up to 256GB
Video Output
No
Audio
Built-in microphone
Hardware Reset
Yes
FUNCTIONS
Remote Monitoring
Avycon CMSONE, Avycon Mobile One
Smart Alarm
Motion Detection
Smart Analytics
Face Recognition (FR) Human & Vehicle Detection (PD&VD) Perimeter Intrusion Detection (PID) Line Crossing Detection (LCD) Cross Counting (CC) Stationary Object Detection (SOD) Heat Map (HM) Crowd Density Detection (CD) Queue Length Detection (QD) license Plate Detection (LPD) Rare Sound Detection (RSD)
GENERAL
Power Supply
D12V/POE(IEEE802.3af)
Power Consumption
3.2W-4W / 5W-6.5W (IR On)
Operating Environment
-35~+60°C/less than ≤ 95% RH
Dimensions (in)
3.9” x 2.6” in (Ø100 x 65mm)
Weight (lb)
.91lb (415g)
Ingress Protection
IP67
