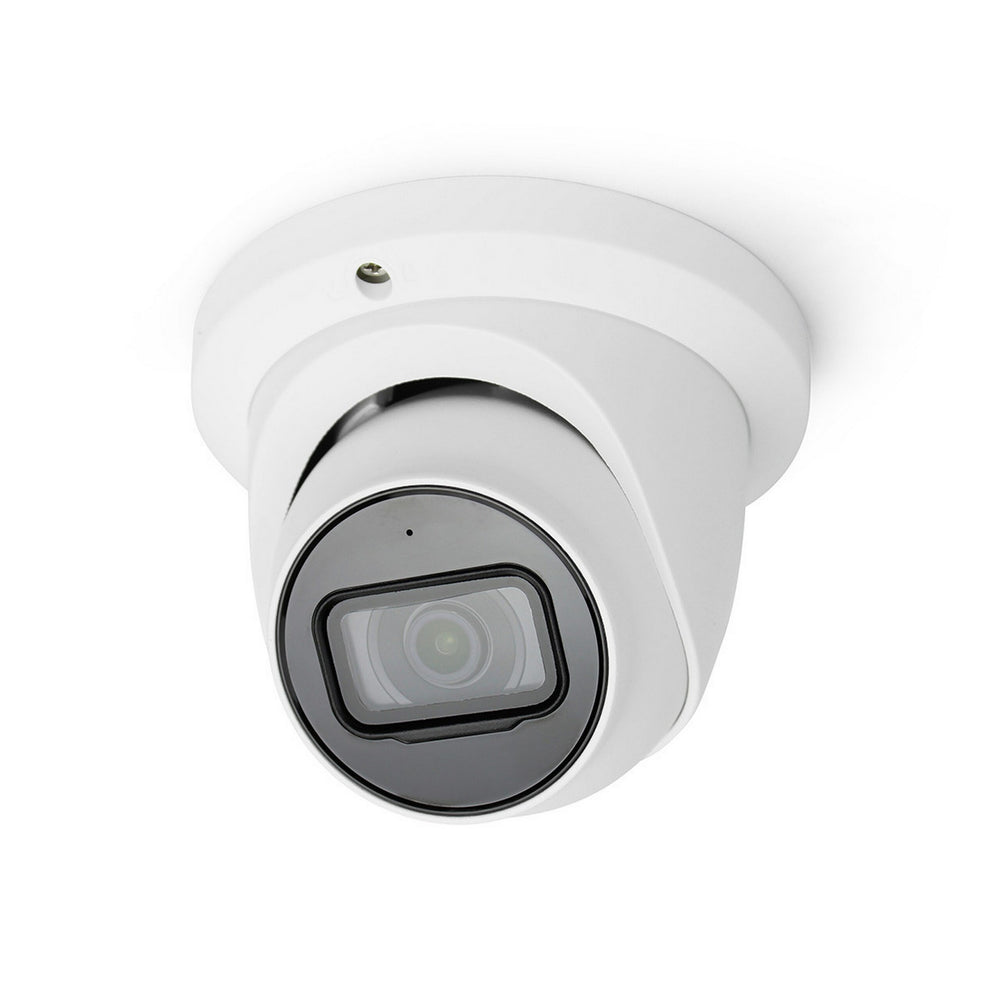

IC Realtime IPEL-E80F-IRW2 8MP IP Indoor/Outdoor Mid-Size Eyeball Dome Camera, White

At first glance, IC Realtime's new IPEL-E80F-IRW2 FlexSmartAi turret dome camera looks like any other conventional camera of its type. But don't be fooled - all the FlexSmartAi magic is happening inside. While the E80F installs as easily as a conventional turret dome IP camera, just like a cartoon dump truck can hide a mighty robot inside, the E80F's rugged aluminum casing conceals IC Realtime's new FlexSmartAi & deep learning algorithms. When combined with IC Realtime's legendary Wide Dynamic Range, highlight & backlight compensation exposure controls, the E80F can provide sharp & useful security video footage with digital watermarking for court-admissible video footage if needed.

All great security video begins with the camera lens & video chip, and the E80F is no exception. Disguised behind the camera's smoked glass front glass, the 8mp (3840 x 2160) low light video sensor and 95 ft. IR illuminators have the pixel density & video superpowers to capture the finest details when they matter most, as in facial recognition & identification cases. IC Realtime's FlexSmartAi systems utilize deep learning algorithms and the E80F's high resolution to enable current & future NVR-based facial recognition & identification systems to work at full capacity.

The E80F shares some attractive family features with its sister FlexSmartAi cameras, like a precision 2.8mm medium wide-angle lens with a 108°h x 58°v Field of View, a pair of SmartIR illuminators for up to 95+ ft. of clear video even in total darkness, and SMART H.265+ video compression. The E80F's superior 8mp clarity works hand in hand with these FlexSmartAi systems to deliver outstanding DORI facial recognition at over 50 ft. and enable NVR based face identification at 25+ feet. FlexSmartAi systems enable the E80F to dependably detect human and vehicle forms by defined IVS “tripwire” rules with high accuracy to eliminate false alarms and trigger only when intrusion is confirmed.

Key Features

• 1/2.8 CMOS Starvis | 8MP | 25/30fps@4K
• 2.8mm | Fixed | AoV 112
• Max. IR Length 98ft | Smart IR | 1 IR LEDs
• Built-In Mic | 256GB MSD | IP67 | 12VDC Or PoE
• IVS | Perimeter Protection | Intelligent Motion Detect
• AGC | 120dB True WDR | HLC | BLC | 3DNR

Specifications

• Image Sensor: 1/2.8”8 Megapixel progressive CMOS
• Effective Pixels: 3840(H) x 2160(V)
• RAM/Rom: 512MB / 128MB
• Scanning System: Progressive
• Minimum Illumination: 0.007 Lux @F1.4
• S/N Ratio: >56 dB
• Illumination Distance: Up to 30 m (98.4 ft)
• Illumination On/Off Control: Auto/Manual
• Illumination LEDs: 1
• IR Wavelength: 850 nm
• Lens Type: Fixed
• Mount Type: Board-in
• Focal Length: 2.8mm
• Max. Aperture: F1.6
• Angle of View: H:108° V:58°
• Focus Control: Fixed
• Close Focus Distance: 1.4 m (4.6 ft)
• DORI - Detect: 280ft
• DORI - Observe: 112ft
• DORI - Recognize: 56ft
• DORI - Identify: 28ft
• IVS Support
• Perimeter Protection: Tripwire; intrusion (supports vehicle and human classification and accurate detection)
• Intelligent Motion Detect (iMD)
• Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
• Streaming Capability: 3 Streams
• Resolution: 8M (3840 x 2160); 6M (3072 x 2048); 5M (3072 x 1728/2592 x 1944); 4M (2688 x 1520); 3M (2048 x 1536/2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)
• Frame Rate: Main Stream: 3840 x 2160 @ (1-20 fps by default)3840 x 2160 @ (1-25/30 fps when AI function disabled) Sub Stream: 704 x 576 @ (1-25 fps)/704 x 480 @ (1-30 fps) Third stream: 1920 x 1080 @ (1-25/30 fps)
• Bit Rate Control: CBR/VBR
• Bit Rate: H.264: 3 kbps-8192 kbps H.265: 3 kbps-8192 kbps
• Day/Night: Auto (ICR) / Color / B/W
• Backlight Compensation: BLC / HLC / WDR (120dB)
• White Balance: Auto/natural/street lamp/outdoor/manual/regional custom
• Gain Control: Auto / Manual
• Noise Reduction: 3D DNR
• Motion Detection: Off / On (4 Zones Rectangular)
• Region of Interest: Off / On (4 Zones)
• Smart IR: Supported
• Flip: 0°/90°/180°/270° (90°/270° only supported at 4MP or less)
• Mirror: Off / On
• Privacy Masking: Off / On (4 Area Rectangle)
• Audio Compression: G.711a; G.711Mu; G726
• Ethernet: RJ-45 (10/100Base-T)
• Protocol: Pv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
• Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P
• Streaming Method: Unicast / Multicast
• Max. User Access: 20 (Total bandwidth: 72 M)
• Edge Storage: FTP; SFTP; Micro SD card (support max. 256 G); NAS
• Web Viewer: IE, Chrome, Firefox, Safari
• Management Software: SmartICRSS, DSS
• Smart Phone: IOS, Android
• Audio I/O: Built-in Mic
• Memory Slot: Micro SD Card 256GB
• Power Supply: 12V DC/PoE (802.3af)
• Power Consumption: Basic power consumption: 2.6W (12V DC); 3.3W (PoE) Max. power consumption (WDR + H.265 + IR LED intensity): 6.9W (12V DC); 7.9W (PoE)
• Operating Conditions: -40°C to +60°C (-40°F to +140°F)/Less than 95% RH
• Ingress Protection: IP67
• Casing: Metal+ Plastic
• Dimensions: 106mm x 93.7mm (4.17in x 3.69in)
• Gross Weight: 770 g (1.7 lb)

Package Contents

• 1 x IC Realtime IPEL-E80F-IRW2 Camera
• 1 x User Manual
• 1 x Mounting Kit
