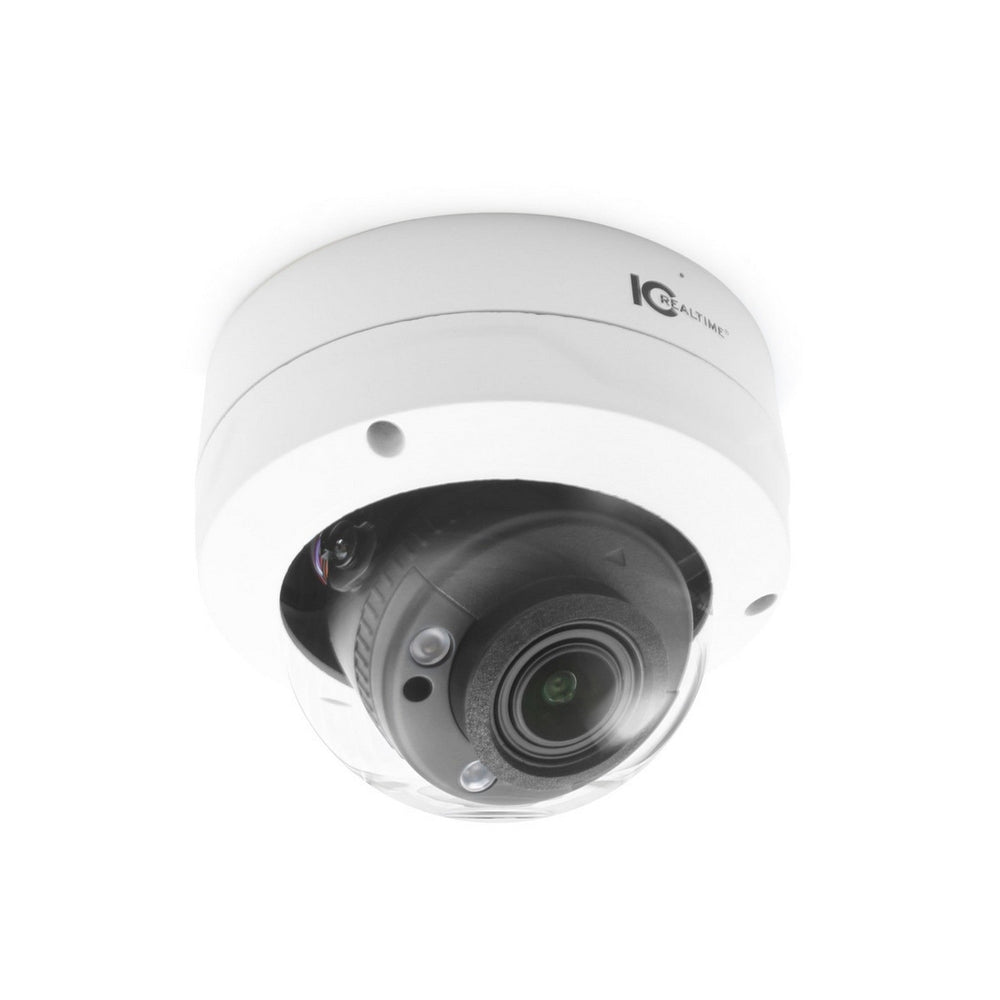

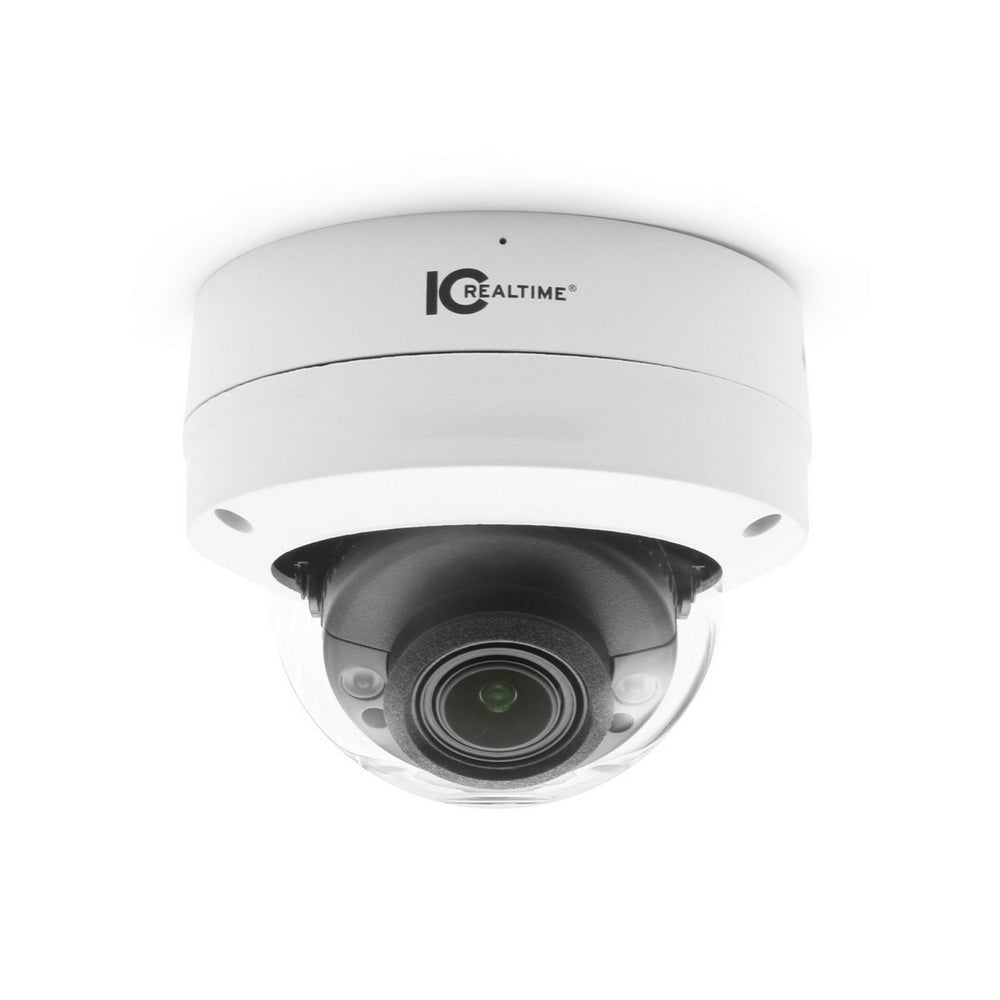

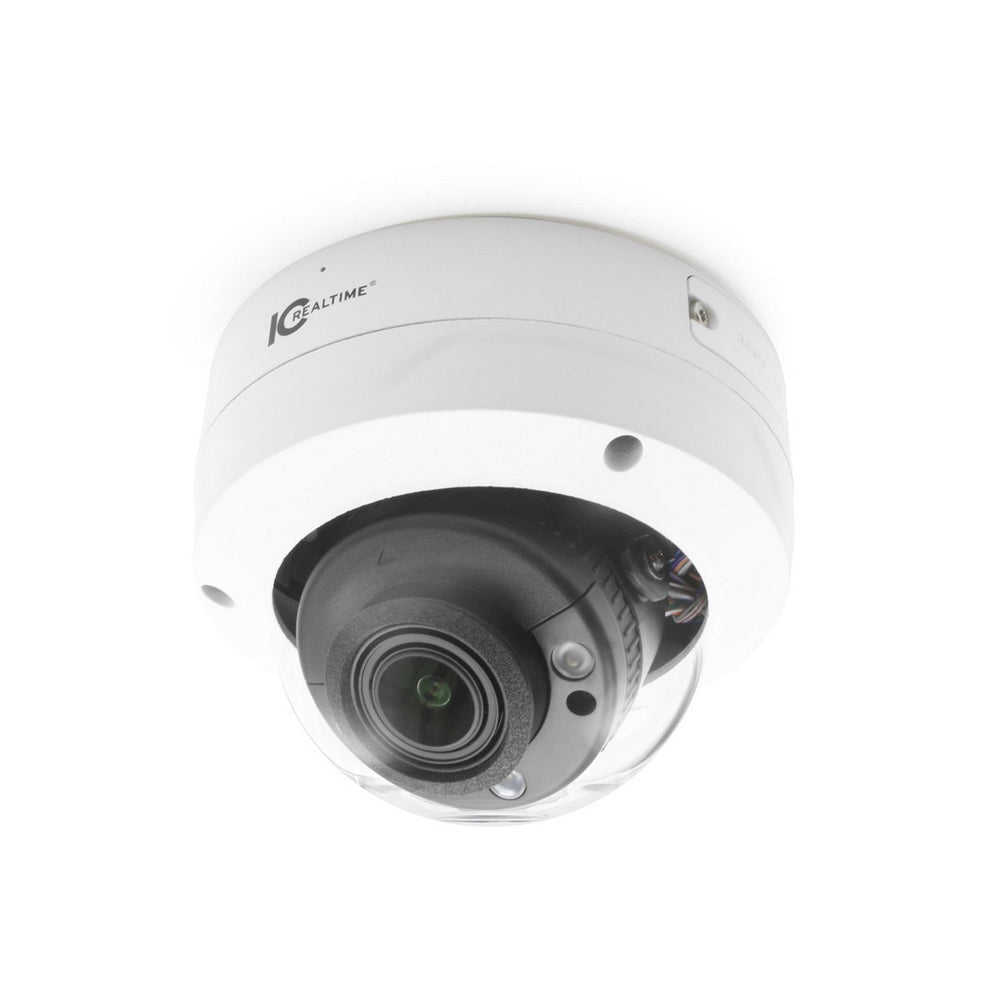

IC Realtime IPFX-D40V-IRW3 4MP IP Indoor/Outdoor Mid-Size Vandal Dome Camera
The IC Realtime IPFX-D40V-IRW3 is a state-of-the-art 4MP vandal dome camera that delivers exceptional video quality and reliability. Designed with both durability and advanced AI features, this camera is perfect for various applications such as schools, retail environments, and other challenging outdoor areas. With its IK10 impact rating and IP67 weatherproof certification, the camera is resilient against harsh conditions, ensuring long-lasting performance.
At the heart of this robust surveillance solution is a powerful 4MP CMOS sensor that captures crystal-clear images, coupled with a motorized varifocal lens for flexible viewing angles. The camera's intelligent motion detection (iMD 2.0) and AI-powered metadata capabilities significantly enhance its surveillance precision. It accurately detects human and vehicle objects, effectively reducing false alarms. Additionally, the built-in audio microphone offers sound detection, adding an extra layer of security.
The IPFX-D40V-IRW3 is designed to integrate seamlessly with IC Realtime's AI-enabled NVRs, offering refined video searches and event extraction. Whether you require high-definition video surveillance or aim to incorporate the camera into a multi-camera VMS system, this model will exceed your expectations.
Key Features
- 4MP QHD Starlight Sensor – Offers full-color video in low-light conditions (down to 0.005 lux) and IR-enhanced grayscale night vision up to 131 feet.
- AI Integration – Intelligent Motion Detection 2.0 for improved accuracy and reduced false alarms.
- Built-in Audio Microphone – Captures audio for enhanced sound detection and analysis.
- Motorized Varifocal Lens – Adjustable 2.7-13.5mm lens providing a flexible 104°–29° horizontal FOV.
- AI-Powered Object Search – Integrates with IC Realtime NVRs for efficient search and event extraction.
- Vandal & Weatherproof – Features IK10 impact resistance and IP67 weatherproofing for reliable performance in harsh conditions.
- H.265 & H.264 Video Compression – Adaptive encoding for reduced bandwidth usage and cost-effective storage.
Specifications
- Camera Image Sensor: 1/2.9" 4 Megapixel progressive CMOS
- Effective Pixels: 2688(H) x 1520(V)
- RAM/Rom: 128MB/512MB
- Scanning System: Progressive
- Minimum Illumination: 0.005 lux@F1.5 (Color, 30 IRE); 0.0005 lux@F1.5 (B/W, 30 IRE); 0 lux (Illuminator on)
- Illumination Distance: Up to 131 ft (40 m)
- Illumination LEDs: 3
- Illumination Type: IR
- Lens Type: Motorized vari-focal
- Mount Type: φ14
- Focal Length: 2.7mm~13.5mm
- Max. Aperture: F1.5
- Angle of View: Horizontal: 104°–29°, Vertical: 54°–16°
- Close Focus Distance: 2.6 ft (0.8 m)
- DORI - Detect: 210–688ft
- DORI - Observe: 84–275ft
- DORI - Recognize: 42–137ft
- DORI - Identify: 21–68ft
- Intelligent Features: Tripwire; Intrusion; Perimeter Protection
- Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (sub stream)
- Streaming Capability: 3 Streams
- Resolution: 4M (2688 × 1520), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
- Frame Rate: Main Stream (2688 × 1520@1–25/30 fps); Sub Stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps); Third Stream: 1920 × 1080 @ (1–25/30 fps)
- Bit Rate Control: CBR/VBR
- Audio Compression: G.711a; G.711Mu; PCM; G.726; G.723
- Ethernet: RJ-45 (10/100Base-T)
- Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
- Max. User Access: 20 (Total bandwidth: 64 M)
- Edge Storage: FTP; SFTP; Micro SD card (max. 256G); NAS
- Power Supply: DC12V, PoE (802.3af)
- Power Consumption: 2.8 W (12 VDC); 3.6 W (PoE)
- Operating Conditions: -22°F ~ +140°F (-30°C ~ +60°C) < 95% RH
- Ingress Protection: IP67
- Vandal Resistance: IK10
- Dimensions: 3.7" × Φ4.8" (94 mm × Φ122 mm)
- Gross Weight: 2.17 lbs (986 g)
Package Contents
- IC Realtime IPFX-D40V-IRW3 4MP IP Indoor/Outdoor Mid-Size Vandal Dome Camera
