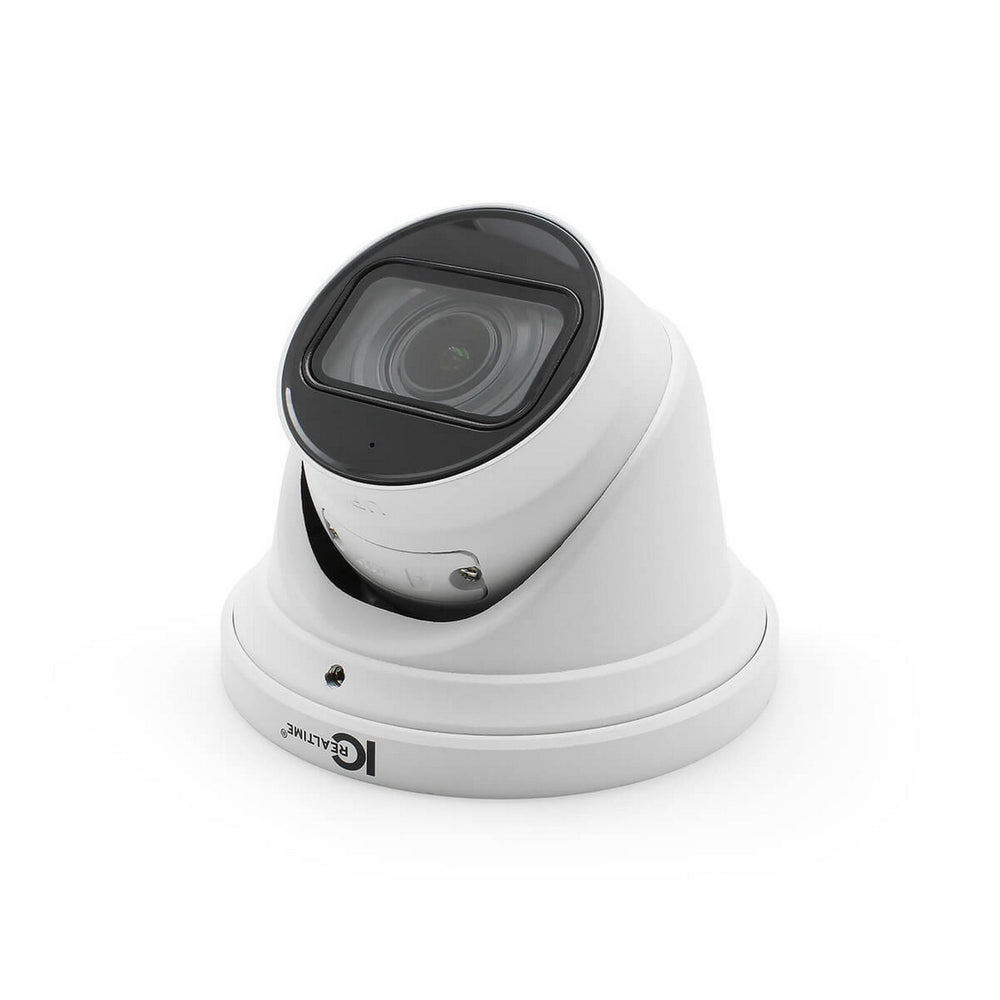

IC Realtime IPFX-E20V-IRW1 2MP IP Indoor/Outdoor Small Size Starlight Eyeball Dome Camera

Introducing the IC Realtime IPFX-E20V-IRW1, a cutting-edge 2MP IP indoor/outdoor small size Starlight eyeball dome camera designed to offer unparalleled security and video quality. This power zoom 1080p FlexSmartAi turret dome camera not only brings innovation but also maintains cost-effectiveness. With its IP67 weatherproof rating and durable full-metal build, this camera serves as the perfect option for various security needs. Whether you are upgrading an existing system or deploying a new one, the IPFX-E20V-IRW1 is your next go-to choice.

The E20V incorporates advanced FlexSmartAi features, enhancing its human recognition for more reliable intrusion and tripwire functionalities. Its built-in microphone serves multiple purposes, including sound detection as part of the FlexSmartAi detection system. This makes the E20V a future-proof installation, as it seamlessly integrates with AI-based NVR functions.

Furthermore, this camera promises high-quality video streaming with super-sharp detail, thanks to its power zoom 2.7mm-13.5mm auto-focus lens. The E20V also includes Smart IR technology, enabling up to 130+ feet of vision in complete darkness. It boasts various advanced exposure control systems such as 120dB WDR and 3D Digital Noise Reduction, making it an exemplary choice for any security requirement.

Key Features

• 1/2.8 CMOS | 2MP | 30fps@2MP
• 2.7-13.5mm | Varifocal| AoV 108-28
• Max. IR Length 131ft | Smart IR | Starlight
• Perimeter Protection | Intelligent Motion Detect
• Built-In Mic | 256GB MSD | IP67 | 12VDC Or PoE
• Made In South Korea and Conforms to The Trade Agreements Act (TAA)

Specifications

• Image Sensor: 1/2.8'' 2 Megapixel progressive CMOS
• Effective Pixels: 1920(H) x 1080(V)
• RAM/ROM: 128MB/ 256MB
• Scanning System: Progressive
• Minimum Illumination: 0.002 Lux@F1.6
• Illumination Distance: 40 m (131.2 ft)
• Illumination On/Off Control: Auto/Manual
• Illumination LEDs: 2
• IR Wavelength: 850 nm
• Camera Illumination Type: IR
• Lens Type: Motorized vari-focal
• Mount Type: φ14
• Focal Length: 2.7 mm-13.5 mm
• Max. Aperture: F1.5
• Angle of View: Horizontal: 108 Degrees - 28 Degrees, Vertical: 57 Degrees - 16 Degrees
• Close Focus Distance: 0.8 m (2.6 ft)
• DORI - Detect: 144ft- 502ft
• DORI - Observe: 57ft- 200ft
• DORI - Recognize: 28ft- 82ft
• DORI - Identify: 14ft - 50ft
• IVS: Support
• Advanced Intelligent Functions: Intelligent Motion Detect (iMD), Perimeter Protection: Tripwire; intrusion (Recognition of human and vehicle)
• Compression: H.265; H.264; H.264H; H.264B; MJPEG (Sub stream only)
• Streaming Capability: 3 Streams
• Resolution: 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 /352 x 240)
• Frame Rate: Main stream (1920 x 1080@1-25/30 fps) sub stream (704 x 576@1-25 fps/704 x 480@1-30 fps) third stream (1280 x 720@1-25/30 fps)
• Bit Rate Control: CBR/VBR
• Bit Rate: H.264: 3 Kbps-8192 Kbps, H.265: 3 Kbps-8192 Kbps
• Day/Night: Auto (ICR) / Color / B/W
• Backlight Compensation: BLC / HLC / WDR (120dB)
• White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
• Gain Control: Auto / Manual
• Noise Reduction: 3D DNR
• Motion Detection: Off / On (4 Zones Rectangular)
• Region of Interest: Off / On (4 Zones)
• Smart IR: Supported
• Digital Zoom: 16x
• Flip: 0 Degrees /90 Degrees /180 Degrees /270 Degrees
• Mirror: Off / On
• Privacy Masking: Up to 4 areas
• Audio Compression: G.711a; G.711Mu; G726; AAC
• Ethernet: RJ-45 (10/100Base-T)
• Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
• Interoperability: ONVIF (Profile S/Profile G); CGI; P2P
• Streaming Method: Unicast / Multicast
• Max. User Access: 20 Users
• Edge Storage: FTP; SFTP; Micro SD Card (support max. 256 G); NAS
• Web Viewer: IE, Chrome, Firefox, Safari
• Management Software: Smart ICRSS, DSS
• Smart Phone: iOS, Android
• Audio I/O: Built-in Microphone
• Memory Slot: 256GB Micro SD
• Power Supply: DC12V PoE (802.3af) (Class 0)
• Power Consumption: <7.8W
• Operating Conditions: -30 Degrees C to +60 Degrees C (-22 Degrees F to +140 Degrees F)/Less than 95% RH
• Ingress Protection: IP67
• Casing: Metal
• Dimensions: 108.3 mm x 122 mm (4.3” x 4.8”)
• Gross Weight: 828 g (1.8 lb)
• Mounting Pan/Tilt/Rotation: Horizontal: 0 Degrees -360 Degrees; vertical: 0 Degrees -78 Degrees; rotation: 0 Degrees -360 Degrees

Package Contents

• IC Realtime IPFX-E20V-IRW1 Camera
• Documentation
