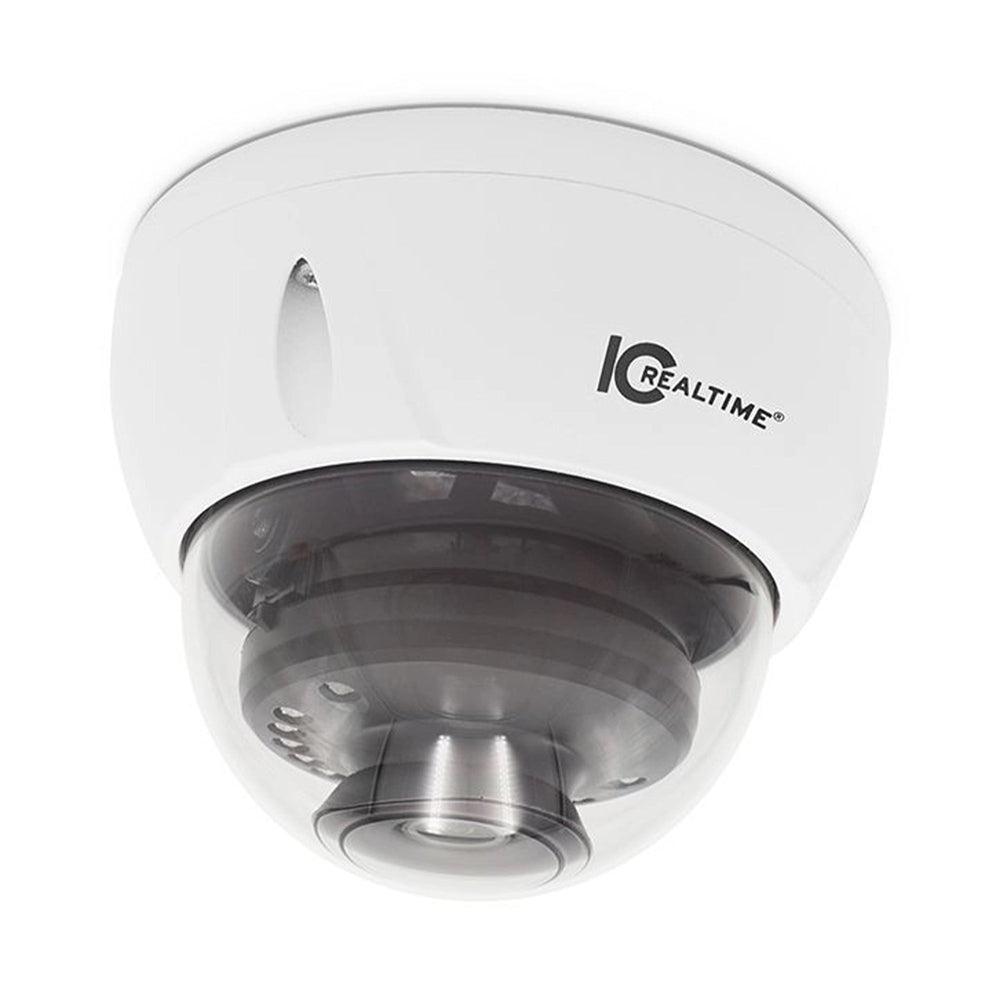

IC Realtime IPMX-D40F-IRW2 4 Megapixel IP Indoor/Outdoor Small Size Vandal Dome Camera

The IC Realtime IPMX-D40F-IRW2 is a highly advanced small form factor dome camera, perfect for both indoor and outdoor surveillance. It features a cutting-edge 1/3” CMOS sensor that delivers stunning 4 Megapixel (2688x1520) video quality at up to 30 frames per second, ensuring crystal clear footage. This camera supports H.265 encoding, which significantly reduces bandwidth and storage requirements without compromising video quality. Its compact design makes it ideal for a variety of installations where aesthetics and space are considerations.

This dome camera is equipped with a 2.8mm fixed lens, accompanied by Starlight technology-supported IR LEDs that can illuminate areas up to 164 feet away, ensuring that you never miss a detail even in complete darkness. Its robust 120 dB dynamic range categorizes it as a ‘True WDR’ camera, capable of delivering high-quality images despite challenging lighting conditions. With features like Intelligent Motion Detection (IMD) and Intelligent Video Surveillance (IVS) support, this camera offers advanced security capabilities.

Durability is another strong suit of the IPMX-D40F-IRW2. The camera boasts an IP67 and IK10 rating, making it water and vandal-resistant. These features, combined with its ability to be powered by either 12VDC or PoE, make it a versatile and reliable choice for a comprehensive surveillance setup.

Key Features

• 1/3 CMOS sensor with 4MP resolution at 30fps
• 2.8mm fixed lens
• Starlight technology with IR LEDs for illumination up to 164 feet
• 120 dB True WDR
• H.265 encoding support
• IMD and IVS support
• Audio in/out and alarm in/out capabilities
• 128GB MicroSD card support
• IP67 and IK10 rated for water and vandal resistance
• Supports both 12VDC and PoE power options

Specifications

• Image Sensor: 1/3” 4 Megapixel progressive scan CMOS
• Effective Pixels: 2688(H) x 1520(V)
• RAM/ROM: 128MB/512MB
• Minimum Illumination: 0.005 Lux@F1.6
• S/N Ratio: More than 50dB
• IR Distance: Up to 164 feet (50 meters)
• IR LEDs: 18
• Lens Type: Fixed
• Mount Type: Board-in
• Focal Length: 2.8mm
• Max. Aperture: F1.6
• Angle of View: Horizontal: 103°, Vertical: 55°, Diagonal: 122°
• Close Focus Distance: 0.9m
• Compression: H.265, H.264, H.264H, H.264B, MJPEG
• Streaming Capability: 3 streams
• Resolution: Up to 4M (2688 x 1520)
• Frame Rate: Main Stream: 4M(1-25/30fps); Sub Stream: D1(1-25/30fps); Third Stream: 720P(1-25/30fps)
• Bit Rate Control: CBR/VBR
• Bit Rate: H.264: 24K - 10240Kbps, H.265: 14K - 9984Kbps
• Day/Night: Auto(ICR) / Color / B/W
• Backlight Compensation: BLC / HLC / WDR(120dB)
• White Balance: Auto/Natural/Street Lamp/Outdoor/Manual
• Gain Control: Auto/Manual
• Noise Reduction: 3D DNR
• Motion Detection: Off/On (4 Zones)
• Region of Interest: Off/On (4 Zones)
• Smart IR: Supported
• Digital Zoom: 16X
• Flip: 0/90/180/270
• Mirror: Off/On
• Privacy Masking: Off/On (4 Rectangular Areas)
• Construction: Metal
• Dimensions: 109.9mm x 81mm (4.33in x 3.19in)
• Gross Weight: 523g (1.2lb)

Package Contents

• IC Realtime IPMX-D40F-IRW2 Dome Camera
