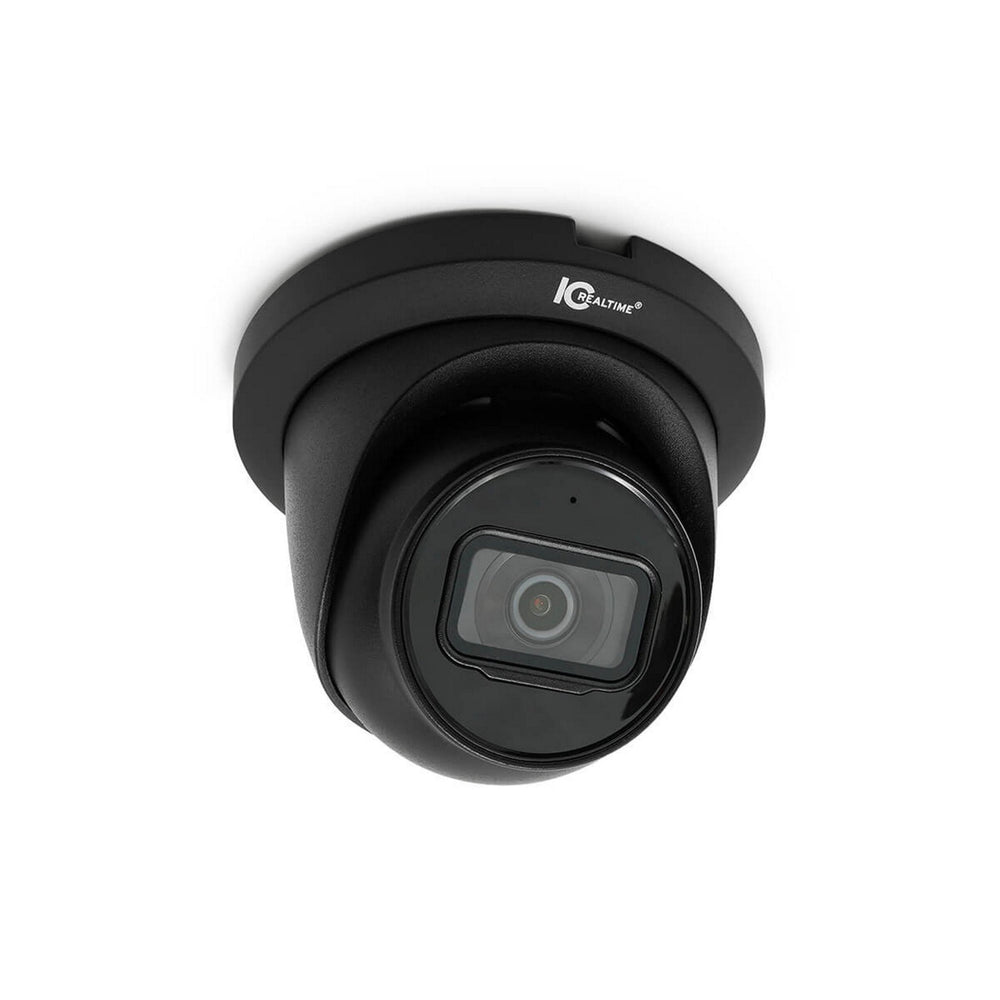

IC Realtime IPMX-E20F-IRB2 2MP IP Indoor/Outdoor Small Size Starlight Eyeball Dome Camera, Black

Looking for a sleek and efficient alternative to the typical white commercial security cameras? The IC Realtime IPMX-E20F-IRB2 Starlight Eyeball Dome Camera in black fits elegantly into any residential or commercial setup. This model is part of IC Realtime's Max Series, which features cameras available in both 4MP and 2MP starlight technology variants to meet various security needs.

The camera boasts an ingress protection rating of IP67, making it one of the most reliable choices for weather resistance and waterproofing when installed correctly. Whether you're monitoring a commercial space or your home, its wide-angle 2.8mm fixed lens and built-in microphone ensure clear surveillance even in complete darkness up to 164 feet. This camera's advanced starlight technology allows it to maintain color video for a longer duration in low-light situations, outperforming traditional security cameras.

True Wide Dynamic Range (WDR) and Smart IR technology significantly enhance image quality regardless of lighting conditions, day or night. Unlike standard night vision cameras, this model can adjust IR intensity to avoid ghosting issues. Plus, true high definition ensures bright and vivid images during the daytime. Its perimeter protection minimizes false alarms, focusing on detecting human and vehicle activities accurately.

Key Features

• 1/2.8 CMOS | 2MP | 30fps@2MP
• 2.8mm | Fixed | AoV 106 | IP67
• Max. IR Length 164ft | Smart IR | Starlight
• Built-In Mic | 256GB MSD | 120dB True WDR
• Intelligent Motion Detect | Perimeter Protection
• Made In South Korea and Conforms to The Trade Agreements Act (TAA)

Specifications

• Image Sensor: 1/2.8” 2 Megapixel progressive CMOS
• Effective Pixels: 1920(H) x 1080(V)
• RAM/Rom: 128MB/ 256MB
• Scanning System: Progressive
• Minimum Illumination: 0.002 Lux@F1.6
• Illumination Distance: 50 m (164.0 ft)
• Illumination On/Off Control: Auto/Manual
• Illumination LEDs: 2
• IR Wavelength: 850 nm
• Lens Type: Fixed
• Mount Type: Board-in
• Focal Length: 2.8mm
• Max. Aperture: F1.6
• Angle of View: H: 106 degrees V: 57 degrees
• Focus Control: Fixed
• DORI - Detect: 126ft
• DORI - Observe: 50ft
• DORI - Recognize: 25ft
• DORI - Identify: 12ft
• IVS: Perimeter Protection - Tripwire; intrusion (Recognition of human and vehicle)
• Advanced Intelligent Functions: Intelligent Motion Detect
• Compression: H.265; H.264; H.264H; H.264B; MJPEG (Sub stream only)
• Streaming Capability: 3 Streams
• Resolution: 1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 x 720) / D1 (704 x 576 / 704 x 480) / VGA (640 x 480) / CIF (352 x 288 /352 x 240)
• Frame Rate: Main stream (1920 x 1080@1-25/30 fps) sub stream (704 x 576@1-25 fps/704 x 480@1-30 fps) third stream (1280 x 720@1-25/30 fps)
• Bit Rate Control: CBR/VBR
• Bit Rate: H.264: 3 Kbps-8192 Kbps, H.265: 3 Kbps-8192 Kbps
• Day/Night: Auto (ICR) / Color / B/W
• Backlight Compensation: BLC / HLC / WDR (120dB)
• White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
• Gain Control: Auto / Manual
• Noise Reduction: 3D DNR
• Motion Detection: Off / On (4 Zones Rectangular)
• Region of Interest: Off / On (4 Zones)
• Smart IR: Supported
• Digital Zoom: 16x
• Flip: 0 Degrees /90 Degrees /180 Degrees /270 Degrees
• Mirror: Off / On
• Privacy Masking: Up to 4 areas
• Audio Compression: G.711a; G.711Mu; G726; AAC
• Ethernet: RJ-45 (10/100Base-T)
• Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
• Interoperability: ONVIF (Profile S/Profile G); CGI; P2P
• Compatibility: ONVIF / PSIA / CGI
• Streaming Method: Unicast / Multicast
• Max. User Access: 20 Users
• Edge Storage: FTP; SFTP; Micro SD Card (support max. 256 G); NAS
• Web Viewer: IE, Chrome, Firefox, Safari
• Management Software: Smart ICRSS, DSS
• Smart Phone: iOS, Android
• Audio I/O: Built-in MIC
• Memory Slot: 256GB Micro SD
• Power Supply: DC12V PoE (802.3af) (Class 0)
• Power Consumption: < 7.7W
• Operating Conditions: -40 Degrees C to +60 Degrees C (-40 Degrees F to +140 Degrees F) / less than 95%
• Ingress Protection: IP67
• Casing: Metal
• Dimensions: 99.1 mm x 121.9 mm (3.9 x 4.8 inches)
• Gross Weight: 660 g (1.45 lb)
• Mounting Pan/Tilt/Rotation: Horizontal: 0 Degrees -360 Degrees; vertical: 0 Degrees -78 Degrees; rotation: 0 Degrees -360 Degrees

Package Contents

• IC Realtime IPMX-E20F-IRB2 2MP IP Indoor/Outdoor Small Size Starlight Eyeball Dome Camera, Black
