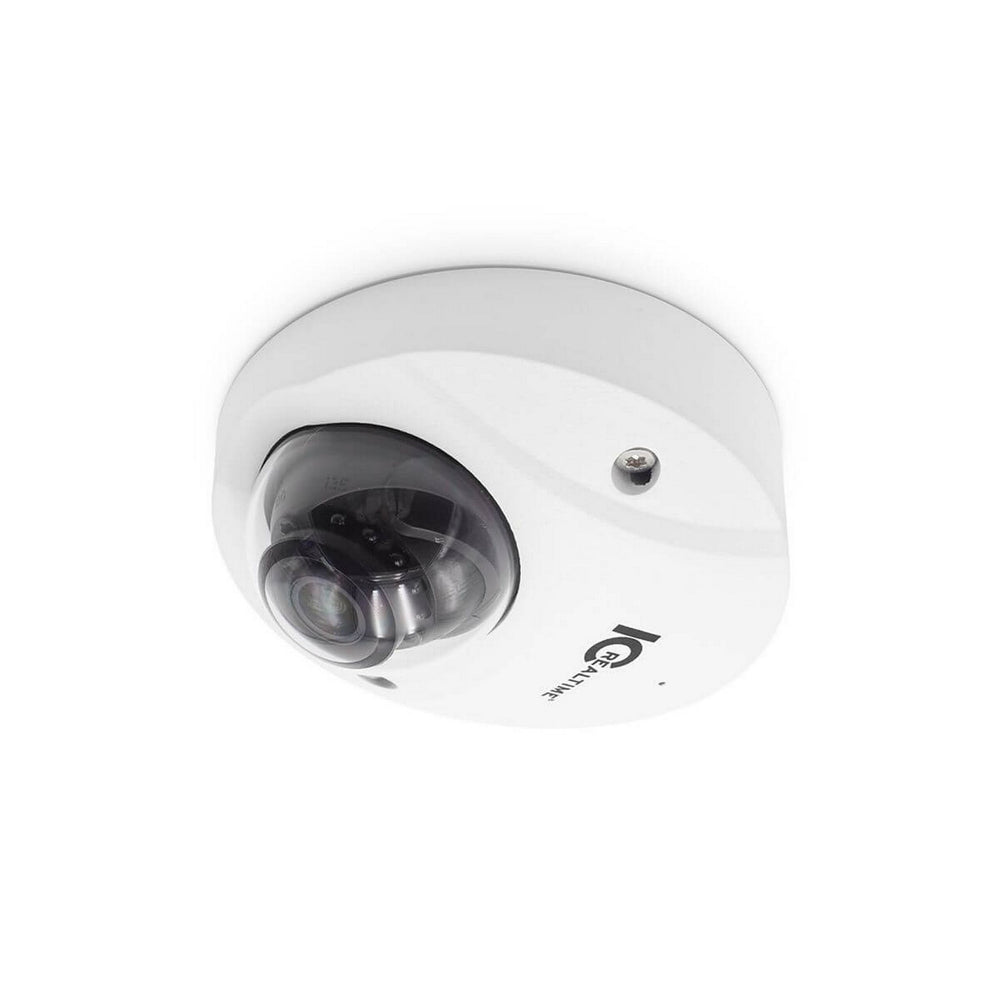

IC Realtime IPMX-W40F-IRW2 4MP IP Indoor/Outdoor Small Size Vandal Dome Camera, White

The IC Realtime IPMX-W40F-IRW2 Vandal Dome Camera is an exceptional choice for anyone looking to enhance their security system. Designed for both indoor and outdoor use, this compact camera fits seamlessly into tight spots, delivering high-quality surveillance without compromising aesthetics. The modern wedge design not only saves space but also enhances the look and feel of any environment, making it a top choice for homeowners and business owners alike.

This 4MP Starlight camera is equipped with advanced AI features that excel in human and vehicle detection, providing clear and vivid images regardless of lighting conditions. True Wide Dynamic Range (WDR) paired with Smart IR and Starlight technology ensures that you receive sharper, cleaner images both day and night. If superior quality and advanced functionalities are what you seek, this IP camera will meet your expectations.

The IC Realtime IPMX-W40F-IRW2 comes with a built-in microphone for audio recording and supports up to 256GB of SD card storage, allowing for extensive data retention. The camera can achieve a full 30 frames per second at 4MP resolution and offers extraordinary night vision capabilities up to 164 feet. With features like IK10 vandal resistance and IP67 weather resistance, this camera is designed to withstand harsh conditions and provide reliable security.

Key Features

• 1/3 CMOS, 4MP, 30fps@4MP
• 2.8mm Fixed Lens with 103-degree AoV
• Maximum IR Length of 164ft with Starlight and 8 IR LEDs
• Built-In Microphone, supports 256GB MicroSD
• IP67 and IK10 protection, 12VDC or PoE with Max. 5.7W power consumption
• Made in South Korea, Trade Agreements Act compliant

Specifications

• Image Sensor: 1/3 4 Megapixel progressive scan CMOS
• Effective Pixels: 2688(H) x 1520(V)
• RAM/ROM: 128MB / 512MB
• Scanning System: Progressive
• Minimum Illumination: 0.005 Lux@F1.6
• S/N Ratio: > 56 dB
• Illumination Distance: 164.0 ft (50 m)
• Illumination On/Off Control: Auto/Manual
• Illumination LEDs: 8, IR Wavelength: 850 nm
• Lens Type: Fixed, Mount Type: Board-in, Focal Length: 2.8mm
• Max. Aperture: F1.6
• Angle of View: H: 103 degrees V: 55 degrees
• Focus Control: Fixed
• DORI - Detect: 183ft, Observe: 73ft, Recognize: 36ft, Identify: 18ft
• IVS: Supports advanced intelligent functions
• Intelligent Motion Detect (iMD)
• Video Compression: H.265, H.264, H.264H, H.264B, MJPEG
• Streaming Capability: 3 Streams
• Resolution: 4M (2688 x 1520), 3M, 1080P, 1.3M, 720P, D1, VGA, CIF
• Frame Rate: Main Stream (2688 x 1520@1-25/30 fps); Sub Stream: (704 x 576@1-25 fps/704 x 480@1-30 fps); Third Stream: (1280 x 720@1-25/30 fps)
• Bit Rate Control: CBR/VBR
• Bit Rate: H.264: 3 Kbps-8192 Kbps; H.265: 3 Kbps-8192 Kbps
• Day/Night: Auto (ICR) / Color / B/W
• Backlight Compensation: BLC / HLC / WDR (120dB)
• White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
• Gain Control: Auto / Manual
• Noise Reduction: 3D DNR
• Motion Detection: Intelligent Motion Detect
• Region of Interest: Off / On (4 Zones)
• Smart IR: Supported
• Flip: 0 Degrees/90 Degrees/180 Degrees/270 Degrees
• Mirror: Off / On
• Audio Compression: G.711a, G.711Mu, G726, AAC
• Ethernet: RJ-45 (10/100Base-T)
• Protocol: HTTP / HTTPs / TCP / ARP / RTSP / RTP / UDP / SMTP / FTP / DHCP / DNS / DDNS / PPPOE / IPv4 / IPv6 / QoS / UPnP / NTP / Bonjour / 802.1x / Multicast / ICMP / IGMP / SNMP
• Interoperability: ONVIF (Profile S/Profile G), CGI, P2P, Milestone
• Streaming Method: Unicast / Multicast
• Max. User Access: 20 (Total bandwidth: 64 M)
• Edge Storage: NAS, Local PC for instant recording, Micro SD card 256GB
• Web Viewer: IE, Chrome, Firefox, Safari
• Management Software: SmartICRSS, DSS
• Audio I/O: Built-in Mic
• Memory Slot: 256GB
• Power Supply: DC12V, PoE (802.3af)
• Power Consumption: < 5.7W
• Operating Conditions: -40 Degrees F to +140 Degrees F (-40 Degrees C to +60 Degrees C)/less than 95%
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Casing: Metal
• Dimensions: 2.2” x 4.3” (55 mm x 108.9 mm)
• Gross Weight: 1.1 lb (520 g)
• Mounting Pan/Tilt/Rotation: Pan: -30 Degrees-30 Degrees; Tilt: 0 Degrees-80 Degrees; Rotation: 0 Degrees to 360 Degrees

Package Contents

• IC Realtime IPMX-W40F-IRW2 Camera
• User Manual
• Mounting Accessories
