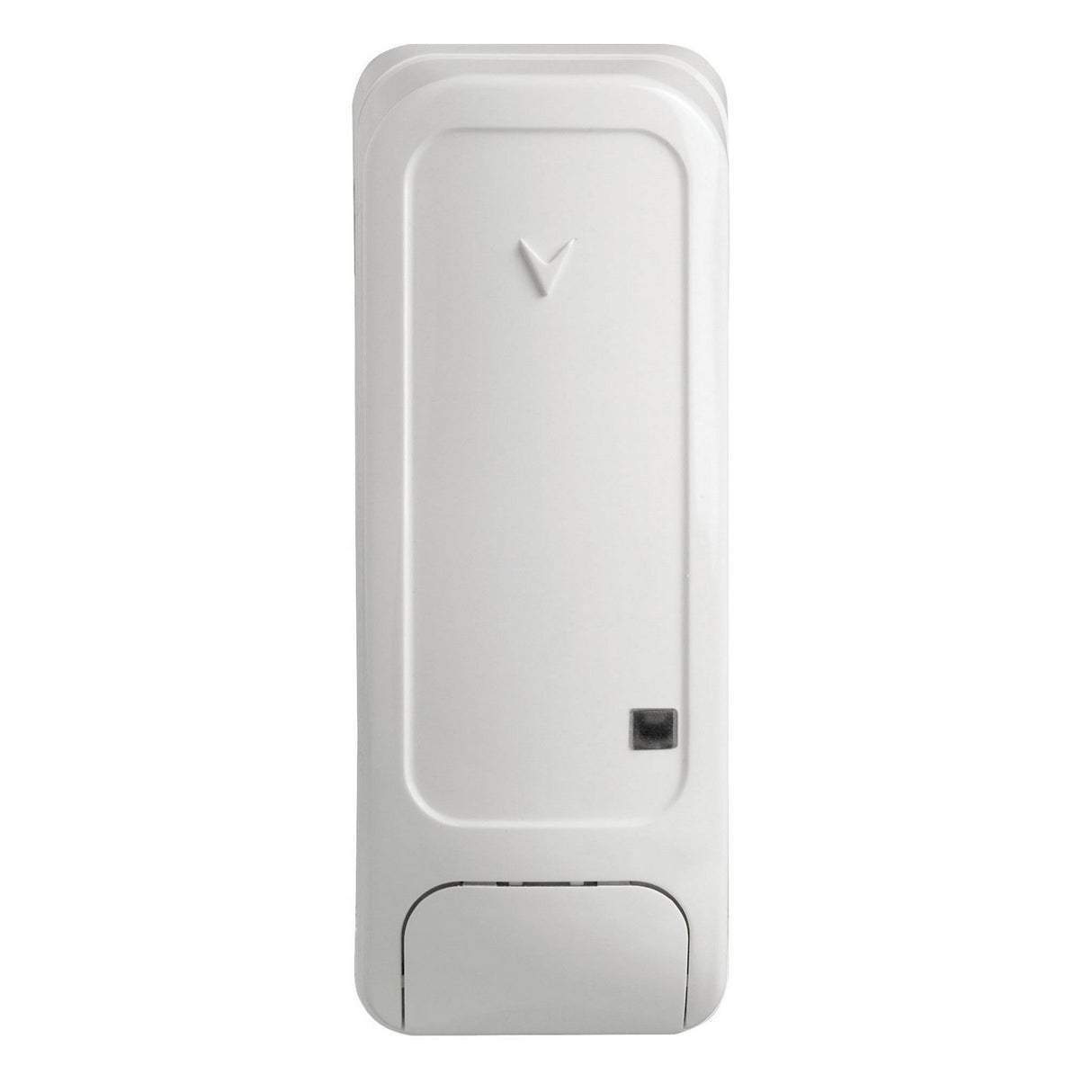

DSC PG9945 PowerG Wireless Door and Window Contact with Auxiliary Input
The DSC PG9945 PowerG Wireless Door and Window Contact with Auxiliary Input is a high-performance sensor designed to enhance perimeter security in both residential and commercial environments. Using advanced PowerG technology, this device ensures robust, encrypted wireless communication to security systems, providing reliable monitoring of door and window openings. Its built-in auxiliary input also enables integration with standard hardwired contacts for increased installation flexibility.
A visible link quality LED indicator on the device assists with optimal placement during installation, eliminating the need to reference the control panel. The PG9945 features multichannel, frequency-hopping spread spectrum transmission to reduce interference and adaptive power output to maximize battery life. With up to 8 years of typical battery operation, support for up to 2 km (2187 yards) line-of-sight transmission, and secure 128-bit AES encryption, this contact sensor is an ideal choice for long-lasting, dependable intrusion detection. It is available in white and brown.
Key Features:
- PowerG robust, commercial-grade wireless technology
- Visible link quality LED indicator for easy installation
- Configurable auxiliary input: Normally Open (NO), Normally Closed (NC), or End-of-Line (EOL)
- Fully supervised for continuous reliability
- Compatible with DSC PowerSeries Neo systems
- Multichannel, frequency-hopping spread spectrum technology to reduce interference
- Adaptive transmission power for extended battery life
- High transmission range: up to 2 km (2187 yards) line-of-sight
- Time Division Multiple Access (TDMA) to prevent communication collisions
- 128-bit AES encryption for enhanced security

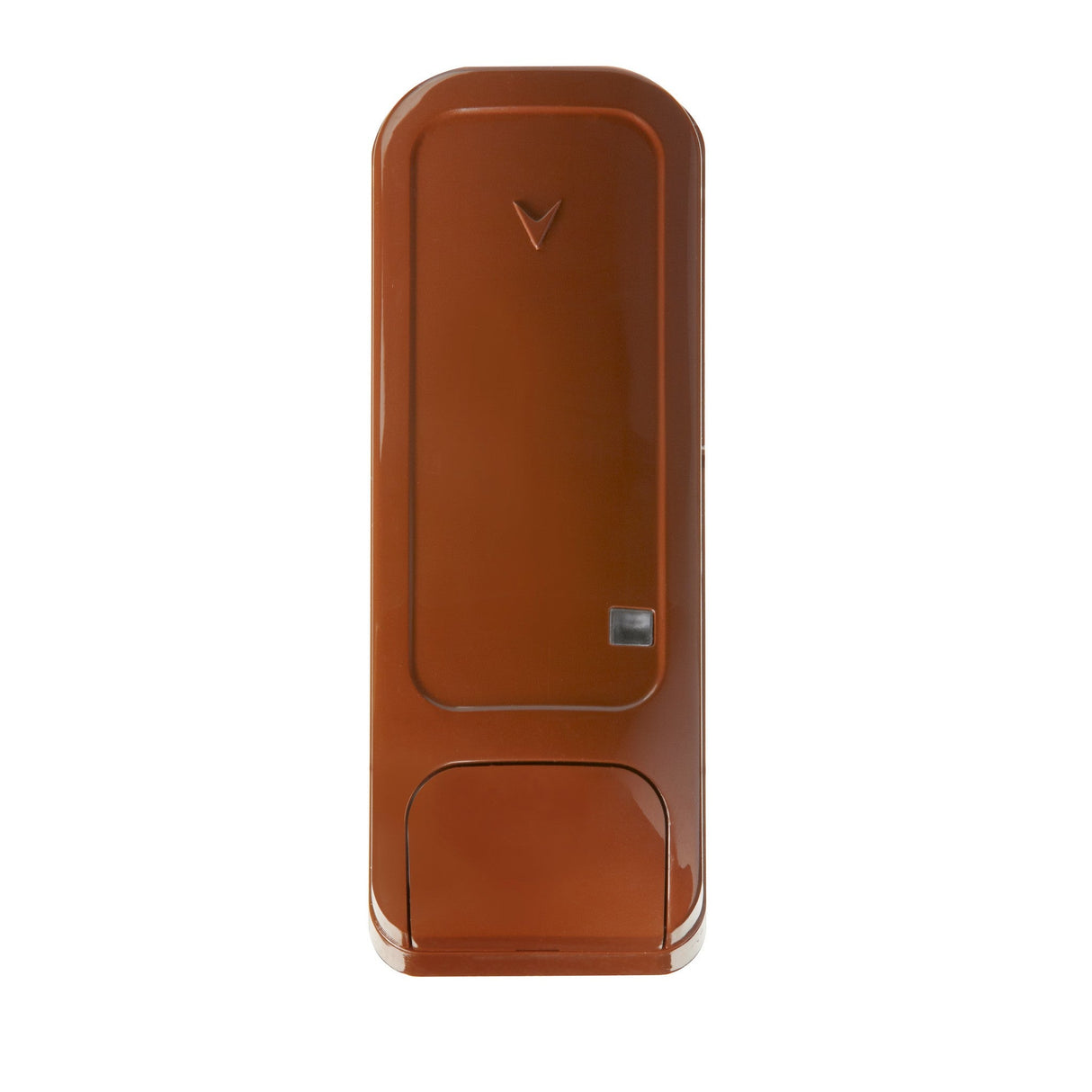

- Available in white and brown
Technical Specifications:
Dimensions: 3.19" x 1.34" x 1" (81 x 34 x 25 mm)
Weight: 1.9 oz (53 g)
Battery Type: 3V CR123A Lithium Battery
Battery Life: Up to 8 years (typical usage)
Operating Temperature: 14Ā°F to 131Ā°F (-10Ā°C to 55Ā°C)
Relative Humidity: Up to 93%, non-condensing
Auxiliary Input Cable Length: Up to 32.8 ft (10 m, AWG22)
Auxiliary Input EOL Resistor: 47KĪ©
Form Factor: Wall Mount
Color: White, Brown
Installation Type: Hybrid
Power Source: Battery
Compatibility: DSC PowerSeries Neo Systems
Certifications: FCC/IC, UL/ULC
Package Contents:
- DSC PG9945 PowerG Wireless Door and Window Contact
- CR123A 3V Lithium Battery (pre-installed)
- Mounting hardware
- Installation manual
