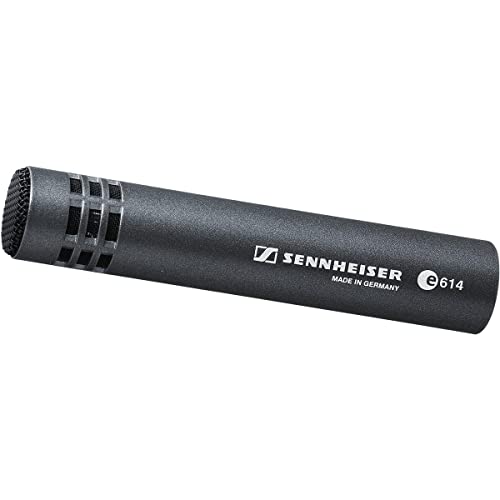

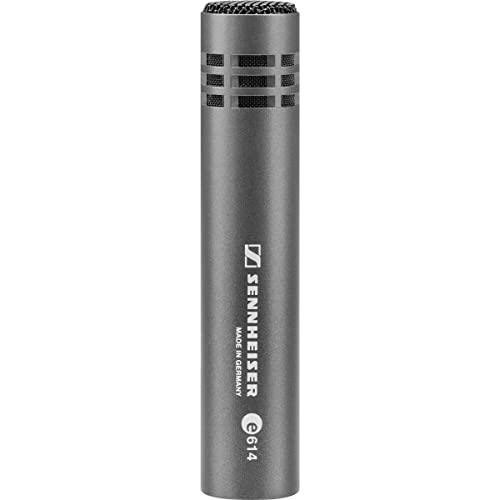

Sennheiser e 614 | Supercardioid Condenser Microphone

The Sennheiser e 614 is a top-tier supercardioid condenser microphone, engineered specifically for musicians and audio professionals who demand superior sound quality. This microphone is the ideal companion for capturing the intricate details and dynamic range of instrument recordings. With its exceptional frequency response from 40 Hz to 20,000 Hz, the e 614 ensures every nuance of your performance is recorded with precision. Whether you're miking drumsets, percussion setups, or engaging in home recording, the e 614 is designed to deliver uncompromising results.

Measuring just 100 mm in length and weighing a mere 93 grams, the Sennheiser e 614 is compact yet robust, making it a versatile addition to any audio setup. Its medium sensitivity ensures that bleed from other instruments on stage is minimized, allowing you to focus solely on the desired sound source. Thanks to its ability to handle high sound pressure levels (SPLs), this microphone effortlessly captures the shimmer and impact of sticks, mallets, and hands, making it perfect for both live performances and studio recordings.

Key Features

• Wide frequency response: 40 - 20,000 Hz
• Designed for demanding applications requiring extended frequency range and high SPL handling
• Fast transient response captures every detail
• Compact size fits comfortably in tight setups
• Minimizes bleed from other instruments on stage
• Ideal for drumset overhead miking and percussion
• Excellent for home recording

Specifications

• Dimensions: 20 mm diameter, 100 mm length
• Connector: XLR-3
• Frequency response: 40 - 20,000 Hz
• Transducer principle: Pre-polarized condenser microphone
• Weight (without cable): 93 g
• Pick-up pattern: Supercardioid
• Sensitivity: 3 mV/Pa = -50 dB (0 dB = 1 V/Pa)
• Nominal impedance: 50 ohms
• Minimum terminating impedance: 1000 ohms
• Phantom powering: 12 - 52 V / 3 mA
• Equivalent noise level: 24 dB(A)
• Equivalent noise level (weighted as per CCIR 468-3): 35 dB
• Maximum sound pressure level (passive): 139 dB/SPL

Package Contents

• e 614 Microphone
• Microphone pouch
• Microphone clip MZQ 100
