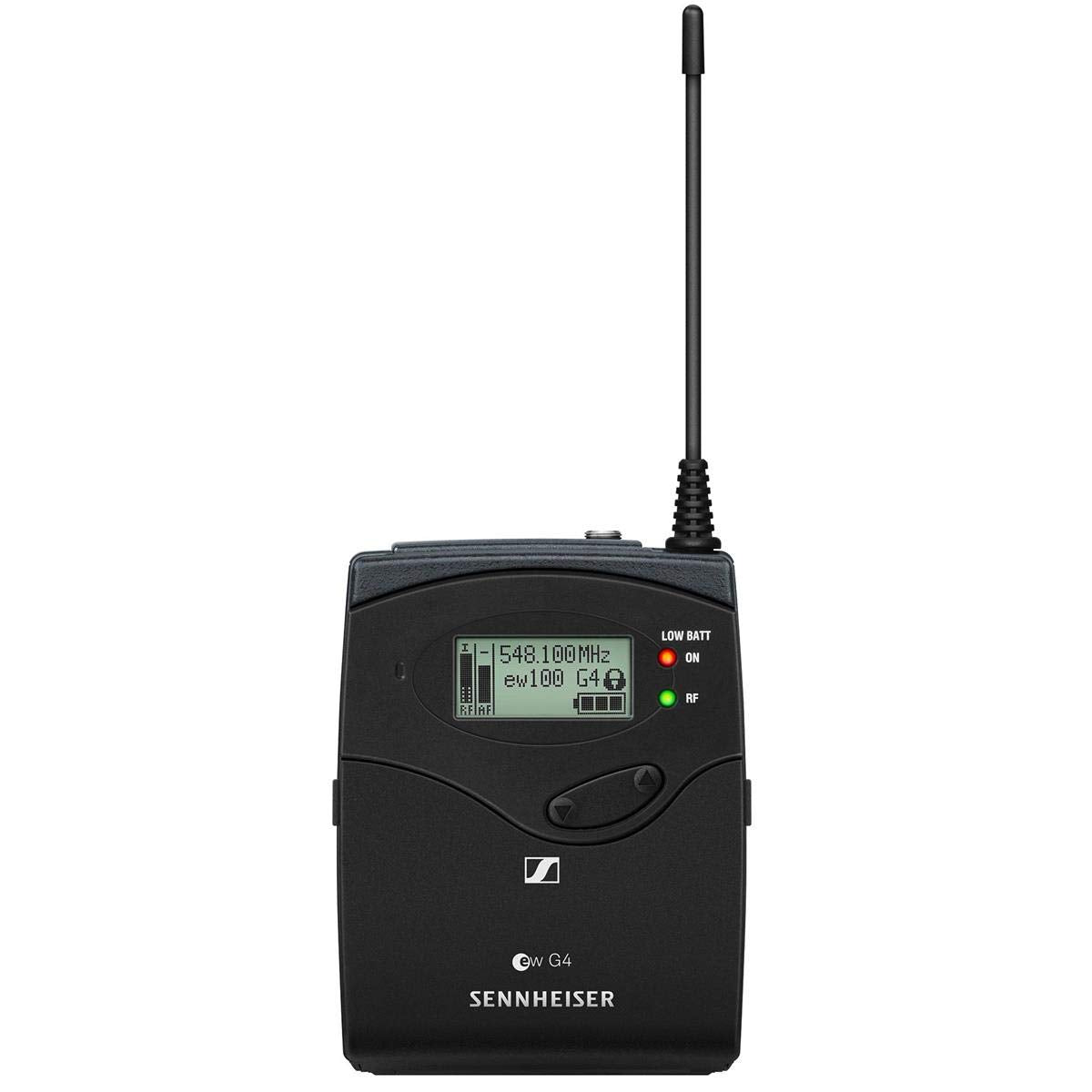

Sennheiser EK 100 G4 Portable Camera Wireless Receiver, A1 470 - 516 MHz

The Sennheiser EK 100 G4 Portable Camera Wireless Receiver is a top-tier solution for professionals in the fields of documentary filmmaking, mobile journalism, and audio for video applications. This powerful camera receiver is designed to seamlessly integrate with evolution wireless G4 100P Series systems. Its compact and lightweight aluminum housing ensures ease of portability and robustness, making it the perfect companion for any kind of camera setup.

Operating within the frequency range of A1 470 - 516 MHz, the Sennheiser EK 100 G4 delivers unparalleled audio quality and reliable wireless transmission. Setting up the receiver is incredibly user-friendly, enabling quick and efficient deployment in any scenario. The device boasts a range of up to 100 meters (330 feet) and offers up to 8 hours of operation time, ensuring long-lasting performance for extended shoots.

Crafted with Sennheiser's commitment to excellence, this camera receiver offers a combination of superior sound quality, reliable performance, and durable construction. Whether you are capturing critical footage in a bustling cityscape or a serene natural environment, the Sennheiser EK 100 G4 ensures your audio is captured with impeccable clarity and minimal interference.

Key Features

• Powerful camera receiver, easily mounted on any kind of camera
• Excellent sound and construction quality
• Easy to use and fast setup time
• Powerful and reliable wireless transmission
• Range: up to 100 meters / 330 feet
• Up to 8 hours of operation time

Specifications

• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: <= 0.9%
• Weight (incl. batteries): approx. 160 g
• Audio output: 3.5 mm jack socket: +12 dBu (mono, unbalanced)
• Signal-to-noise ratio: >= 110 dBA
• Switching bandwidth: up to 42 MHz
• Peak deviation: +/- 48 kHz
• Nominal deviation: +/- 24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA; with receiver switched off: <= 25 A
• Adjacent channel rejection: >= 65 dB
• Intermodulation attenuation: >= 65 dB
• Powering: 3 V battery / 2.4 V rechargeable battery
• Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps; 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation; 1 frequency bank with up to 12 programmable channels
• RF sensitivity: < 1.6 µV for 52 dBA eff S/N
• Squelch: low: 5 dBμV, middle: 15 dBμV, high: 25 dBμV
• Temperature Range: -10 °C to +55 °C
• Receiver Principle: Adaptive diversity
• Blocking: >= 70 dB

Package Contents

• EK 100 G4 camera receiver
• 2 AA batteries
• CA 2 camera adapter
• CL 1 3.5 mm jack cable
• CL 100 XLR to 3.5 mm jack adapter cable
• Quick guide
• Safety guide
• Manufacturer declaration sheet
