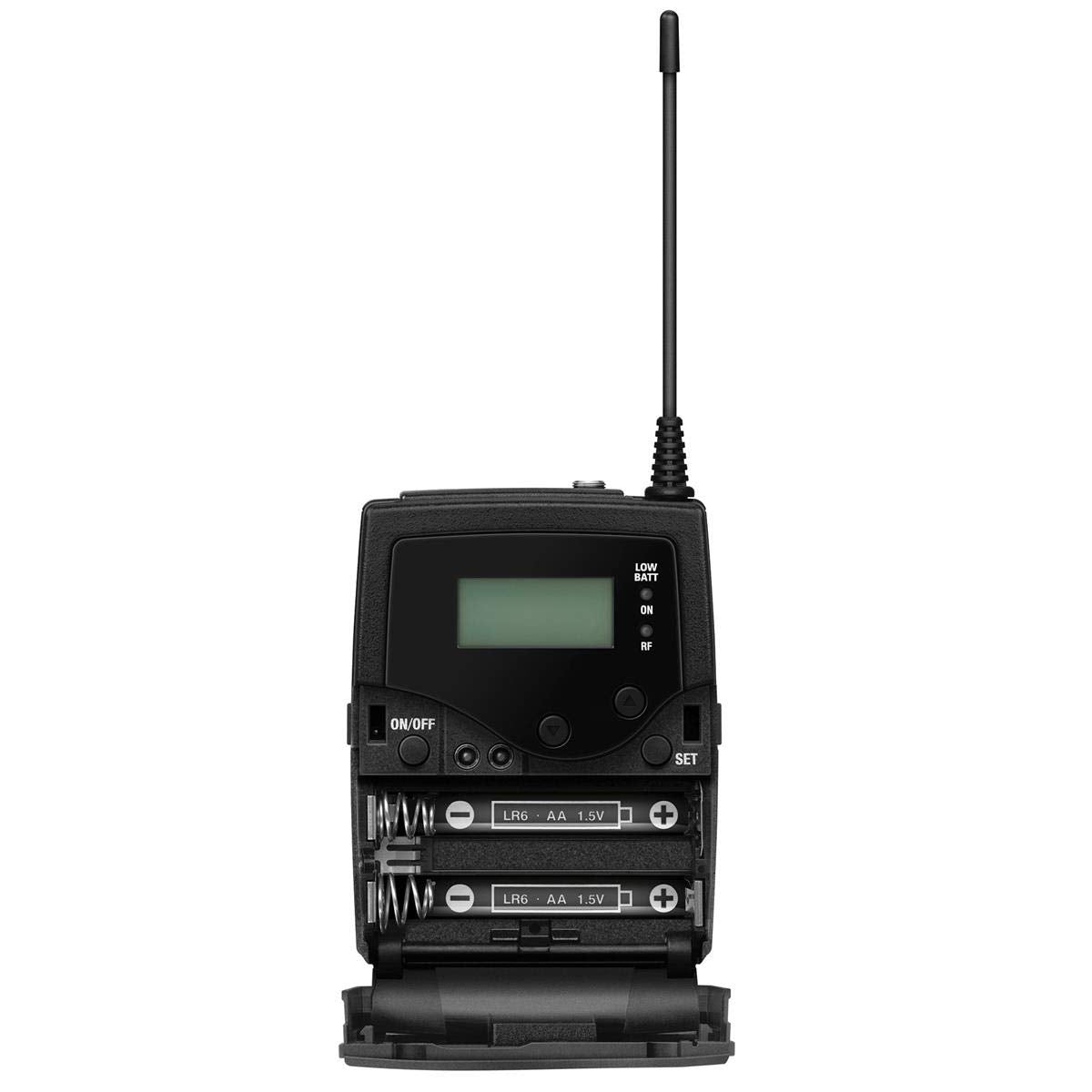

Sennheiser EK 500 G4-AW+ | Portable Camera Receiver

The Sennheiser EK 500 G4-AW+ Portable Camera Receiver is a powerful and versatile tool designed for professional film productions. This sleek black camera receiver offers increased bandwidth and transmission power for the Evolution Wireless G4 500P Series systems. Seamlessly mountable on any type of camera, the EK 500 G4-AW+ is engineered with professional sound quality and robust construction to meet the high standards of the film industry.

Whether you're in the studio or out in the field, the Sennheiser EK 500 G4-AW+ delivers exceptional performance with its easy-to-use design and fast setup time. With frequencies ranging from AW+, 470 - 558 MHz and GW1, 558 - 608 MHz, this camera receiver ensures flexible and reliable wireless synchronization between transmitter and receiver via infrared. Its extensive 88 MHz bandwidth and support for up to 32 channels make it ideal for complex film productions requiring multiple audio inputs.

Moreover, the Sennheiser EK 500 G4-AW+ offers a long operational range of up to 100 meters (330 feet) and increased RF output power options (10/30/50 mW). Enjoy up to 8 hours of continuous operation time, thanks to its efficient power consumption design, powered either by 2 AA batteries or a BA 2015 accupack.

Key Features

• Professional sound and excellent construction quality
• Easy to use and fast setup time
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Up to 88 MHz bandwidth, supporting up to 32 channels
• Operational range of up to 100 meters/330 feet
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time

Specifications

• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: <= 0.9%
• Weight (incl. batteries): approx. 130 g
• Audio output: 3.5 mm jack socket: +17 dBu (mono, unbalanced)
• Signal-to-noise ratio: Line: >= 110 dBA, Phones: approx. 90 dBA
• Switching bandwidth: up to 88 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 140 mA, with receiver switched off: <= 25 A
• Adjacent channel rejection: Typically >= 65 dB
• Intermodulation attenuation: Typically >= 65 dB
• Powering: 3 V battery / 2.4 V rechargeable battery
• Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• RF sensitivity: < 1.6 mcgV for 52 dBA eff S/N
• Squelch: low: 5 dBV, middle: 15 dBV, high: 25 dBmcgV
• Temperature Range: -10 C to +55 C
• Receiver Principle: Adaptive diversity
• Blocking: >= 70 dB

Package Contents

• EK 500 G4 camera receiver
• 2 AA batteries
• CA 2 camera adapter
• CL 1 3.5 mm jack cable
• CL 500 XLR to 3.5 mm jack adapter cable
• Quick guide
• Safety guide
• Manufacturer declaration sheet
