Sennheiser EM 300-500 G4-AW+ | Rackmount True Diversity Receiver

The Sennheiser EM 300-500 G4-AW+ Rackmount True Diversity Receiver is the epitome of advanced wireless audio technology. Encased in a robust full-metal housing, this receiver is designed to meet the demands of the world's most challenging live stage environments. With its intuitive OLED display, you'll have full control over every aspect of your audio transmission, ensuring a seamless and reliable performance. This receiver offers increased bandwidth and transmission power, making it an excellent choice for professional audio engineers and live performers alike. Compatible with the evolution wireless G4 300/500 Series systems, it provides unparalleled flexibility and adaptability for various audio applications.

The receiver operates within the AW+ frequency range of 470 - 558 MHz and the GW1 frequency range of 558 - 608 MHz, offering a wide selection of frequencies to ensure clear and interference-free signals. The integrated network port allows for control, monitoring, and setup via Sennheiser Control Cockpit and WSM Software, making it incredibly user-friendly and easy to configure. Whether you're setting up for a corporate event, a concert, or a live broadcast, the Sennheiser EM 300-500 G4-AW+ is engineered to deliver exceptional sound quality and reliability.

Key Features

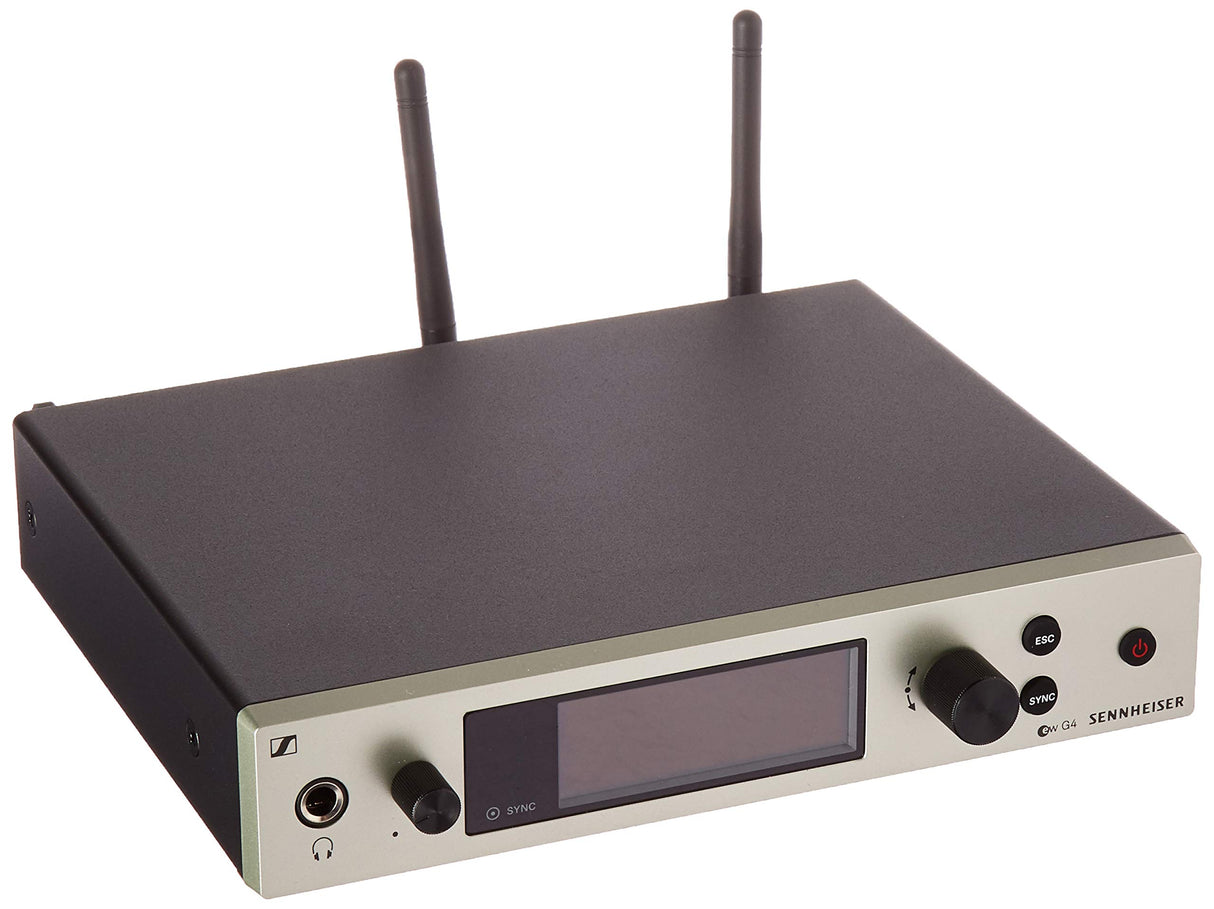

• True diversity half-rack receiver in a full-metal housing with intuitive OLED display
• Easy to use with a fast setup time
• Integrated network port for control, monitoring, and setup via Sennheiser Control Cockpit and WSM Software
• Broad range of compatible products and accessories
• Up to 88 MHz bandwidth and 32 channels
• Increased RF output power (10/30/50 mW)
• Transmission range up to 100 meters (330 feet)
• Compatible with wireless speaker system LSP 500 PRO
• RC (remote control) switch available for the bodypack transmitter

Specifications

• Dimensions: Approx. 202 x 212 x 43 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: <= 0.9%
• Weight: Approx. 980 g
• Audio output: 6.3 mm jack socket (unbalanced): +12 dBu, XLR socket (balanced): +18 dBu
• Signal-to-noise ratio: >= 115 dBA
• Switching bandwidth: up to 88 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Modulation: Wideband FM
• Power supply: 12 V DC

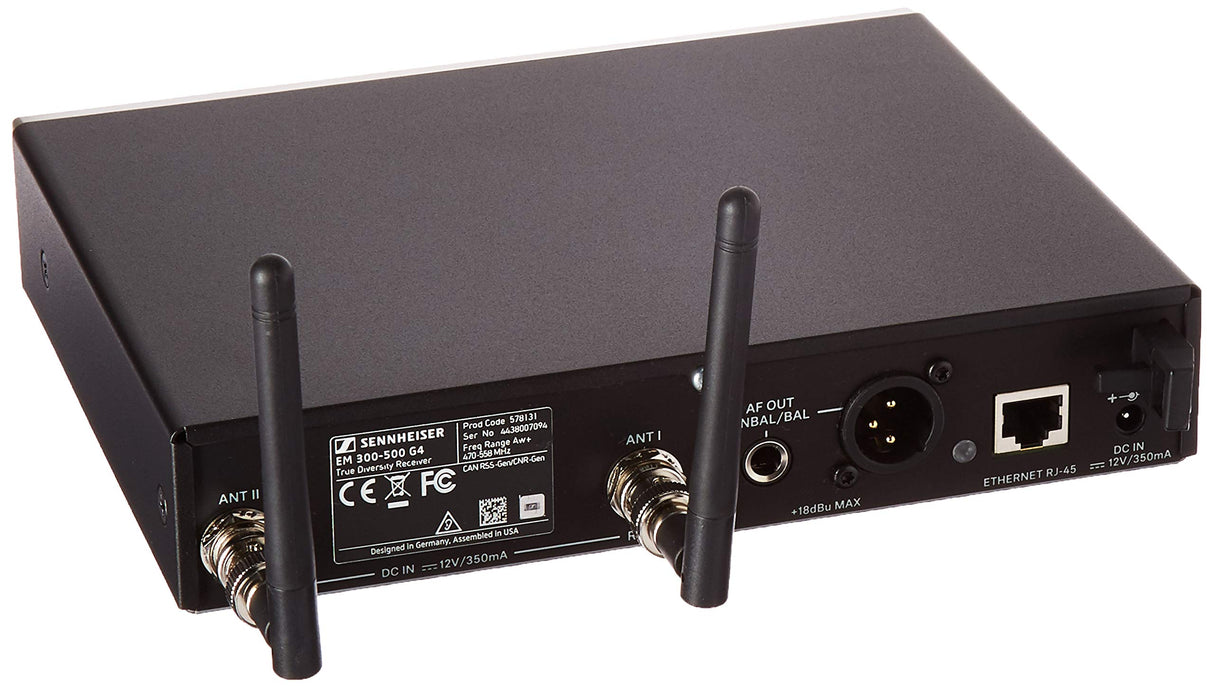

• Antenna connector: 2 BNC sockets
• Current consumption: 350 mA
• Adjacent channel rejection: Typically >= 75 dB
• Intermodulation attenuation: Typically >= 70 dB
• Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• RF sensitivity: < 2.5 mcgV for 52 dBA eff S/N
• Squelch: 5 to 25 dBmcgV in steps of 2 dB
• Equalizer: Preset 1: Flat, Preset 2: Low Cut (-3 dB at 180 Hz), Preset 3: Low Cut/High Boost (-3 dB at 180 Hz +6 dB at 10 kHz), Preset 4: High Boost (+6 dB at 10 kHz)
• Temperature Range: -10 C to +55 C
• Receiver Principle: True diversity
• Blocking: >= 75 dB

Package Contents

• EM 300-500 G4 true diversity receiver
• 2 rod antennas
• Power supply
• GA 3 rackmount set
• Quick guide
• Safety guide
• Manufacturer declaration sheet
