Sennheiser ew 100 ENG G4-A | Portable Wireless Combo Set

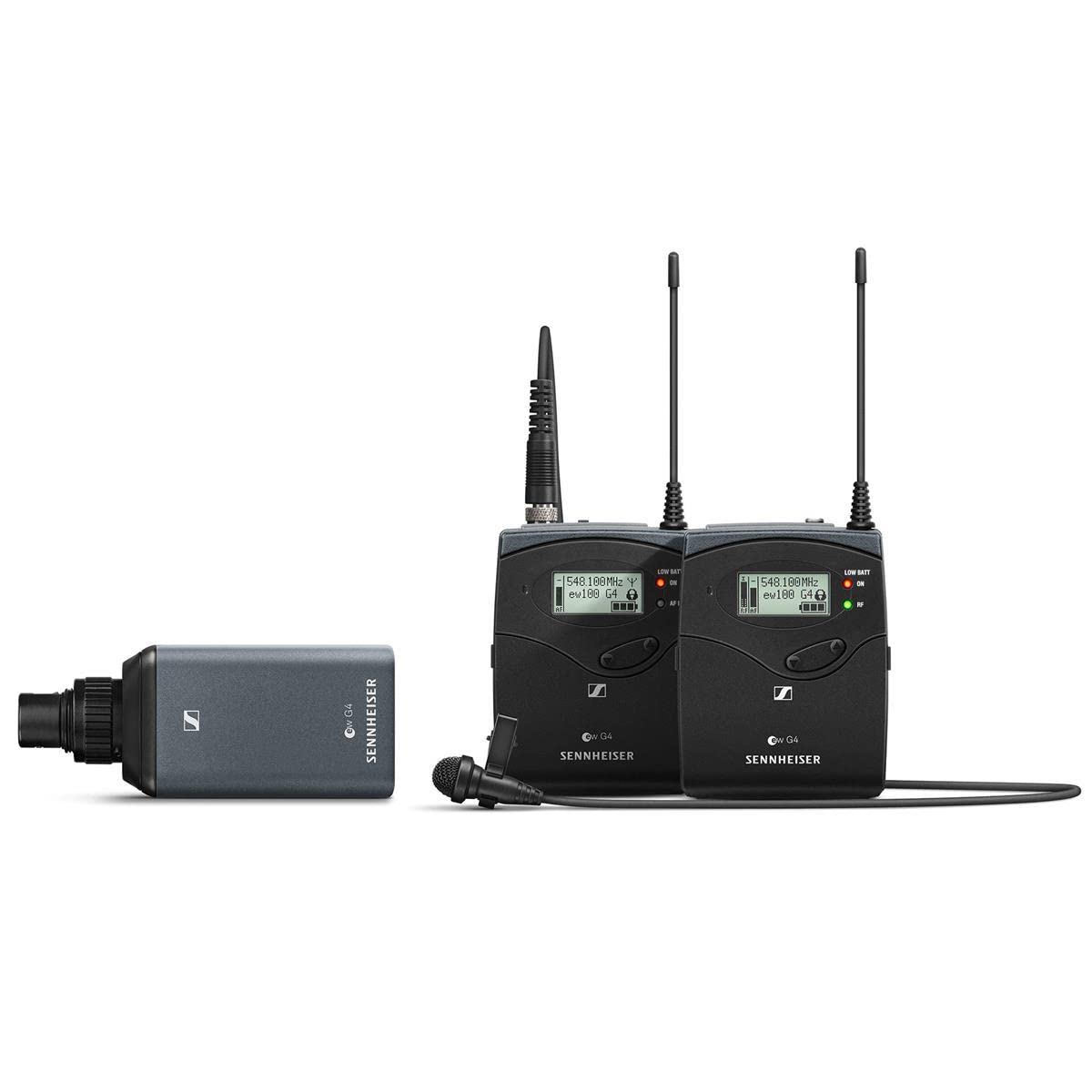

The Sennheiser ew 100 ENG G4-A is a broadcast-quality portable wireless combo set designed to provide the highest flexibility for your video sound and field recording applications. It features a robust wireless microphone system that offers excellent sound quality, simple mounting, and ease of use. Perfect for mobile journalism and documentary filming, the ew 100 ENG G4-A transforms every wired dynamic microphone into a wireless transmitter with the powerful SKP 100 plug-on transmitter. The ME 2-II clip-on microphone, with its omni-directional pick-up pattern, ensures excellent speech intelligibility during interviews.

This all-in-one wireless system is known for its rugged construction and exceptional sound quality, ensuring reliable performance even in challenging environments. Whether you're capturing high-quality audio for broadcast, film, or multimedia projects, the Sennheiser ew 100 ENG G4-A delivers professional-grade results with a range of up to 100 meters or 330 feet and up to 8 hours of operation time. With quick setup and easy-to-use features, this system is a dependable choice for any field recording scenario.

Key Features

• Rugged all-in-one wireless system with high flexibility for broadcast quality sound
• Excellent sound and construction quality
• Easy to use and fast setup time
• Powerful and reliable wireless transmission
• Range: up to 100 meters / 330 feet
• Up to 8 hours of operation time

Specifications

• Receiver Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD: <= 0.9%
• Receiver Weight (incl. batteries): approx. 160 g
• Audio output: 3.5 mm jack socket: +12 dBu (mono, unbalanced)
• Signal-to-noise ratio: >= 110 dBA
• Switching bandwidth: up to 42 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA; with receiver switched off: <= 25 A
• Adjacent channel rejection: >= 65 dB
• Intermodulation attenuation: >= 65 dB
• Powering: 3 V battery / 2.4 V rechargeable battery
• Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps; 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation; 1 frequency bank with up to 12 programmable channels
• RF sensitivity: < 1.6 mcgV for 52 dBA eff S/N
• Squelch: low: 5 dBV; middle: 15 dBV; high: 25 dBmcgV
• Temperature Range: -10 C to +55 C
• Receiver Principle: Adaptive diversity
• Blocking: >= 70 dB
• Transmitter Dimensions: Approx. 82 x 64 x 24 mm
• Transmitter Weight (incl. batteries): approx. 160 g
• RF output power: Max. 30 mW
• Input impedance: 40 k OHM, unbalanced / 1 M OHM balanced
• Max. Input voltage: 3 Veff
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps; 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation; 1 frequency bank with up to 12 programmable channels
• AF frequency response: Mic: 80 - 18,000 Hz; Line: 25 - 18,000 Hz
• Plug-on Transmitter Dimensions: Approx. 105 x 43 x 43 mm
• Plug-on Transmitter Weight (incl. batteries): approx. 195 g
• ME 2 Frequency response: 50 to 18,000 Hz (ME 2-II)
• Max. sound pressure level: 130 dB
• Cable length: approx. 1.60 m
• Pick-up pattern: omni-directional
• Connector: 3.5 mm jack

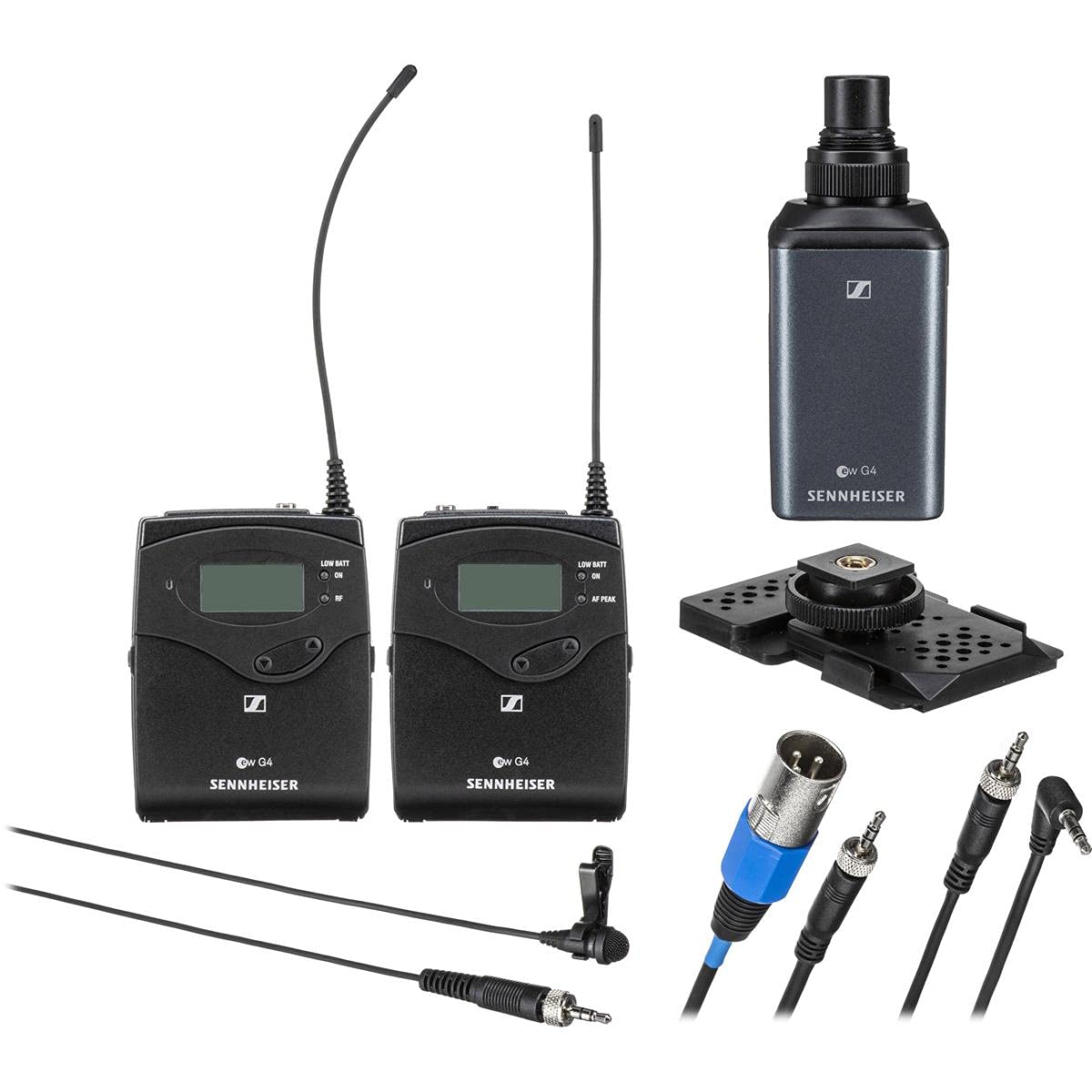

Package Contents

• EK 100 G4 camera receiver
• SK 100 G4 bodypack transmitter
• SKP 100 G4 plug-on transmitter
• ME 2 clip-on microphone
• 6 AA batteries
• CA 2 camera adapter
• CL 1 3.5 mm jack cable
• CL 100 XLR to 3.5 mm jack adapter cable
• Quick guide
• Safety guide
• Manufacturer declaration sheet
