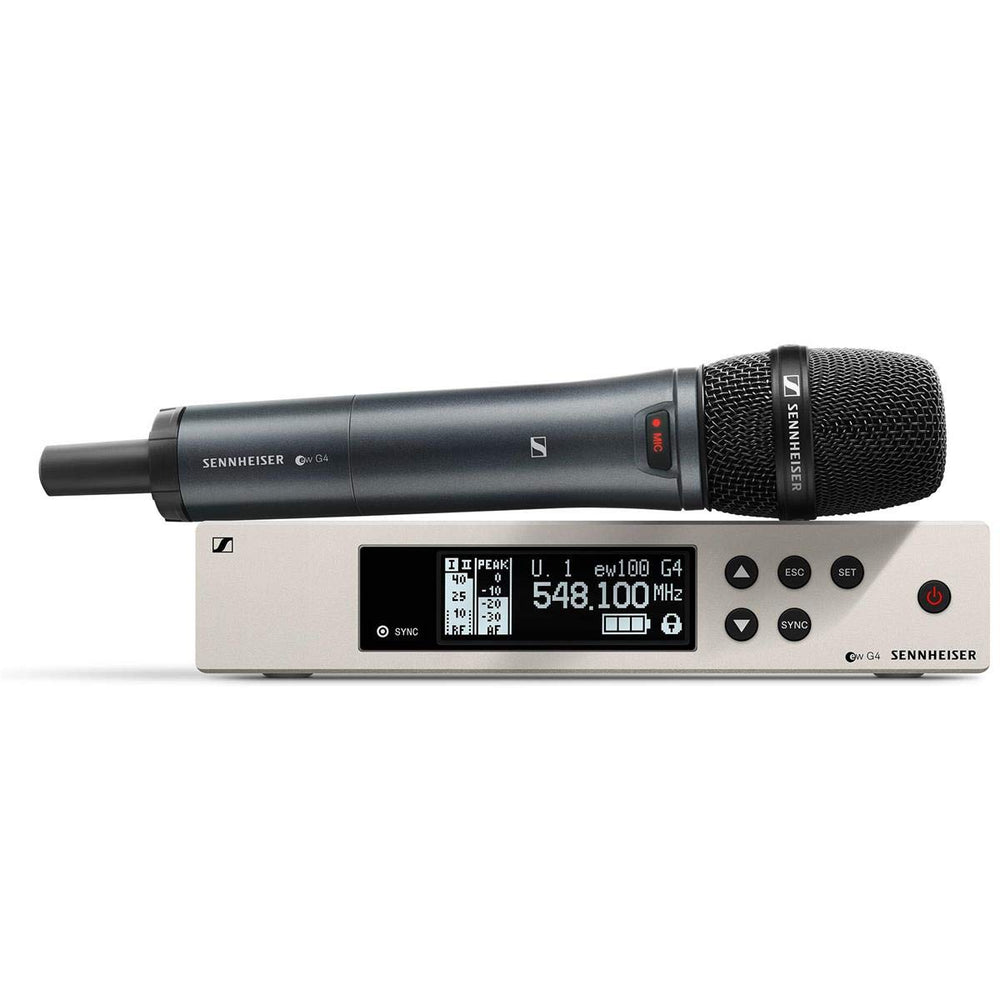

Sennheiser ew 100 G4-835-S-A | Wireless Vocal Set
The Sennheiser ew 100 G4-835-S-A Wireless Vocal Set is a versatile and reliable wireless system tailored for professionals who sing, speak, or play instruments. Engineered with state-of-the-art technology, this system offers up to 42 MHz tuning bandwidth within a stable UHF range, ensuring seamless performance even in demanding environments. Whether you're on stage or in a conference hall, the rapid, simultaneous setup for up to 12 linked systems ensures you can focus on your performance rather than the technology.
This wireless set features Sennheiser's renowned e 835, e 845, and e 865 capsules, providing pristine audio quality. The lightweight aluminum transmitter integrates an intuitive mute switch, and the True Diversity half-rack receiver, housed in robust metal, delivers impeccable signal stability. Both seasoned professionals and newcomers will appreciate the easy and flexible wireless synchronization between transmitter and receiver via infrared, coupled with the fast frequency allocation functionality.
Key Features
- Designed for professional live sound: Rugged all-in-one wireless system for singers and presenters.
- State-of-the-art live sound featuring Sennheiserās renowned e 835, e 845, e 865 capsules on a lightweight aluminum transmitter with integrated mute switch.
- True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control.
- Easy and flexible wireless synchronization between transmitter and receiver via infrared.
- Fast frequency allocation for up to 12 receivers via new linking functionality.
- Up to 20 compatible channels.
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range.
- Transmission Range: up to 100 meters / 300 feet.
- High RF output power (up to 30 mW) depending on country regulations.
Specifications
- Dimensions EM 100 G4: Approx. 190 x 212 x 43 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: <= 0.9 %
- Weight EM 100 G4: Approx. 980 g
- Audio output: 6.3 mm jack socket (unbalanced): +12 dBu, XLR socket (balanced): +18 dBu
- Signal-to-noise ratio: >= 110 dBA
- Switching bandwidth: up to 42 MHz
- Peak deviation: +/-48 kHz
- Nominal deviation: +/-24 kHz
- Modulation: Wideband FM
- Power supply: 12 V DC
- Antenna connector: 2 BNC sockets
- Current consumption: 300 mA
- Adjacent channel rejection: Typically >= 65 dB
- Intermodulation attenuation: Typically >= 65 dB
- Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- RF sensitivity: < 2.5 mcgV for 52 dBA eff S/N
- Squelch: low: 5 dBV, middle: 15 dBV, high: 25 dBmcgV
- Equalizer: Preset 1: Flat, Preset 2: Low Cut (-3 dB at 180 Hz), Preset 3: Low Cut/High Boost (-3 dB at 180 Hz +6 dB at 10 kHz), Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range: -10 C to +55 C
- Receiver Principle: True diversity
- Blocking: >= 70 dB
Package Contents
- EM 100 G4 true diversity receiver
- SKM 100 G4-S handheld transmitter
- MMD 835-1 microphone head (835-S variants only)
- MMD 845-1 microphone head (845-S variants only)
- MME 865-1 microphone head (865-S variants only)
- GA 3 rackmount set
- MZQ 1 microphone clamp
- Power supply
- 2 AA batteries
- 2 rod antennas
- RJ 10 cable
- Quick guide
- Safety guide
- Manufacturer declaration sheet
- Frequency supplement sheet
