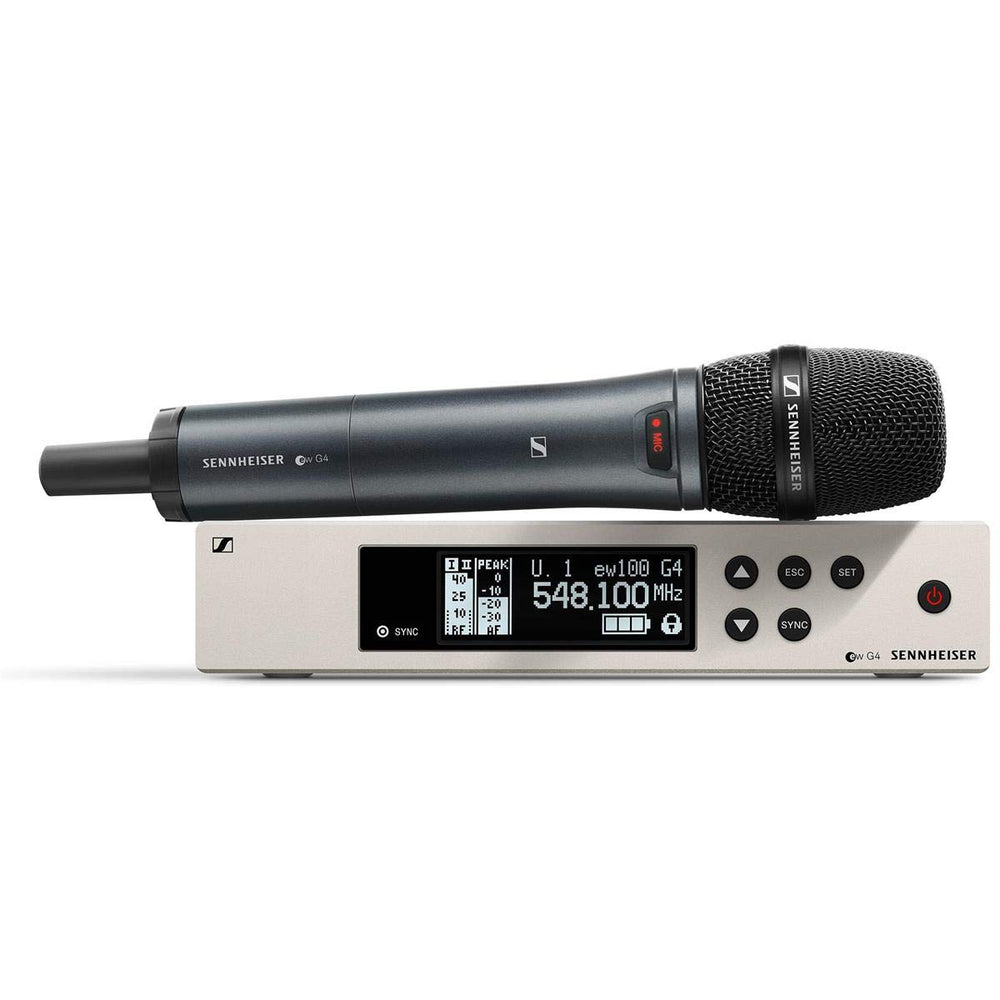

Sennheiser ew 100 G4-845-S-G | Wireless Vocal Set

The Sennheiser ew 100 G4-845-S-G Wireless Vocal Set is the ultimate choice for professionals who demand versatility, reliability, and superior sound quality. Engineered for singers, presenters, and instrumentalists, this state-of-the-art wireless system offers a stable UHF range with up to 42 MHz tuning bandwidth, ensuring consistent performance across a variety of settings. Featuring the renowned Sennheiser e 835, e 845, and e 865 capsules, this set provides unparalleled audio clarity and richness, all packaged in a lightweight aluminum transmitter with an integrated mute switch.

With the ability to easily and flexibly synchronize wireless settings between the transmitter and receiver through infrared technology, the Sennheiser ew 100 G4-845-S-G supports a fast setup even in complex scenarios. It allows for the simultaneous setup of up to 12 linked systems, each equipped with true diversity half-rack receivers housed in full-metal casing, complete with intuitive LCD displays for total control. Whether you are performing on stage or presenting in a conference, this system's high RF output power and extensive transmission range ensure your message is delivered with clarity and precision.

Designed to withstand the rigors of live performance, the Sennheiser ew 100 G4 is a robust and professional solution that can handle the demands of touring, large venues, and corporate events. Enjoy up to 8 hours of continuous operation on a single set of batteries, and harness the power of 1680 selectable frequencies to avoid interference, making this wireless set an indispensable tool for any serious performer.

Key Features

• Rugged all-in-one wireless system for singers and presenters
• State-of-the-art live sound with Sennheiser e 835, e 845, and e 865 capsules
• Lightweight aluminum transmitter with integrated mute switch
• True diversity half-rack receiver with intuitive LCD display
• Easy wireless synchronization via infrared
• Fast frequency allocation for up to 12 receivers
• Up to 20 compatible channels
• 42 MHz bandwidth with 1680 selectable frequencies in UHF range
• Transmission range up to 100 meters (300 feet)
• High RF output power (up to 30 mW)

Specifications

• EM 100 G4 Dimensions: Approx. 190 x 212 x 43 mm
• Weight: Approx. 980 g
• Audio output: 6.3 mm jack (unbalanced) +12 dBu, XLR (balanced) +18 dBu
• Signal-to-noise ratio: >= 110 dBA
• Switching bandwidth: up to 42 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Power supply: 12 V DC
• Receiver principle: True diversity
• Temperature Range: -10 C to +55 C

Package Contents

• EM 100 G4 true diversity receiver
• SKM 100 G4-S handheld transmitter
• MMD 835-1 microphone head (835-S variants only)
• MMD 845-1 microphone head (845-S variants only)
• MME 865-1 microphone head (865-S variants only)
• GA 3 rackmount set
• MZQ 1 microphone clamp
• Power supply
• 2 AA batteries
• 2 rod antennas
• RJ 10 cable
• Quick guide
• Safety guide
• Manufacturer declaration sheet
• Frequency supplement sheet
