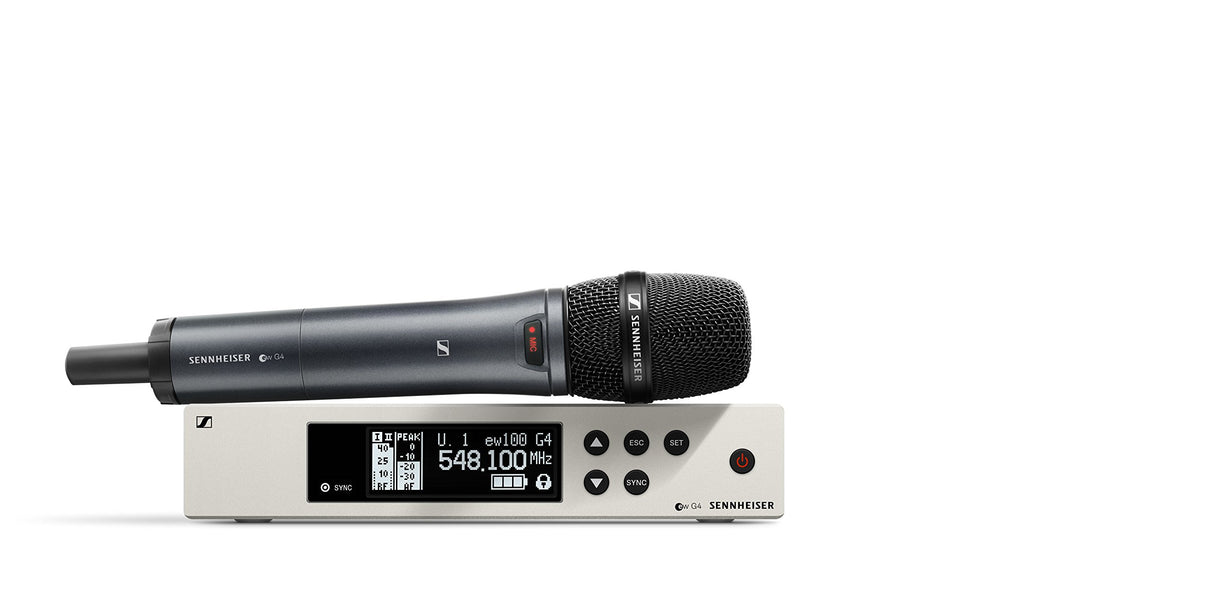

Sennheiser ew 100 G4-865-S-A1 | Wireless Vocal Set

The Sennheiser ew 100 G4-865-S-A1 Wireless Vocal Set offers unparalleled performance for professionals who sing, speak, or play instruments. Engineered for versatile and reliable performance, this all-in-one wireless system operates in a stable UHF range with up to 42 MHz tuning bandwidth. The set is designed to deliver state-of-the-art live sound, featuring Sennheiser's renowned e 835, e 845, and e 865 capsules on a lightweight aluminum transmitter with an integrated mute switch.

The ew 100 G4-865-S-A1 ensures easy and flexible wireless synchronization between transmitter and receiver via infrared, making it a go-to choice for singers and presenters who need a reliable system for their live performances. With the ability to fast frequency allocate up to 12 receivers via new linking functionality, and operating up to 20 compatible channels, this system provides high RF output power (up to 30 mW depending on country regulations) and a transmission range of up to 100 meters (300 feet). Whether you're on stage, in a conference, or playing an instrument, this wireless vocal set guarantees exceptional audio performance and user-friendly operation.

Key Features

• Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters
• State-of-the-art live sound featuring Sennheiser’s renowned e 835, e 845, e 865, e 935, e 945 capsules
• Lightweight aluminum transmitter with integrated mute switch
• True diversity half-rack receiver in full-metal housing with LCD display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

Specifications

• EM 100 G4 dimensions: Approx. 190 x 212 x 43 mm
• Weight: Approx. 980 g
• Compander: Sennheiser HDX
• Audio output: 6.3 mm jack socket (unbalanced) +12 dBu, XLR socket (balanced) +18 dBu
• Signal-to-noise ratio: >= 110 dBA
• Switching bandwidth: up to 42 MHz
• Power supply: 12 V DC
• Antenna connector: 2 BNC sockets
• RF sensitivity: < 2.5 μV for 52 dBA eff S/N
• Squelch: low: 5 dBμV, middle: 15 dBμV, high: 25 dBμV
• Operating time: typically 8 h
• Temperature Range: -10°C to +55°C
• Receiver Principle: True diversity

Package Contents

• EM 100 G4 true diversity receiver
• SKM 100 G4-S handheld transmitter
• MMD 835-1 microphone head (835-S variants only)
• MMD 845-1 microphone head (845-S variants only)
• MME 865-1 microphone head (865-S variants only)
• GA 3 rackmount set
• MZQ 1 microphone clamp
• Power supply
• 2 AA batteries
• 2 rod antennas
• RJ 10 cable
• Quick guide
• Safety guide
• Manufacturer declaration sheet
• Frequency supplement sheet
