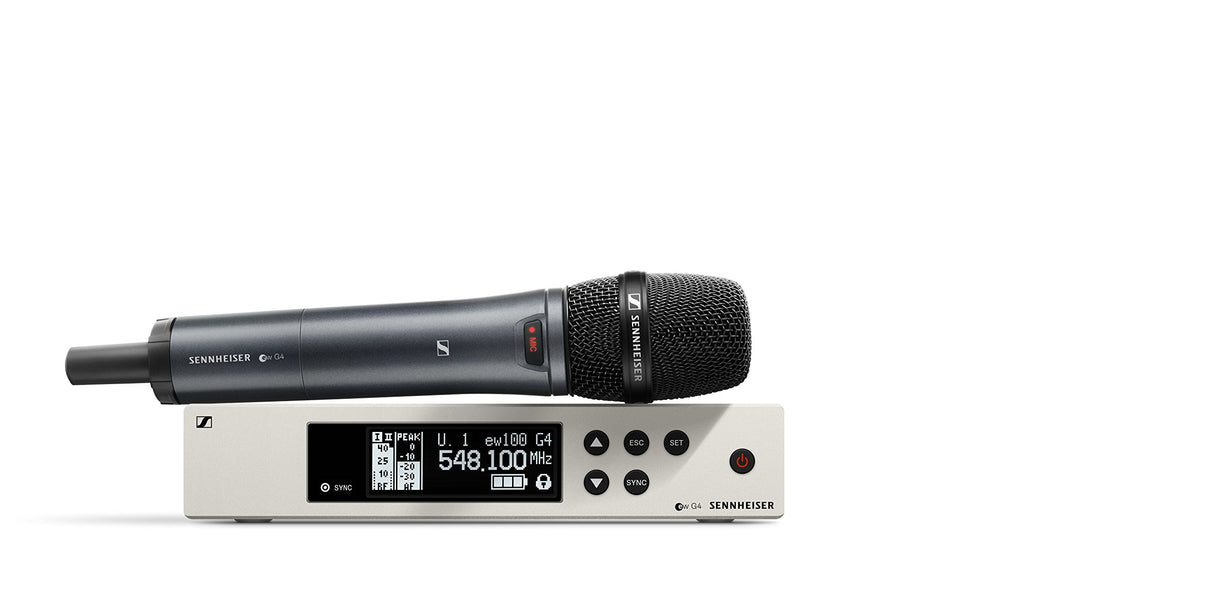

Sennheiser ew 100 G4-865-S-G Wireless Vocal Set

Experience unparalleled versatility and premium quality sound with the Sennheiser ew 100 G4-865-S-G Wireless Vocal Set. Engineered for those who sing, speak, or play instruments, this state-of-the-art wireless system features Sennheiser’s renowned e 835, e 845, and e 865 capsules. It offers a robust 42 MHz tuning bandwidth within a stable UHF range, allowing for up to 12 linked systems to be set up simultaneously. This ensures quick and seamless integration for large ensembles or performances.

The lightweight aluminum transmitter is equipped with an integrated mute switch, providing convenience and ease of use for performers. Combined with the true diversity half-rack receiver housed in a full-metal casing, users gain full control via an intuitive LCD display. Whether you are a singer, presenter, or musician, the Sennheiser ew 100 G4-865-S-G guarantees high-quality, reliable sound for all your live performances.

The system is designed for easy and flexible wireless synchronization between the transmitter and receiver through infrared technology. With up to 20 compatible channels and transmission range of up to 100 meters (300 feet), it’s perfect for any performance venue. Boasting high RF output power up to 30 mW, depending on country regulations, you can count on this system for clear, interference-free audio.

Key Features

• Engineered for professional live sound
• Features Sennheiser’s e 835, e 845, e 865, e 935, and e 945 capsules
• Lightweight aluminum transmitter with integrated mute switch
• True diversity half-rack receiver with full-metal housing
• Intuitive LCD display for full control
• Easy synchronization via infrared
• Fast frequency allocation for up to 12 receivers
• Up to 20 compatible channels
• 42 MHz bandwidth with 1680 selectable frequencies
• Transmission range up to 100 meters/300 feet
• High RF output power up to 30 mW

Specifications

• EM 100 G4 Dimensions: 190 x 212 x 43 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: <= 0.9%
• Weight: 980 g
• Audio output: 6.3 mm jack socket (unbalanced): +12 dBu, XLR socket (balanced): +18 dBu
• Signal-to-noise ratio: >= 110 dBA
• Switching bandwidth: up to 42 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Modulation: Wideband FM
• Power supply: 12 V DC
• Antenna connector: 2 BNC sockets
• Current consumption: 300 mA
• Adjacent channel rejection: typically >= 65 dB
• Intermodulation attenuation: typically >= 65 dB
• Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks with up to 12 factory-preset channels, 1 frequency bank with up to 12 programmable channels
• RF sensitivity: < 2.5 mcgV for 52 dBA eff S/N
• Squelch: low: 5 dBV, middle: 15 dBV, high: 25 dBmcgV
• Equalizer: Preset 1: Flat, Preset 2: Low Cut (-3 dB at 180 Hz), Preset 3: Low Cut/High Boost (-3 dB at 180 Hz +6 dB at 10 kHz), Preset 4: High Boost (+6 dB at 10 kHz)
• Temperature range: -10°C to +55°C
• Receiver principle: True diversity
• Blocking >= 70 dB
• SKM 100 G4-S Dimensions: 50 x 265 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: <= 0.9%
• Weight (incl. batteries): approx. 450 g
• Signal-to-noise ratio: >= 110 dBA
• RF output power: Max. 30 mW
• Switching bandwidth: up to 42 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Operating time: typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA, with transmitter off: <= 25 A
• Input impedance: 40 kΩ
• Max. input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 12 factory-preset channels, 1 frequency bank with up to 12 programmable channels
• AF frequency response: 80 - 18,000 Hz
• Temperature range: -10°C to +55°C
• Frequency stability: <= +/-15 ppm
• MME 865-1 SPL: 152 dB SPL
• Transducer principle: pre-polarized condenser microphone
• Pick-up pattern: supercardioid
• Sensitivity: 1.6 mV/Pa

Package Contents

• EM 100 G4 true diversity receiver
• SKM 100 G4-S handheld transmitter
• MMD 835-1 microphone head (835-S variants only)
• MMD 845-1 microphone head (845-S variants only)
• MME 865-1 microphone head (865-S variants only)
• GA 3 rackmount set
• MZQ 1 microphone clamp
• Power supply
• 2 AA batteries
• 2 rod antennas
• RJ 10 cable
• Quick guide
• Safety guide
• Manufacturer declaration sheet
• Frequency supplement sheet
