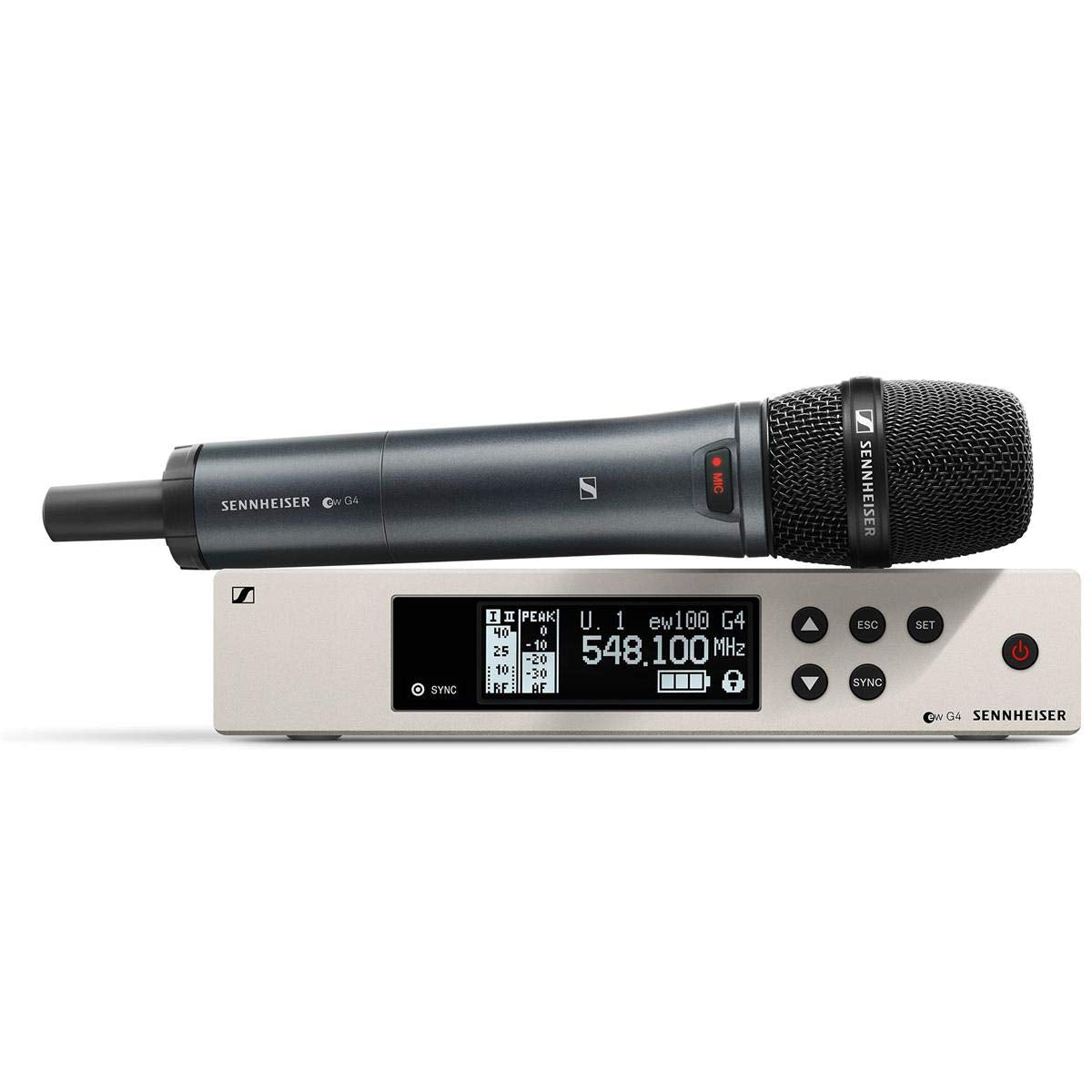

Sennheiser ew 100 G4-935-S-G | Wireless Vocal Set

The Sennheiser ew 100 G4-935-S-G Wireless Vocal Set is a versatile and high-performance wireless system engineered for singers, speakers, and instrumentalists. Designed to deliver state-of-the-art live sound, this set features the renowned Sennheiser e 935 and e 945 capsules. The system operates within a stable UHF range and offers a broad 42 MHz tuning bandwidth, ensuring clear and interference-free performance every time. Whether you are a professional performer or a public speaker, this wireless set provides consistent sound quality and reliability.

The lightweight aluminum transmitter includes an integrated mute switch, making it easy to control your audio output without needing to touch your receiver. Additionally, the true diversity half-rack receiver is housed in a robust metal casing and comes with an intuitive LCD display. The advanced infrared synchronization between the transmitter and receiver ensures quick and easy setup, even for novice users. With up to 20 compatible channels, high RF output power, and a transmission range of up to 100 meters (300 feet), this wireless vocal set is ideal for both small venues and large stage performances.

Key Features

• Rugged all-in-one wireless system for professional singers and presenters
• State-of-the-art sound quality with Sennheiser e 935 and e 945 capsules
• Lightweight aluminum transmitter with integrated mute switch
• True diversity half-rack receiver in a full-metal housing
• Intuitive LCD display for full control
• Easy wireless synchronization via infrared
• Quick frequency allocation for up to 12 receivers
• Up to 20 compatible channels
• 42 MHz bandwidth with 1680 selectable frequencies
• Transmission range up to 100 meters (300 feet)
• High RF output power up to 30 mW depending on country regulations

Specifications

• Dimensions (EM 100 G4): Approx. 190 x 212 x 43 mm
• Weight (EM 100 G4): Approx. 980 g
• Audio output: 6.3 mm jack socket (unbalanced): +12 dBu, XLR socket (balanced): +18 dBu
• Signal-to-noise ratio: >= 110 dBA
• Switching bandwidth: up to 42 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Modulation: Wideband FM
• Power supply: 12 V DC
• Antenna connector: 2 BNC sockets
• Current consumption: 300 mA
• Receiver sensitivity: < 2.5 mcgV for 52 dBA eff S/N
• Operating time (SKM 100 G4-S): Typically 8 hours
• Power supply (SKM 100 G4-S): 2 AA batteries, 1.5 V or BA 2015 accupack
• RF output power: Max. 30 mW
• Frequency stability: <= +/-15 ppm
• AF frequency response: 80 - 18,000 Hz

Package Contents

• EM 100 G4 true diversity receiver
• SKM 100 G4-S handheld transmitter
• MMD 935-1 microphone head (935-S variants only)
• MMD 945-1 microphone head (945-S variants only)
• GA 3 rackmount set
• MZQ 1 microphone clamp
• Power supply
• 2 AA batteries
• 2 rod antennas
• RJ 10 cable
• Quick guide
• Safety guide
• Manufacturer declaration sheet
• Frequency supplement sheet
