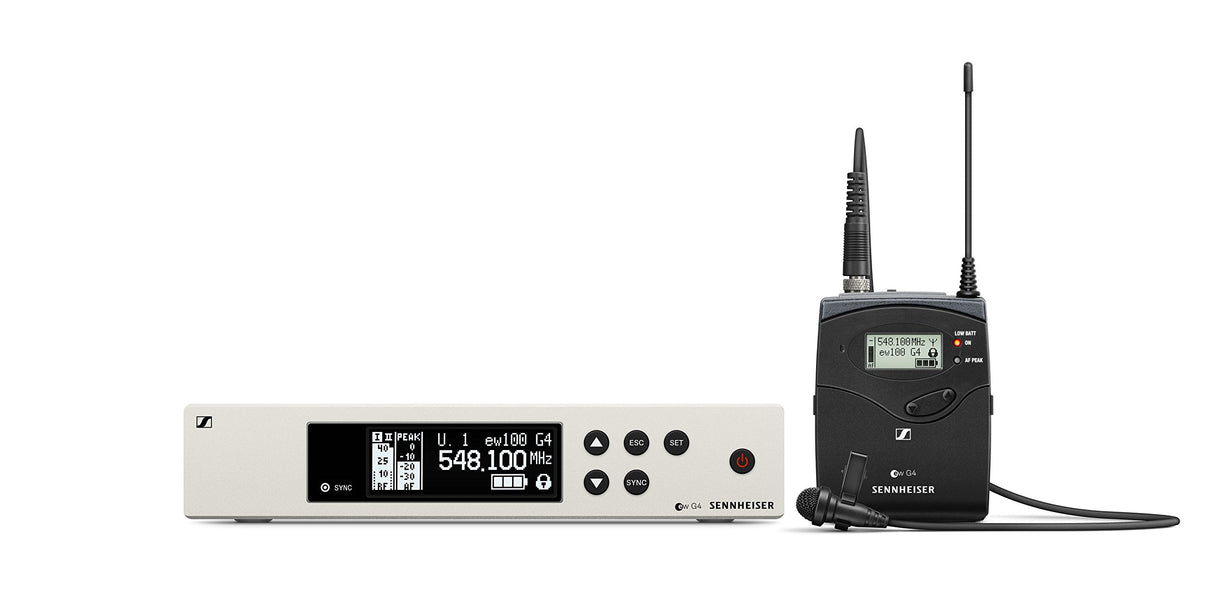

Sennheiser ew 100 G4-ME2-A1 | Wireless Lavalier Set

Experience unparalleled audio performance with the Sennheiser ew 100 G4-ME2-A1 Wireless Lavalier Set. Tailored for professional use, this versatile wireless system is perfect for those who sing, speak, or play instruments. It offers up to 42 MHz tuning bandwidth within a stable UHF range, ensuring a reliable and interference-free signal. Whether you're a moderator, presenter, or stage performer, this system provides robust connectivity and exceptional sound clarity.

Featuring an impressive bodypack transmitter and a discreet clip-on microphone (ME 2-II omni-directional or ME 4 cardioid), the Sennheiser ew 100 G4-ME2-A1 guarantees high speech intelligibility and easy hands-free operation. The system is designed for quick and seamless setup with up to 12 linked systems, making it ideal for complex stage environments. Its true diversity half-rack receiver comes housed in a durable full-metal casing with an intuitive LCD display, providing full control over your wireless configuration.

Key Features

• Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators
• Robust bodypack transmitter and unobtrusive clip-on microphone (ME 2-II omni-directional or ME 4 cardioid) with high speech intelligibility
• True diversity half-rack receiver in a full-metal housing with an intuitive LCD display for complete control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission range of up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

Specifications

• EM 100 G4 Dimensions: Approx. 190 x 212 x 43 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: <= 0.9%
• Weight: Approx. 980 g
• Audio output: 6.3 mm jack socket (unbalanced): +12 dBu, XLR socket (balanced): +18 dBu
• Signal-to-noise ratio: >= 110 dBA
• Switching bandwidth: up to 42 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Modulation: Wideband FM
• Power supply: 12 V DC
• Antenna connector: 2 BNC sockets
• Current consumption: 300 mA
• Adjacent channel rejection: Typically >= 65 dB
• Intermodulation attenuation: Typically >= 65 dB
• Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps
• RF sensitivity: < 2.5 μV for 52 dBA eff S/N
• Squelch: Low: 5 dBμV, Middle: 15 dBμV, High: 25 dBμV
• Equalizer: Preset 1: Flat, Preset 2: Low Cut (-3 dB at 180 Hz), Preset 3: Low Cut/High Boost (-3 dB at 180 Hz +6 dB at 10 kHz), Preset 4: High Boost (+6 dB at 10 kHz)
• Temperature Range: -10 °C to +55 °C
• Receiver Principle: True diversity
• Blocking: >= 70 dB
• SK 100 G4 Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: <= 0.9%
• Weight (incl. batteries): approx. 160 g
• Signal-to-noise ratio: >= 110 dBA
• RF output power: Max. 30 mW
• Switching bandwidth: up to 42 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA, with transmitter switched off: <= 25 μA
• Input impedance: 40 kΩ, unbalanced / 1 MΩ
• Max. Input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps
• AF frequency response: Mic: 80 - 18,000 Hz, Line: 25 - 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: <= +/-15 ppm
• ME 2 Connector: 3.5 mm jack
• Frequency response: 50 to 18,000 Hz (ME 2-II)
• Max. sound pressure level: 130 dB
• Cable length: approx. 1.60 m
• Transducer principle: pre-polarized condenser microphone
• Pick-up pattern: omni-directional
• Sensitivity: in free field, no load (1kHz) 20 mV/Pa
• Equivalent noise level: 36 dB

Package Contents

• EM 100 G4 true diversity receiver
• SK 100 G4 bodypack transmitter
• ME 2 clip-on microphone (ew 100 G4-ME2 set only)
• ME 4 clip-on microphone (ew 100 G4-ME4 set only)
• GA 3 rackmount set
• Power supply
• 2 AA batteries
• 2 rod antennas
• RJ 10 cable
• Quick guide
• Safety guide
• Manufacturer declaration sheet
• Frequency supplement sheet
