Sennheiser ew 500 G4-CI1-AW+ Wireless Instrument Set

Sennheiser | SKU: SENN-WRLSYS-EW500G4CI1AWPLUS
$89900

Free Shipping

Estimated Shipping Widget will be displayed here!

Condition: New

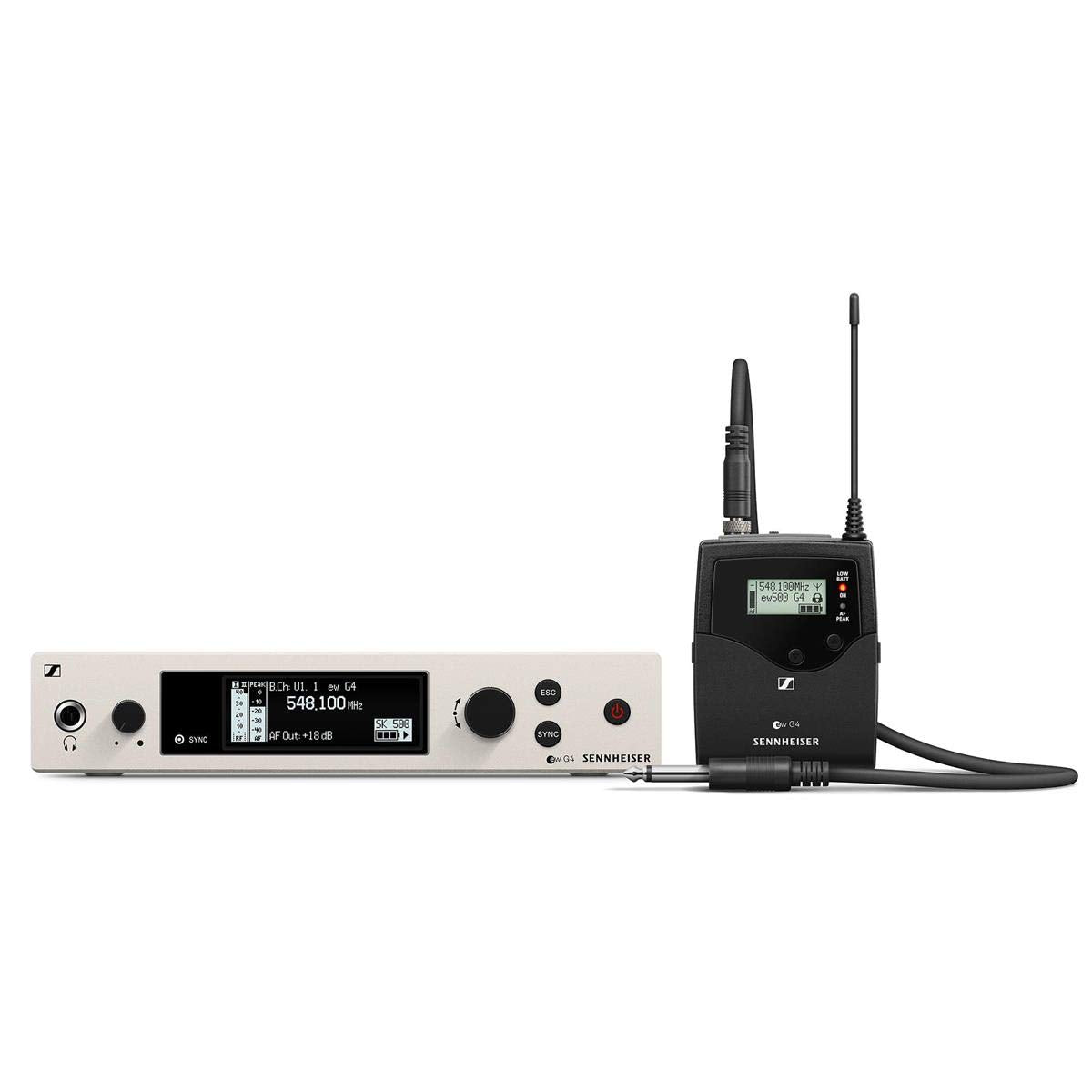

Sennheiser ew 500 G4-CI1-AW+ Wireless Instrument Set

The Sennheiser ew 500 G4-CI1-AW+ Wireless Instrument Set is the pro's choice for premier guitar and bass performances. Trusted by renowned sound engineers, this versatile system provides unparalleled flexibility and impeccable sound quality, essential for handling multi-channel settings on the world's music stages. With up to 88 MHz bandwidth and 32 compatible channels, it's designed for dynamic, high-energy performances featuring complex setups. The inclusion of an ethernet connection for Wireless Systems Manager (WSM) control software ensures advanced frequency coordination, making it perfect for extensive multi-channel applications.

This wireless instrument set stands out for its exceptional stable UHF range, providing a robust and clear signal that musicians can trust. The full-metal housing of the true diversity half-rack receiver and the powerful bodypack transmitter with the Ci1 instrument cable allow for seamless and unforgettable performances. Whether you're a touring musician or managing a large-scale event, the Sennheiser ew 500 G4-CI1-AW+ guarantees reliable operation, outstanding sound, and easy setup, making it a top-tier choice for professional use.

Key Features

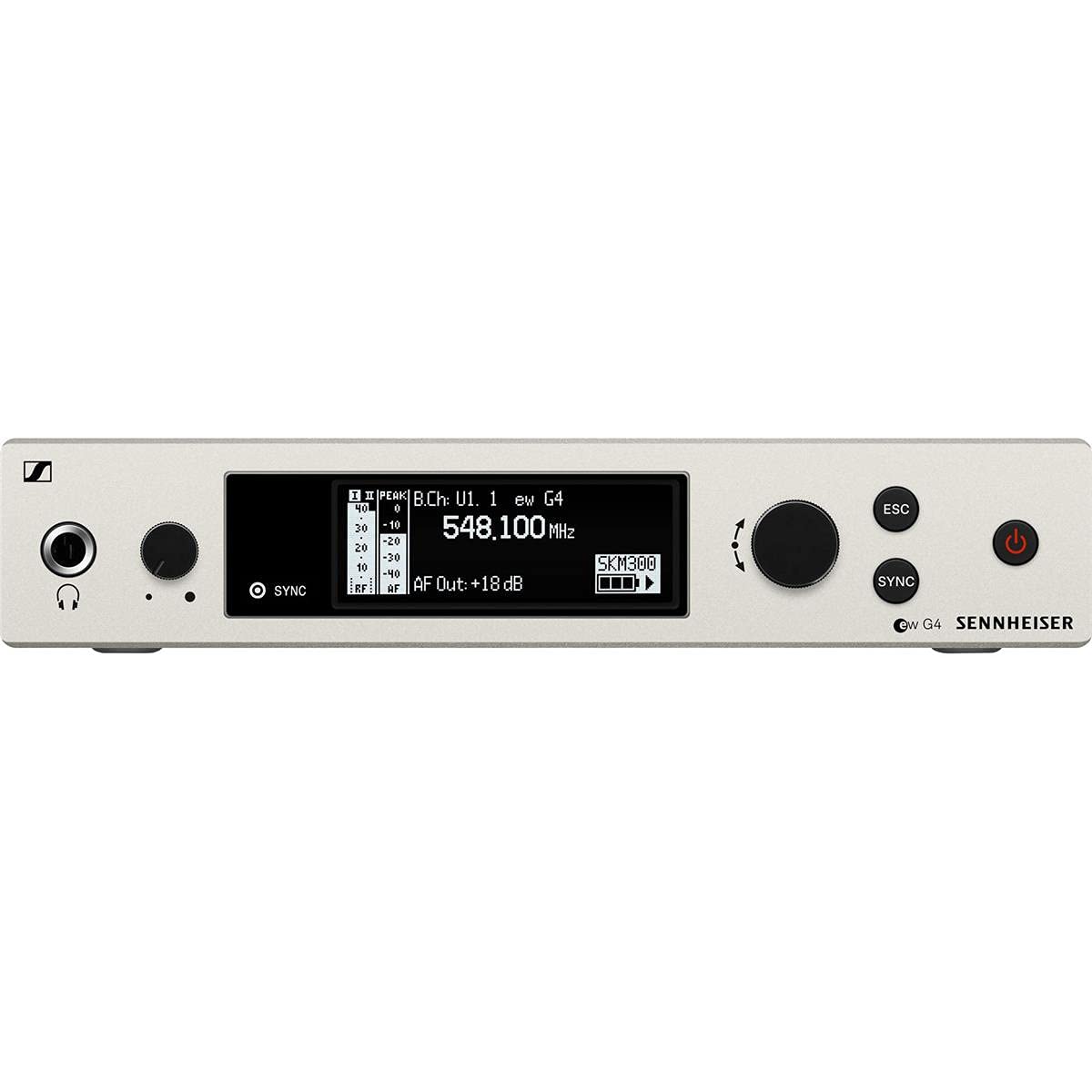

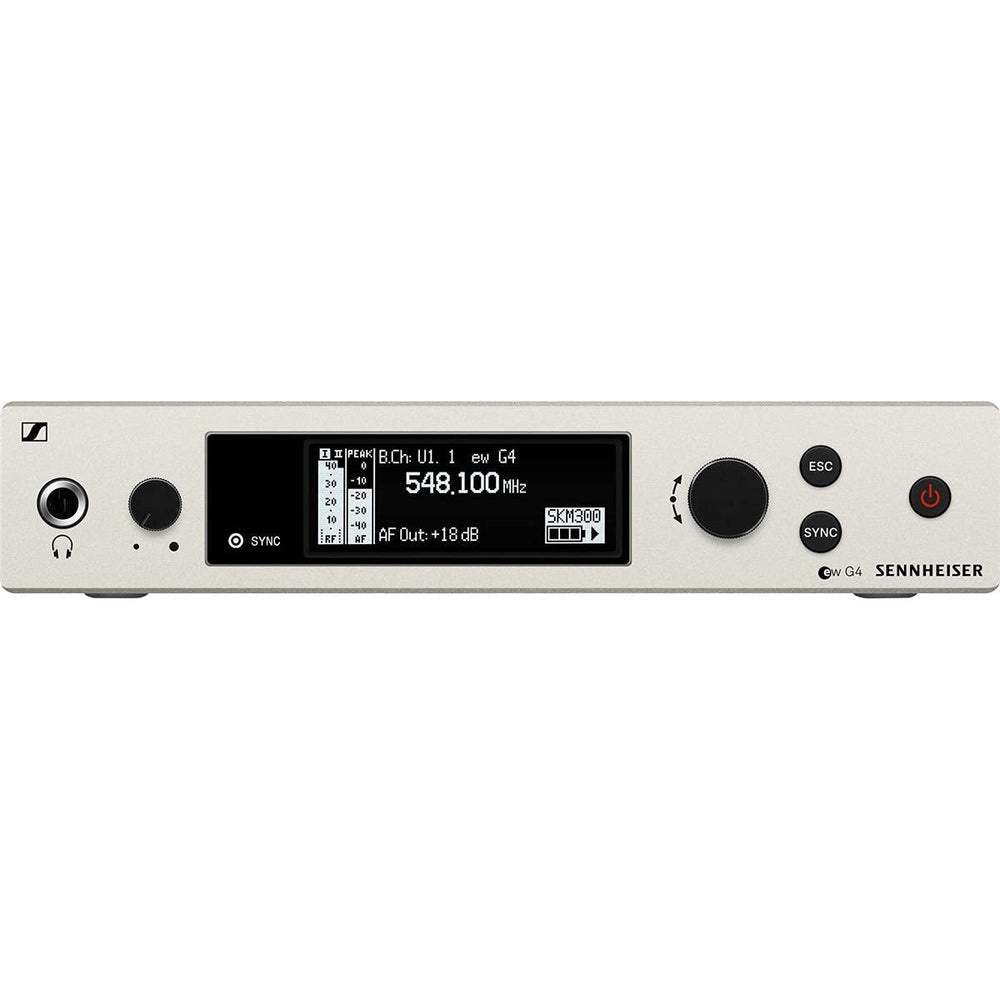

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

Specifications

  • EM 300-500 G4 Dimensions: Approx. 202 x 212 x 43 mm
  • Compander: Sennheiser HDX
  • THD, total harmonic distortion: <= 0.9 %
  • Weight: Approx. 980 g
  • Audio output: 6.3 mm jack socket (unbalanced): +12 dBu, XLR socket (balanced): +18 dBu
  • Signal-to-noise ratio: >= 115 dBA
  • Switching bandwidth: up to 88 MHz
  • Peak deviation: +/-48 kHz
  • Nominal deviation: +/-24 kHz
  • Modulation: Wideband FM
  • Power supply: 12 V DC
  • Antenna connector: 2 BNC sockets
  • Current consumption: 350 mA
  • Adjacent channel rejection: Typically >= 75 dB
  • Intermodulation attenuation: Typically >= 70 dB
  • Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
  • RF sensitivity: < 2.5 mcgV for 52 dBA eff S/N
  • Squelch: 5 to 25 dBmcgV in steps of 2 dB
  • Equalizer: Preset 1: Flat, Preset 2: Low Cut (-3 dB at 180 Hz), Preset 3: Low Cut/High Boost (-3 dB at 180 Hz +6 dB at 10 kHz), Preset 4: High Boost (+6 dB at 10 kHz)
  • Temperature Range: -10 C to +55 C
  • Receiver Principle: True diversity
  • Blocking: >= 75 dB
  • SK 500 G4 Dimensions: Approx. 82 x 64 x 24 mm
  • Compander: Sennheiser HDX
  • THD, total harmonic distortion: <= 0.9 %
  • Weight (incl. batteries): approx. 160 g
  • Signal-to-noise ratio: >= 115 dBA
  • RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
  • Switching bandwidth: up to 88 MHz
  • Peak deviation: +/-48 kHz
  • Nominal deviation: +/-24 kHz
  • Operating time: Typically 8 h
  • Modulation: Wideband FM
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Current consumption: at nominal voltage: typ. 180 mA, with transmitter switched off: <= 25 A
  • Input impedance: 40 k OHM, unbalanced / 1 M OHM
  • Max. Input voltage: 3 Veff
  • Powering: 3 V battery / 2.4 V rechargeable battery
  • Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
  • AF frequency response: Mic: 80 - 18,000 Hz, Line: 25 - 18,000 Hz
  • Temperature Range: -10 C to +55 C
  • Frequency stability: <= +/-15 ppm

Package Contents

  • EM 300-500 G4 true diversity receiver
  • SK 500 G4 bodypack transmitter
  • Ci 1 instrument cable
  • 2 AA batteries
  • GA 3 rackmount set
  • Power supply
  • 2 rod antennas
  • Quick guide
  • Safety guide
  • Manufacturer declaration sheet
