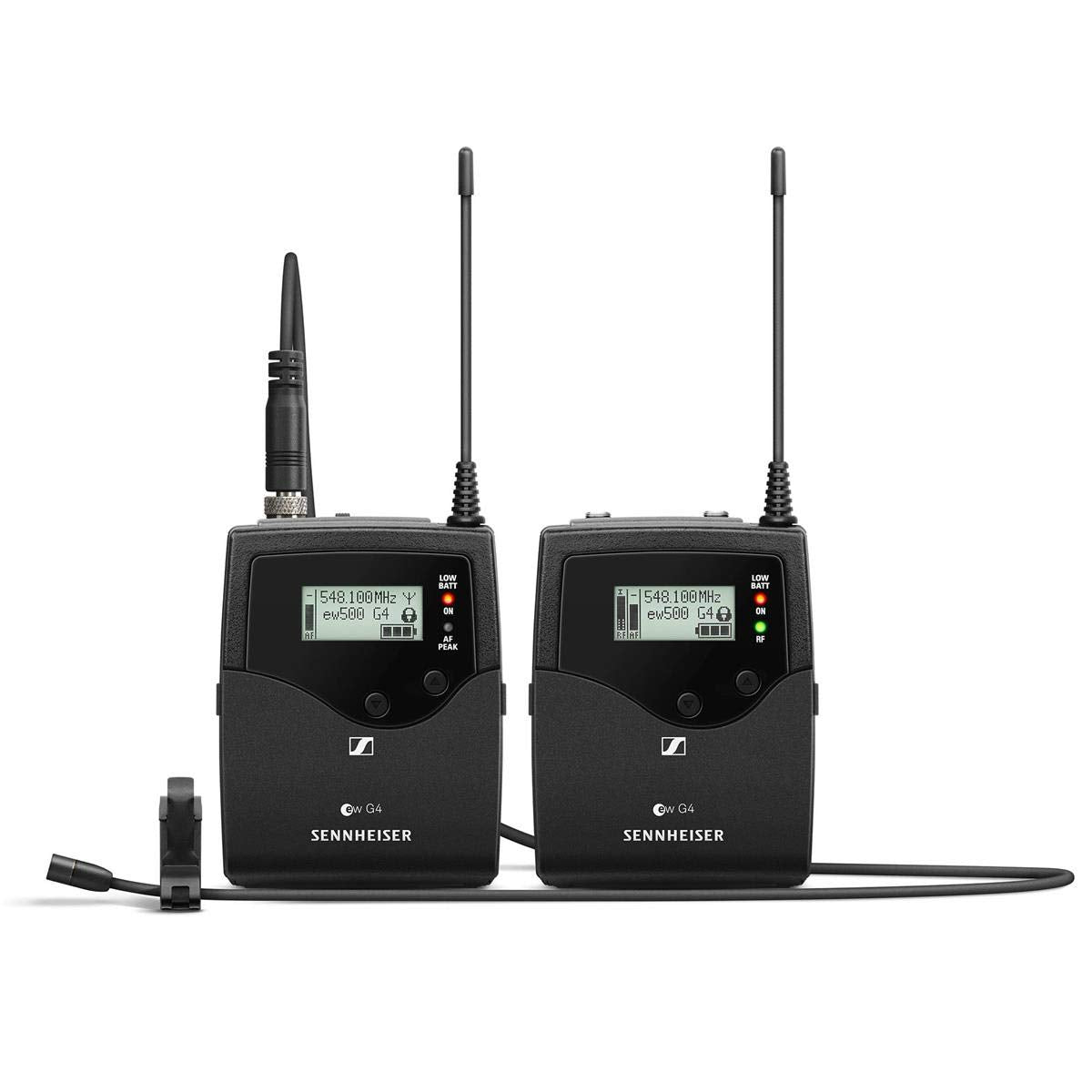

Sennheiser ew 512P G4-GW1 | Portable Lavalier Wireless Set

The Sennheiser ew 512P G4-GW1 Portable Lavalier Wireless Set is the ultimate choice for broadcast-quality sound, offering unparalleled flexibility for video sound and field recording applications. Designed with the professional in mind, this robust wireless microphone system provides exceptional sound quality, ease of use, and a simple mounting process. Creating impressive film sound has never been this effortless. The legendary MKE 2 Gold professional clip-on microphone ensures excellent speech intelligibility, while the portable transmitter and receiver promise up to 8 hours of seamless mobile operation.

Ideal for professional interviews and recordings, the Sennheiser ew 512P G4-GW1 is renowned for its superior construction quality. The easy and flexible wireless synchronization between the transmitter and receiver, achieved via infrared, allows for a fast setup time, making it perfect for busy professionals. With an impressive bandwidth of up to 88 MHz, 32 channels, and a range of up to 100 meters (330 feet), this system delivers remarkable performance in any setting. The increased RF output power (10/30/50 mW) ensures reliable operation across various environments.

Key Features

• Highly versatile solution for professional film sound, interviews, and recordings
• Robust all-in-one wireless system for professional-level audio
• Professional sound quality and excellent construction
• Fast and easy setup time
• Flexible wireless synchronization via infrared between transmitter and receiver
• Bandwidth up to 88 MHz, with up to 32 channels
• Range up to 100 meters / 330 feet
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time

Specifications

• EK 500 G4 Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: <= 0.9 %
• Weight (incl. batteries): approx. 130 g
• Audio output: 3.5 mm jack socket: +17 dBu (mono, unbalanced)
• Signal-to-noise ratio: Line: >= 110 dBA, Phones: approx. 90 dBA
• Switching bandwidth: up to 88 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 140 mA, with receiver switched off: <= 25 A
• Adjacent channel rejection: Typically >= 65 dB
• Intermodulation attenuation: Typically >= 65 dB
• Powering: 3 V battery / 2.4 V rechargeable battery
• Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• RF sensitivity: < 1.6 mcgV for 52 dBA eff S/N
• Squelch: low: 5 dBV, middle: 15 dBV, high: 25 dBmcgV
• Temperature Range: -10 C to +55 C
• Receiver Principle: Adaptive diversity
• Blocking: >= 70 dB

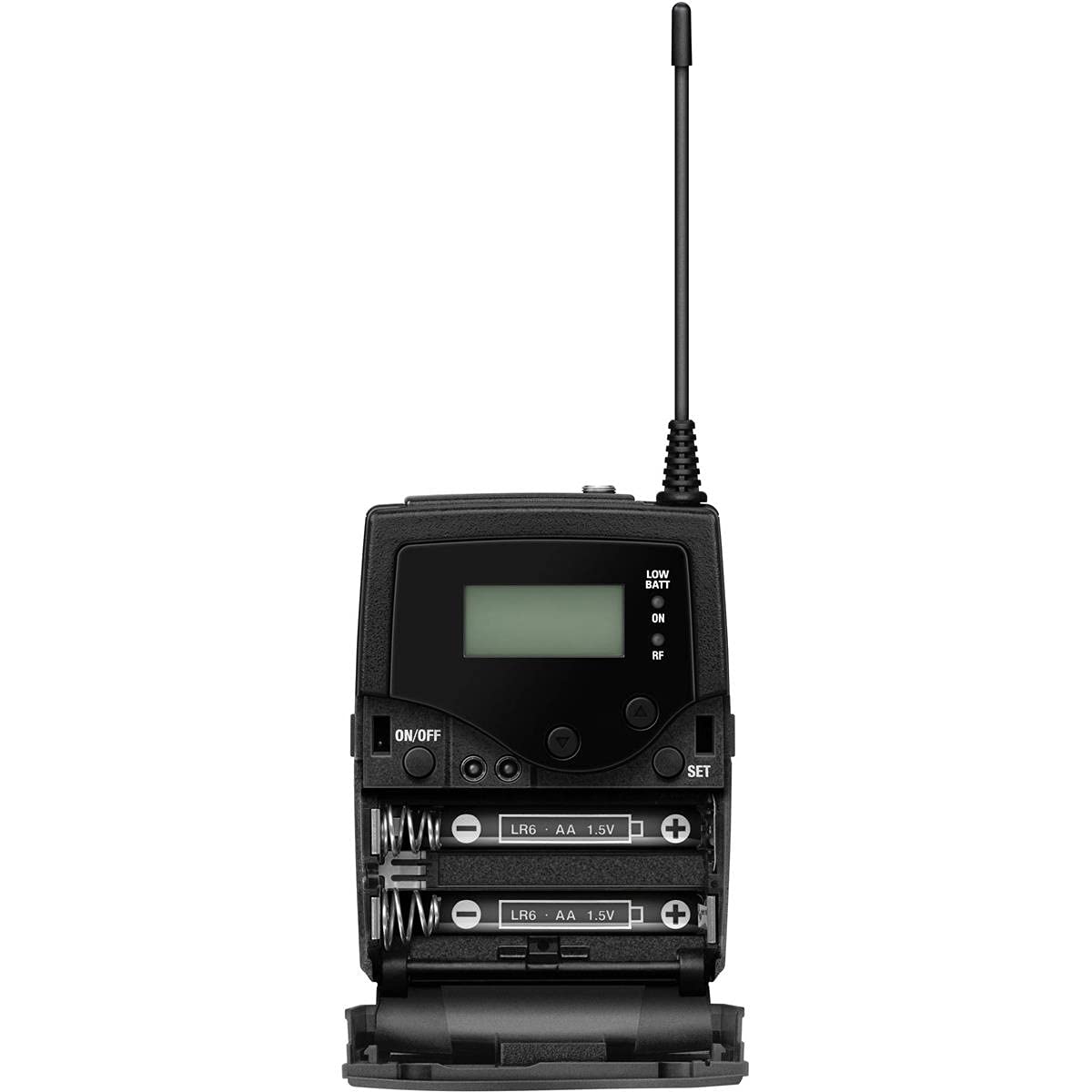

• SK 500 G4 Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: <= 0.9 %
• Weight (incl. batteries): approx. 160 g
• Signal-to-noise ratio: >= 115 dBA
• RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching bandwidth: up to 88 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA, with transmitter switched off: <= 25 A
• Input impedance: 40 k OHM, unbalanced / 1 M OHM
• Max. Input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• AF frequency response: Mic: 80 - 18,000 Hz, Line: 25 - 18,000 Hz
• Temperature Range: -10 C to +55 C
• Frequency stability: <= +/-15 ppm
• MKE 2 Connector: 3.5 mm jack
• Frequency response: 20 to 20.000 Hz +/- 3 dB
• Max. sound pressure level: 142 dB
• Cable length: approx. 1.60 m
• Transducer principle: pre-polarized condensor microphone
• Pick-up pattern: omni-directional
• Sensitivity in free field, no load (1kHz): 5 mV/Pa +/- 3 dB
• Equivalent noise level: 26 dB
• Equivalent noise level weighted as per CCIR 468-3: 39 dB

Package Contents

• EK 500 G4 camera receiver
• SK 500 G4 bodypack transmitter
• MKE 2 clip-on microphone
• 4 AA batteries
• CL 1 3.5 mm jack cable
• CL 500 XLR to 3.5 mm jack adapter cable
• CA 2 camera adapter
• Fur windscreen for MKE 2
• Quick guide
• Safety guide
• Manufacturer declaration sheet
