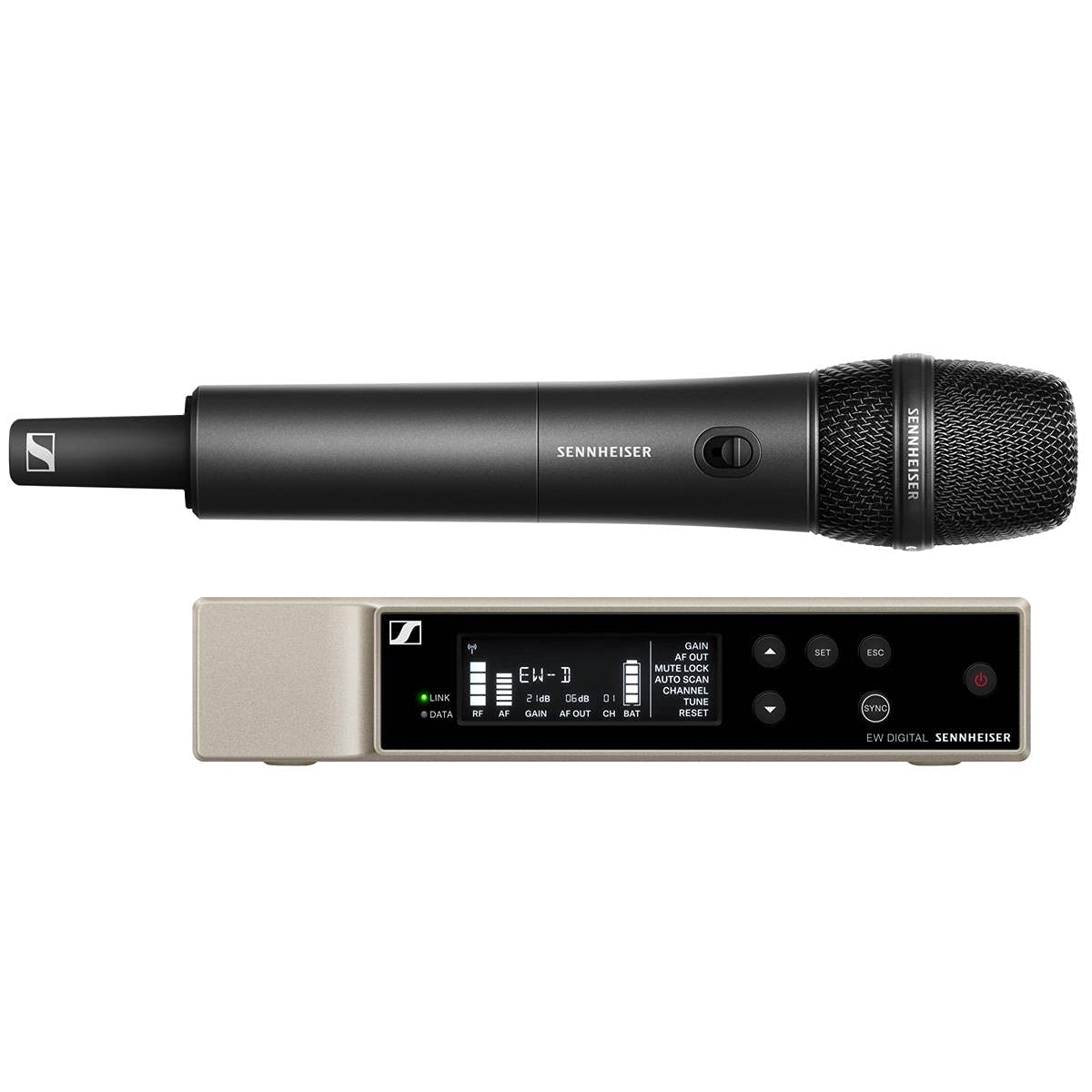

Sennheiser EW-D 835-S SET R1-6 All-In-One Digital Wireless Handheld System, 520-576 MHz

The Sennheiser EW-D 835-S SET R1-6 All-In-One Digital Wireless Handheld System, operating within the 520-576 MHz frequency range, is a versatile and feature-rich digital wireless system designed for musicians, speakers, and performers. This system ensures seamless product pairing and management through the EW-D Smart Assist App, making it ideal for dynamic environments where reliability and sound quality are paramount.

Featuring Sennheiser’s renowned e 835 capsule, the lightweight handheld transmitter comes with an integrated mute switch, ensuring that every performance is crisp and clear. The digital wireless technology used in this system eliminates noise, interference, and static bursts, offering state-of-the-art live sound that preserves every detail of even the most dynamic performances.

The Sennheiser EW-D 835-S SET is engineered for ease of use with automated setup processes that create reliable connections quickly, reducing downtime. With up to 2,240 selectable frequencies and the ability to support up to 24 wireless systems per frequency range, this system offers unmatched flexibility and scalability, making it perfect for large events or multifaceted installations. The lithium-ion battery pack allows for up to 12 hours of operation, ensuring prolonged use without frequent recharging.

Key Features

• Digital wireless eliminates noise, interference, and static bursts
• UHF transmission enhances range, reliability, and scalability
• Mobile App streamlines setup and operation, eliminating complicated menus
• Automated setup creates reliable connections with minimal time and effort
• Up to 2,240 selectable frequencies support up to 24 wireless systems per frequency range
• Lithium Ion battery pack delivers up to 12 hours of operation
• 56 MHz Bandwidth allows for up to 90 channels
• Preserves every detail with 134 dB transmitter dynamic range

Specifications

• Frequency range: 520 - 576 MHz
• THD, total harmonic distortion: -60 dB for 1 kHz @ -3 dBfs input level
• Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Operating relative humidity: 5 - 95 % (non-condensing)
• Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
• EW-D EM Dimensions: 212 x 44 x 189 mm
• Weight: approx. 1000 g (without antennas and power supply)
• Current consumption: 300 mA
• Input voltage range: 11 - 13 V
• Audio output level: 18 dBu max.
• Transmission power: BLE: max. 10 mW EIRP
• MMD 835 Dimensions: 405 x 350 x 73 mm
• Sound pressure level (SPL): 154 dB
• Transducer principle: dynamic
• Weight: 3.1 kg
• Pick-up pattern: cardioid
• Sensitivity: 2.1 mV/Pa
• EW-D SKM-S Weight: approx. 304 g (incl. MMD 835 microphone module) approx. 195 g (without microphone module)
• Power supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
• Current consumption: < 300 mA
• Input voltage range: 2.0 - 4.35 V
• Transmission power: Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP
• Dimensions: 50 x 268 mm (incl. MMD 835 microphone module) 40 x 200 mm (without microphone module)

Package Contents

• Sennheiser EW-D 835-S SET Handheld Transmitter
• e 835 Microphone Capsule

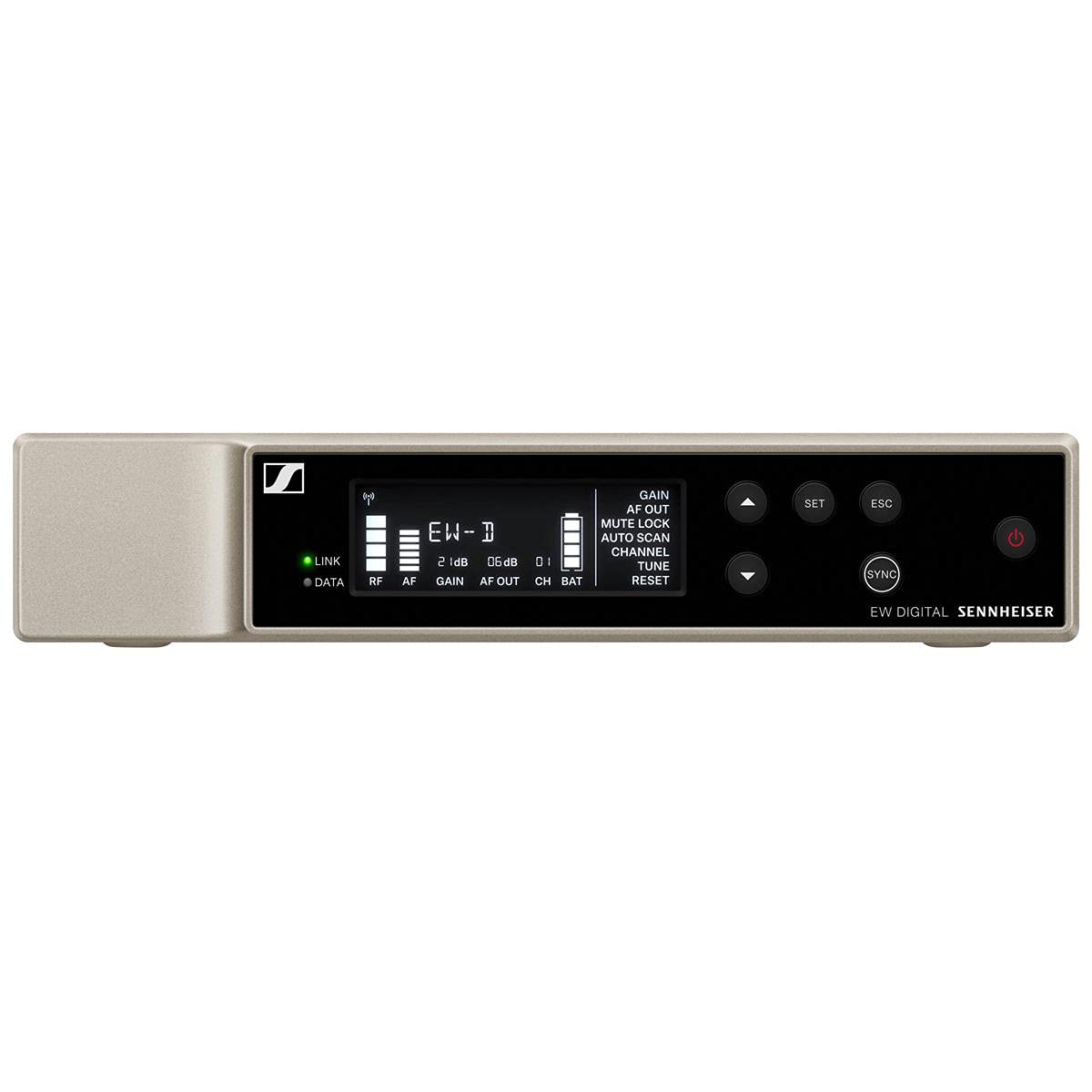

• EW-D EM Receiver
• Lithium-Ion Battery Pack
• Power Supply
• User Manual
• Carrying Case
