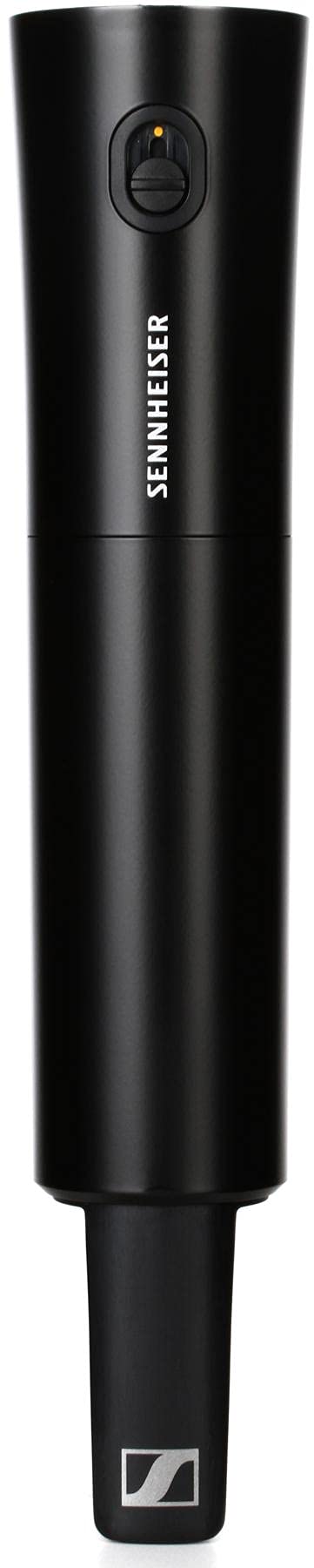

Sennheiser EW-D SKM-S R1-6 Rugged and Versatile Handheld Transmitter, 520-576 MHz

Introducing the Sennheiser EW-D SKM-S R1-6, a rugged and versatile handheld transmitter designed to deliver exceptional audio quality for singers, speakers, and instrumentalists. Operating within the 520-576 MHz frequency range, this cutting-edge digital wireless system ensures seamless product pairing and straightforward management via the intuitive EW-D Smart Assist App. The EW-D SKM-S R1-6 is compatible with a wide range of Sennheiser and Neumann microphone capsules, making it an ideal choice for various performance settings.

With Sennheiser’s digital wireless technology, the EW-D SKM-S R1-6 eliminates noise, interference, and static bursts, providing a seamless and reliable audio experience. The UHF transmission offers enhanced range, reliability, and scalability, making it suitable for both small venues and large stages. The automated setup feature allows for quick and reliable connections, saving time and effort, while up to 2,240 selectable frequencies support up to 24 wireless systems per frequency range. Whether you're performing dynamic vocal solos or intricate instrumentals, this transmitter preserves every detail with its impressive 134 dB transmitter dynamic range.

The EW-D SKM-S R1-6 boasts a sturdy all-metal housing, ensuring durability for regular use. It offers up to 12 hours of operation with the lithium-ion battery pack and up to 8 hours with AA batteries, providing ample performance time. The inclusion of the EW-D Smart Assist App further streamlines setup and operation, eliminating the need for complicated menus and offering a user-friendly experience.

Key Features

• Digital wireless eliminates noise, interference, and static bursts
• UHF transmission for enhanced range, reliability, and scalability
• Mobile App streamlines setup and operation
• Automated setup for reliable connections with minimal effort
• 2,240 selectable frequencies supporting up to 24 wireless systems per frequency range
• 56 MHz Bandwidth supports up to 90 channels
• 134 dB transmitter dynamic range for detailed performances
• Compatible with various Sennheiser and Neumann microphone capsules
• Lithium-ion battery pack provides up to 12 hours of operation
• All-metal housing for durability

Specifications

• Frequency range: 470.2 - 526 MHz
• THD (Total Harmonic Distortion): -60 dB for 1 kHz @ -3 dBfs input level
• Weight: Approx. 304 g (with MMD 835 microphone module), Approx. 195 g (without microphone module)
• Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
• Power supply: 2 AA batteries (1.5 V) or BA 70 rechargeable battery pack
• Current consumption: < 300 mA
• Input voltage range: 2.0 - 4.35 V
• Transmission power: 10 mW ERP (Audio link), max. 10 mW EIRP (BLE)
• Operating relative humidity: 5% - 95% (non-condensing)
• Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
• Dimensions: 50 x 268 mm (with MMD 835 microphone module), 40 x 200 mm (without microphone module)

Package Contents

• Sennheiser EW-D SKM-S R1-6 Handheld Transmitter
• MMD 835 Microphone Module
• BA 70 Rechargeable Battery Pack
• 2 AA Batteries
• User Manual
