Sennheiser EW-DP 835 SET: Your Ultimate Portable Digital UHF Wireless Handheld Microphone System

The Sennheiser EW-DP 835 SET is a state-of-the-art portable digital UHF wireless handheld microphone system designed to deliver unparalleled audio quality and workflow efficiency for professionals in the fields of filmmaking, content creation, and broadcasting. Leveraging the robust nature of UHF transmission combined with the clarity and precision of digital technology, this system is engineered to capture every nuance of sound with impeccable accuracy, even in challenging environments.

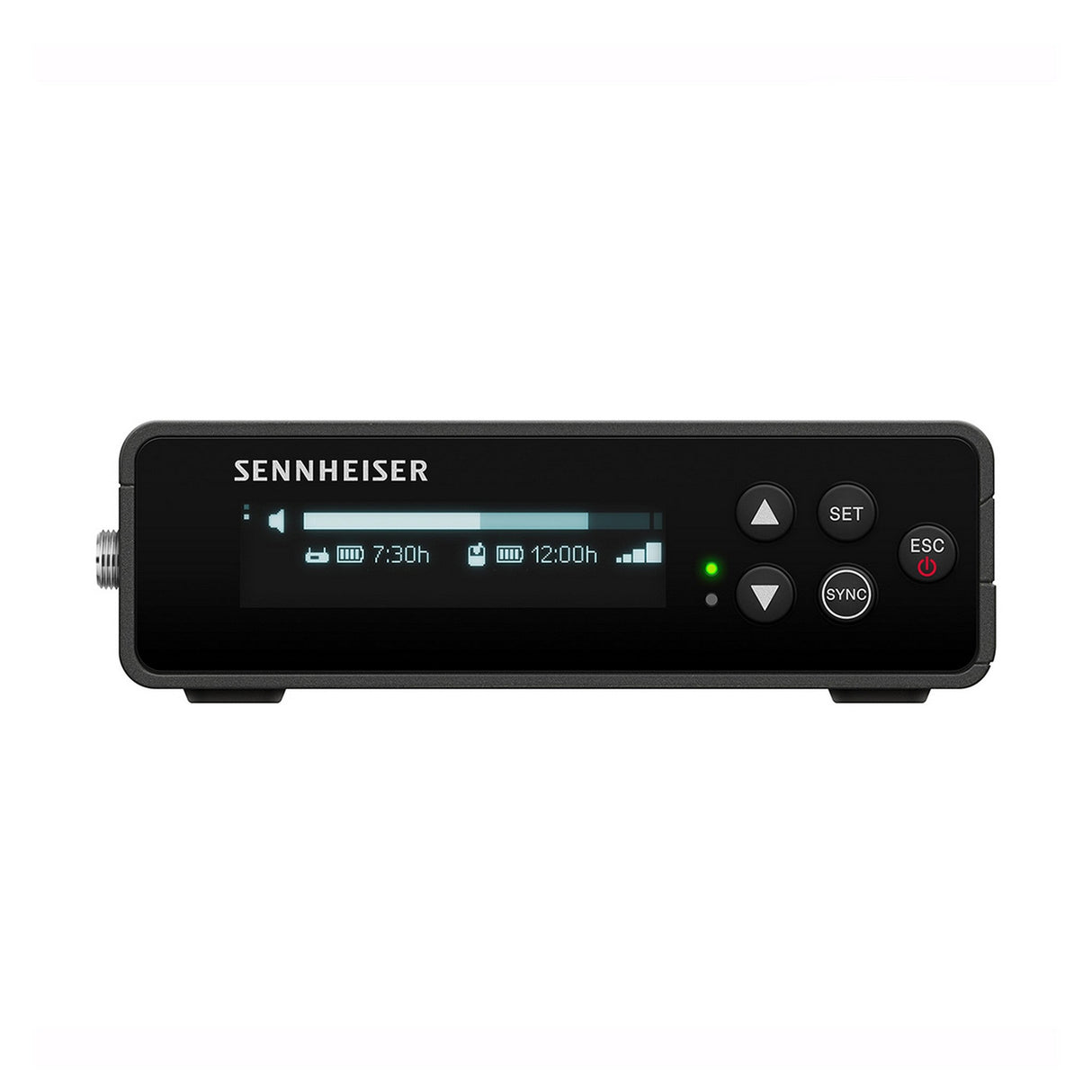

Central to the EW-DP system is its compact digital receiver, which is built to provide an intuitive user experience. It features Bluetooth synchronization and can be controlled via the Smart Assist app, making setup and operation a breeze. With a front-facing OLED display for easy menu navigation and Smart Notifications to help troubleshoot any issues, this system ensures that you can focus on what you do best—creating content. The magnetic and stackable design allows for seamless integration into your camera setup, and multiple powering options including USB-C, rechargeable batteries, and AA cells offer the flexibility needed for all-day shoots.

The EW-DP 835 SET comes complete with the SKM-S handheld transmitter and the MMD 835 cardioid dynamic microphone module, tailored for on-camera interviews and capturing isolated dialogue in noisy settings. Whether you are operating in a crowded cityscape or a quiet studio, this system is designed to deliver consistent, high-quality audio performance that meets the demands of modern-day content production.

Key Features

• Fully digital UHF wireless microphone system for superior audio fidelity
• Integrated Bluetooth for quick synchronization and control
• Smart Notifications for real-time troubleshooting and system guidance
• Extended battery life: up to 12 hours on the transmitter, 7 hours on the receiver
• Magnetically stackable components for versatile and secure mounting
• 134 dB input dynamic range for distortion-free audio capture
• Up to 56 MHz bandwidth for adaptability in various RF environments
• Exceptionally low latency: just 1.9 ms
• External charging and powering via USB-C port (receiver only)
• Smart Assist app for monitoring and control
• Optional plug-on transmitter with XLR and 3.5 mm inputs +48V phantom power, and microSD recording (ENG Set or component only)

Specifications

• Audio Link Frequency Ranges: Q1-6: 470.2 - 526 MHz, R1-6: 520 - 576 MHz, R4-9: 552 - 607.8 MHz
• Bluetooth Low Energy (BLE) Frequency Range: 2402 - 2480 MHz
• Audio Frequency Response: 20 Hz - 20 kHz at 3 dBfs
• Audio THD: <= -60 dB for 1 kHz at -3 dBfs input level
• Dynamic Range: 134 dB
• System Latency: 1.9 ms
• Operating Temperature: -10 °C to +55 °C (14 °F to 131 °F)
• Relative Air Humidity: 5 - 95% (non-condensing)
• Dimensions: 86 x 67 x 28 mm (3.39 in x 2.64 in x 1.1 in)
• Weight (without antennas and power supply): approx. 140g (0.31 lbs)

Package Contents

• EW-DP EK digital portable single channel receiver
• EW-D SKM-S digital handheld transmitter
• MMD 835 dynamic cardioid microphone module
• Mounting kit (cheese plate, cold shoe, belt clip and screws)
• BA 70 li-ion battery and (2) AA batteries
• Locking 3.5 mm TRS to 3.5 mm TRS cable
• Locking 3.5 mm TRS to XLR plug cable
• USB-C charging cable
