Sennheiser EW-DX SK / SKM-S Base Set Wireless Handheld Microphone System, V5-7 941.700-959.650 MHz

The Sennheiser EW-DX SK / SKM-S Base Set Wireless Handheld Microphone System is an all-encompassing digital UHF system designed to elevate your professional communication needs. Ideal for educational institutions, corporate campuses, and live productions, this system is engineered to simplify complex workflows, thanks to Sennheiser’s decades-long expertise in audio technology. With its modular design and advanced feature set, including network-readiness and seamless integration capabilities, the EW-DX offers unparalleled versatility and reliability.

Engineered for ease of use and adaptability, the EW-DX system quickly scans your environment to allocate frequencies automatically, even if you lack RF knowledge. The system's equidistant channel spacing ensures interference-free operation, while the Sennheiser Control Cockpit, Wireless System Manager, and Smart Assist App provide remote monitoring and control capabilities. Featuring in-device charging, 12-hour battery operation, and up to 88 MHz switching bandwidth, the EW-DX is the ultimate solution for robust and reliable communication needs.

Whether you're a seasoned professional or a newcomer to digital wireless technology, the Sennheiser EW-DX empowers you to choose the best microphone capsule for your specific requirements. This base set includes a 2-channel receiver, a handheld transmitter, and a bodypack transmitter compatible with various Evolution Wireless Digital microphone heads. Elevated functionality is guaranteed with features like an astounding 134 dB input dynamic range, low latency of 1.9 ms, and secure AES 256 encryption, ensuring flawless performance and sound quality.

Key Features

• 134 dB input dynamic range for seamless sound capture
• AutoScan feature for automatic frequency deployment
• Network-enabled for remote control via Sennheiser Control Cockpit and Wireless System Manager (WSM)
• Remote control via Smart Assist App over Bluetooth Low Energy (BLE)
• Secure AES 256 encrypted transmission
• Up to 12 hours of operation with rechargeable lithium-ion battery
• Persistent E-Ink display for uninterrupted information
• Equidistant channel spacing: standard and Link Density (LD) modes
• Low latency of 1.9 ms wireless transmission
• Compatible with a wide range of Sennheiser and Neumann capsules
• Versatile charging options (sold separately)
• Worldwide usage

Specifications

• Audio link frequency ranges: V5-7: 941.700-951.800, 953.050-956.050, 956.650-959.650 MHz
• Bluethooth Low Energy (BLE) frequency range: 2405 - 2480 MHz
• Audio frequency response: 20 Hz - 20 kHz
• Total harmonic distortion (THD): -60 dB for 1 kHz
• Dynamic range: 134 dB
• System Latency: 1.9 ms
• Operating temperature: -10°C to +55°C
• Operating relative humidity: 5% - 95% (non-condensing)
• Input voltage range: 11 - 13 V - or PoE IEEE 802.3af Class 0
• Weight of receiver: approx. 1000 g (2.2 lbs)
• Weight of handheld transmitter: approx. 304 g
• Weight of bodypack transmitter: approx. 120 g
• Dimensions of receiver: 212 x 44 x 189 mm
• Dimensions of handheld transmitter: 50 x 268 mm
• Dimensions of bodypack transmitter: 63 x 80 x 20 mm

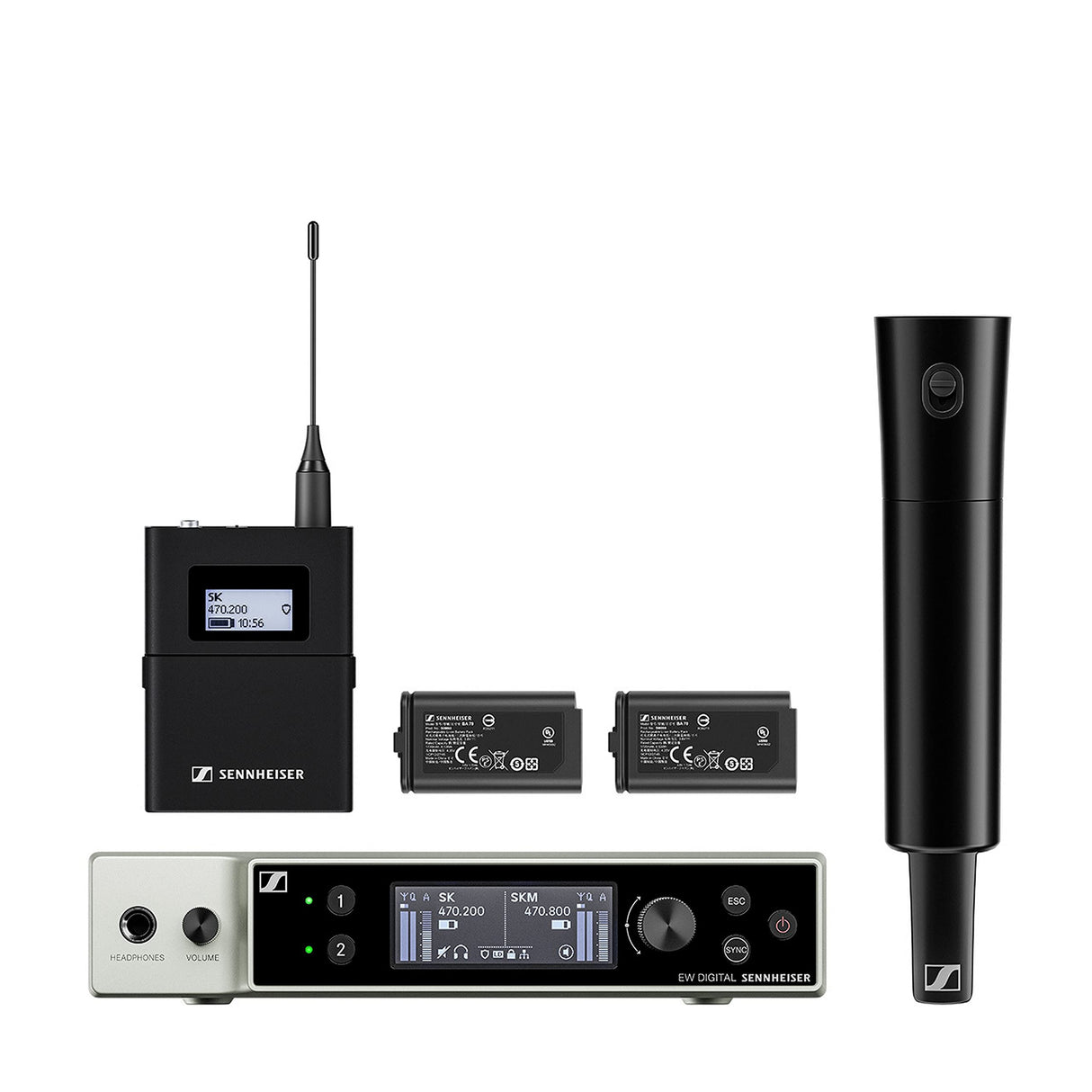

Package Contents

• EW-DX EM 2 rack receiver
• EW-DX SKM-S handheld transmitter
• EW-DX SK bodypack transmitter
• EW-D Power Supply with country adapters
• 2 BA 70 rechargeable battery packs
• MZQ 1 microphone clamp
• 2 rod antennas
• GA 3 rack mount Kit
• 4 rubber feet
