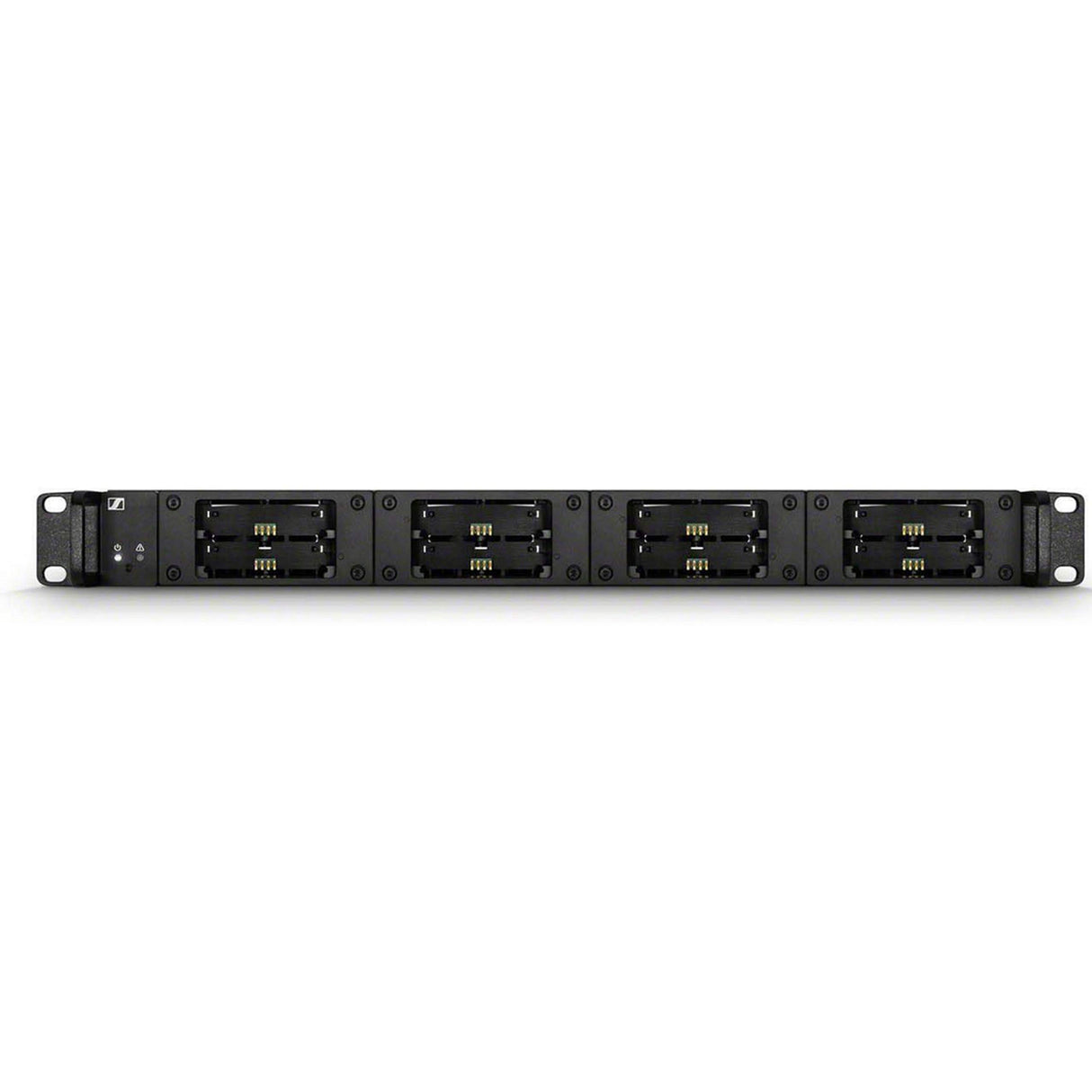

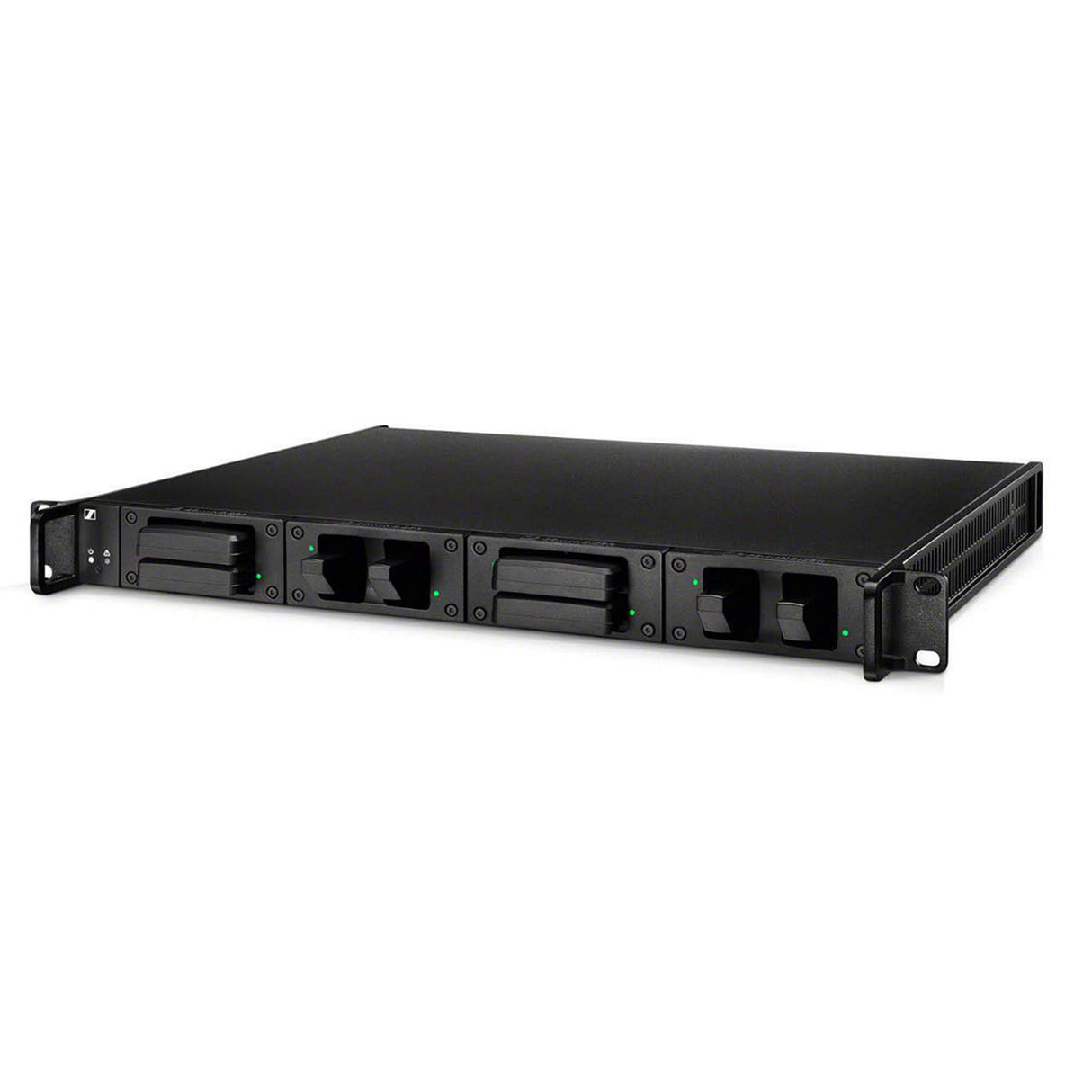

Sennheiser L 6000 Charging Station for Digital 6000 and 9000 Series

The Sennheiser L 6000 Charging Station is the epitome of practical, central, and intelligent power solutions for your digital wireless systems. Designed specifically for the Digital 6000 and 9000 Series, this 19-inch 1 RU charging station consolidates power delivery efficiently within your rack setup. With its new 2020 version, it now includes power cables compatible with US, EU, and UK outlets, making it an ideal choice for international touring professionals.

The L 6000 charging station supports up to four interchangeable charging modules, each capable of charging two bodypack or handheld battery packs. This flexibility translates to a total of eight charging ports, catering to battery packs BA 60, BA 61, or BA 62. Its three-color LED indicators offer an immediate overview of the charging status, while the intelligent control system prevents heat buildup and optimizes battery charging for extended storage periods.

The modular design of the Sennheiser L 6000 ensures future-proofing, allowing for easy upgrades to accommodate new battery pack types. Advanced details about temperature, remaining charging time, run times, charging cycles, and battery quality can be monitored via the Wireless Systems Manager (WSM). This combination of functionality and versatility positions the L 6000 as a must-have charging solution for any professional audio setup.

Key Features

• 19-inch charging station in 1 RU
• Flexible configurations with loading modules for handheld transmitters or bodypack battery packs (Digital 6000 and Digital 9000)
• Quick overview of charging status with three-color LEDs
• Intelligent charging control with four fans for optimum cooling
• Storage mode keeps battery packs in optimum charge condition for longer storage periods
• Integrates into the Wireless Systems Manager

Specifications

• Dimensions: 44 x 483 x 373 mm
• Weight: 5.1 kg
• Charging time: BA 60 80%: approx. 1:15 h (approx. 4:45 h operating time); 100%: approx. 2:00 h
• BA 61 80%: approx. 1:45 h (approx. 5:00 h operating time); 100%: approx. 3:15 h
• Power consumption: Max. 85 W; Min. 1 W
• Power supply: 100 - 240 V AC, 50/60 Hz
• Capacity: Up to 8 battery packs (BA 60 and BA 61) via 4 exchangeable charging modules (LM 6060 and LM 6061)
• Operating relative humidity: Max. 90% at 40°C
• Charging Current: 2 A
• Display: Multi-colored
• Network protocol: IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection
• Temperature Range: Charging: 0 - 50°C; Ambient: -10 - 50°C
• Charging voltage: 4.2 V
• Power plug: 3-pin, protection class I as per IEC/EN 60320-1
• Average discharge current: 0.15 A
• Water Protection Code: The product must not be exposed to dripping and splashing (IP2X)

Package Contents

• Sennheiser L 6000 Charging Station
• Power cables for US, EU, and UK
