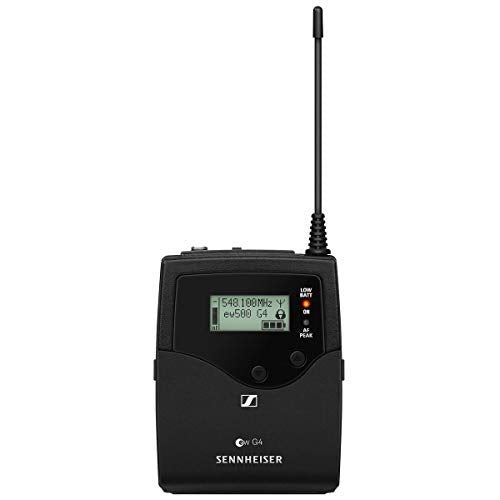

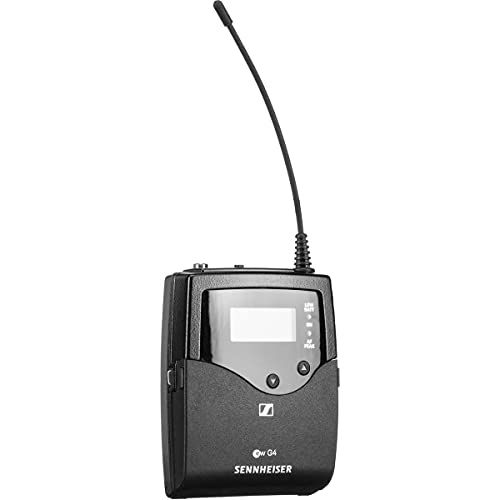

Sennheiser SK 500 G4-AW+ | Bodypack Transmitter

The Sennheiser SK 500 G4-AW+ Bodypack Transmitter is a powerful and versatile device designed to meet the needs of professional musicians, presenters, and live sound engineers. With increased bandwidth and transmission power, this bodypack transmitter is engineered to excel on the world's biggest stages, ensuring clear, interference-free audio transmission. Whether you are navigating the complexities of a multi-channel setup or requiring flexible wireless synchronization, the Sennheiser SK 500 G4-AW+ delivers unmatched performance.

Boasting up to 88 MHz bandwidth and 3520 selectable frequencies, this transmitter operates within a stable UHF range for the most reliable signal strength. With support for up to 32 compatible channels and an adjustable RF output power of up to 50 mW, audio professionals can experience unparalleled flexibility and control. The inclusion of Ethernet connectivity for Wireless Systems Manager (WSM) control software further enhances the capability for advanced frequency coordination, making it a valuable tool for complex, multi-channel setups.

Equipped with a user-friendly interface and designed with high durability, the Sennheiser SK 500 G4-AW+ Bodypack Transmitter ensures seamless operation, making it perfect for both indoor and outdoor events. This advanced transmitter blends top-tier technology with ease of use, setting a new standard in wireless audio transmission.

Key Features

• Powerful bodypack transmitter with increased bandwidth and transmission power
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Supports up to 32 compatible channels
• Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
• Adjustable RF output power (up to 50 mW) depending on country regulations

Specifications

• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: <= 0.9%
• Weight (incl. batteries): Approx. 160 g
• Signal-to-noise ratio: >= 115 dBA
• RF output power: Switchable - Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching bandwidth: Up to 88 MHz
• Peak deviation: +/- 48 kHz
• Nominal deviation: +/- 24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: At nominal voltage: typ. 180 mA; with transmitter switched off: <= 25 A
• Input impedance: 40 k OHM, unbalanced / 1 M OHM
• Max. input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps; 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation; 6 frequency banks with up to 32 programmable channels
• AF frequency response: Mic: 80 - 18,000 Hz; Line: 25 - 18,000 Hz
• Temperature Range: -10°C to +55°C
• Frequency stability: <= +/- 15 ppm

Package Contents

• SK 500 G4 bodypack transmitter
• 2 AA batteries
• Pouch
• Quick guide
• Safety guide
• Manufacturer declaration sheet
