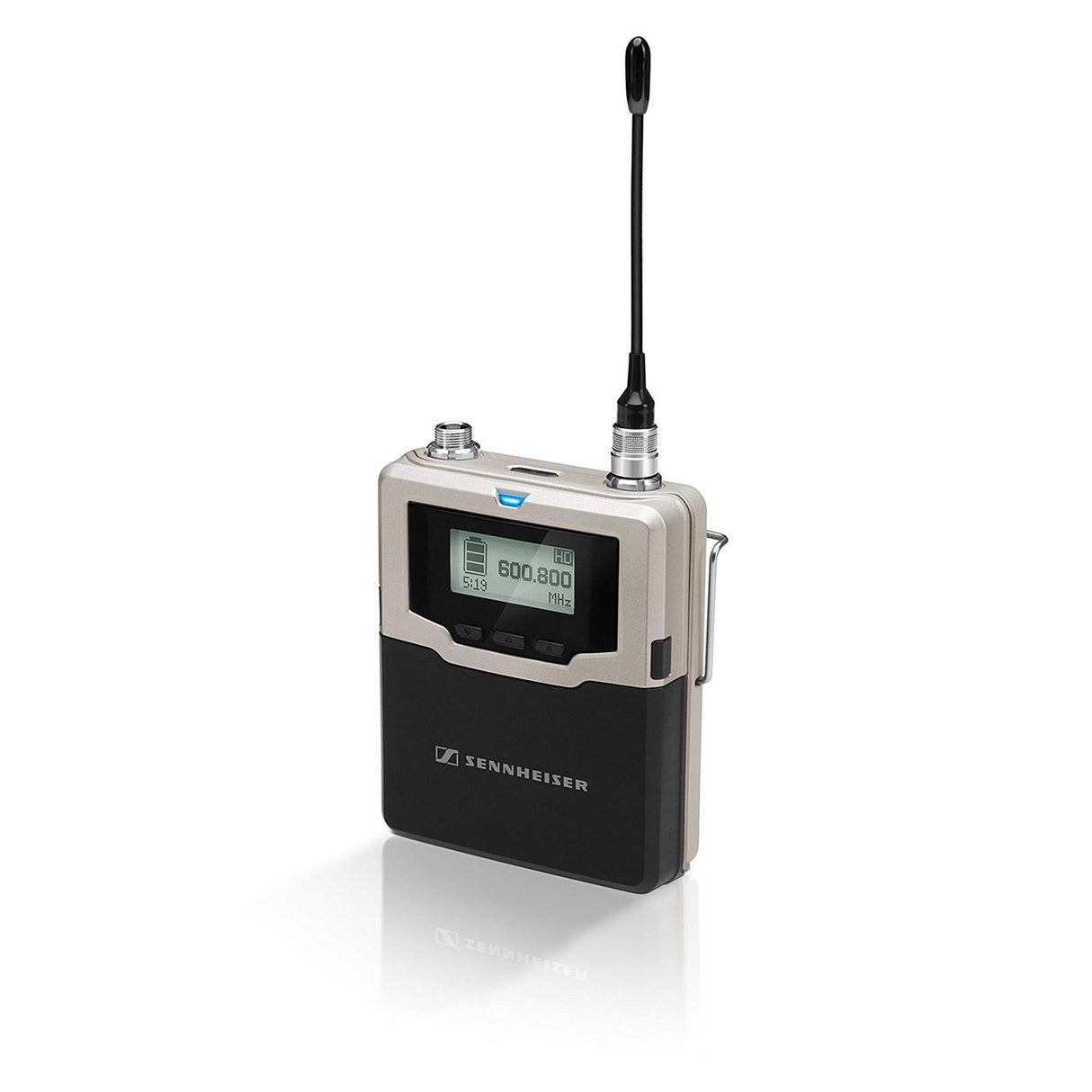

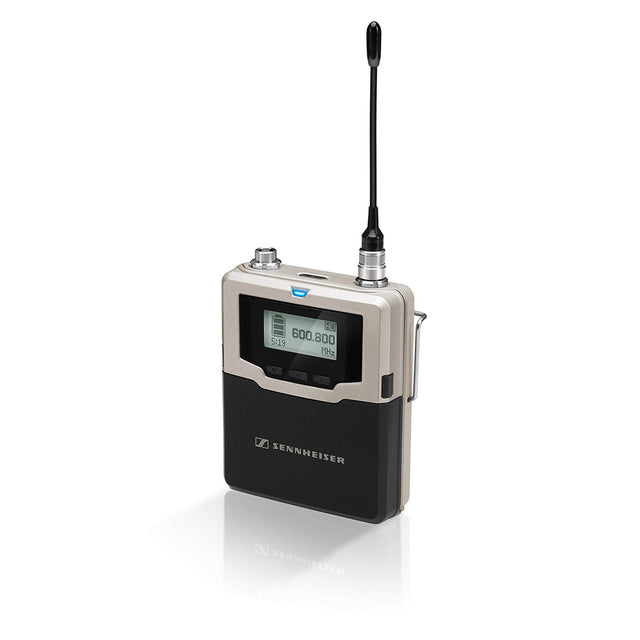

Sennheiser SK 9000 A5-A8 US Digital Wireless Bodypack Transmitter

The Sennheiser SK 9000 A5-A8 US Digital Wireless Bodypack Transmitter is a compact, lightweight, and powerful solution for pristine sound transmission even under the toughest conditions. Crafted with a die-cast magnesium housing, this bodypack transmitter is both robust and lightweight, ensuring it can withstand the rigors of frequent use without adding extra weight. It is equipped with a versatile 3-pin Lemo socket, making it compatible with lavalier microphones, line, and instrument signals, offering cable-like audio transmission irrespective of the sound source.

Ease of use and security were the guiding principles behind the user interface design. The intuitive icon-based menu structure ensures straightforward navigation, while infrared synchronization with the receiver simplifies the setup process. The SK 9000 uses exchangeable energy packs with eco-friendly Lithium-Ion technology, significantly extending operating time and reducing the environmental impact by eliminating the need for disposable batteries.

Key Features

• Flexible use for a broad variety of audio sources
• 3-pin Lemo connector compatible with lavalier microphones, guitars, and instruments
• Robust and lightweight design, easy to conceal in a costume
• Bodypack transmitter with durable die-cast magnesium housing
• Intuitive icon-based menu structure
• Infrared synchronization with the receiver for quick and efficient setup
• Utilizes exchangeable energy packs with eco-friendly Lithium-Ion technology

Specifications

• Dimensions: 76 x 62 x 20 mm (L x W x D with rechargeable battery pack BA 61)
• Frequency response (Mic): 60-20000 Hz (3 dB)
• Weight: approx. 147 g (with rechargeable battery pack BA 61 and belt clip)
• Audio input: 3-pin socket
• Power consumption: Max. 960 mW
• RF output power: Mode LR: 25 mW rms, 50 mW en crte
• Switching bandwidth: 88 MHz
• Operating time: 6.5 hours with rechargeable battery pack BA 61
• Modulation: Mode HD: uncompressed audio, Mode LR: SeDAC (Sennheiser Digital Audio Codec)
• Power supply: B 61: Primary cells, Type AA, BA 61: Rechargeable battery pack
• Antenna connector: Coaxial
• Gain: line: -6 dB
• Frequency range: A1-A4: 470-558 MHz, A5-A8 US: 550-607.9 MHz
• Input impedance: line: 1 M OHM/n

Package Contents

• Sennheiser SK 9000 A5-A8 US Digital Wireless Bodypack Transmitter
• Rechargeable battery pack BA 61
• Belt clip
• User manual
