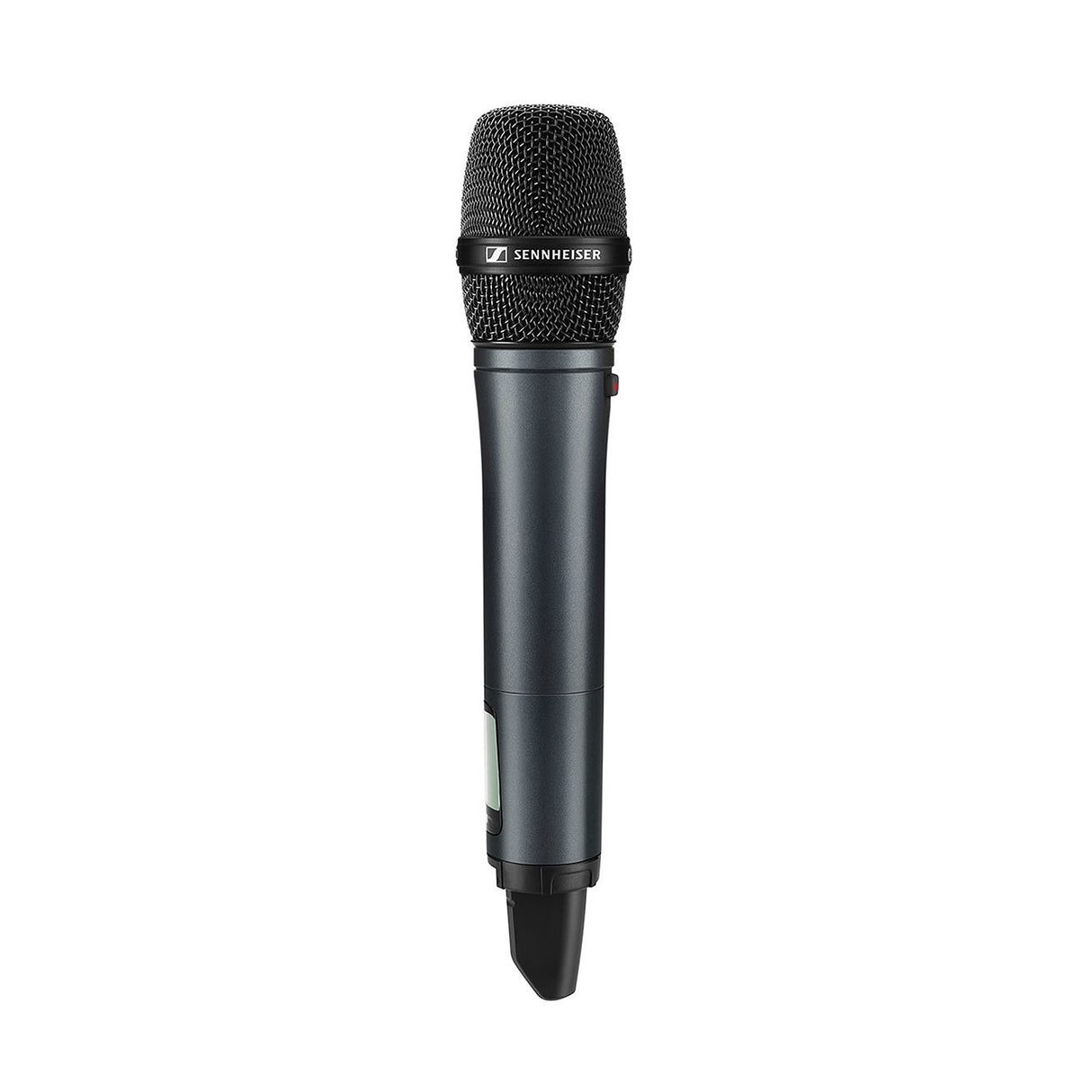

Sennheiser SKM 100-835 G4-S-G Handheld Transmitter with Mute Switch and MMD 835-1 BK Capsule, 566 - 608 MHz

Experience unparalleled audio performance with the Sennheiser SKM 100-835 G4-S-G Handheld Transmitter. This advanced handheld transmitter is engineered to be part of the evolution wireless G4 100 Series systems, delivering robust, interference-free audio transmission. Housed in a lightweight yet durable aluminum casing, it boasts an integrated mute switch for seamless operation. Whether you are a live performer, public speaker, or broadcasting professional, the Sennheiser SKM 100-835 G4-S-G ensures that your voice is delivered with clarity and precision.

The inclusion of the MMD 835-1 BK capsule complements the transmitter, providing exceptional vocal clarity and dynamic sound reproduction. Designed to operate within the 566 - 608 MHz frequency range, this handheld transmitter guarantees reliable and stable performance. Moreover, its easy wireless synchronization via infrared and rapid frequency allocation for up to 12 receivers make it a versatile and user-friendly choice for both amateur and professional users.

With up to 20 compatible channels and a transmission range reaching up to 300 feet, the Sennheiser SKM 100-835 G4-S-G stands out as a powerful tool tailored to meet the needs of demanding audio environments. Adding to its versatility, this transmitter supports up to 42 MHz bandwidth with 1680 selectable frequencies, ensuring that you are always in control of your audio domain.

Key Features

• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations
• Lightweight aluminum housing
• Integrated mute switch for seamless operation

Specifications

• Frequency range: 566 - 608 MHz (G)
• Dimensions: Approx. Ø 50 x 265 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: 0.9%
• Weight (incl. batteries): approx. 450 g
• Signal-to-noise ratio: 110 dBA
• RF output power: Max. 30 mW
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Operating time: Typically 8 hours
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA, with transmitter switched off: 25 A
• Input impedance: 40 kΩ
• Max. Input voltage: 3 Veff
• AF frequency response: 80 - 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: ±15 ppm

Package Contents

• Sennheiser SKM 100-835 G4-S-G Handheld Transmitter
• MMD 835-1 BK Capsule
• User Guide
