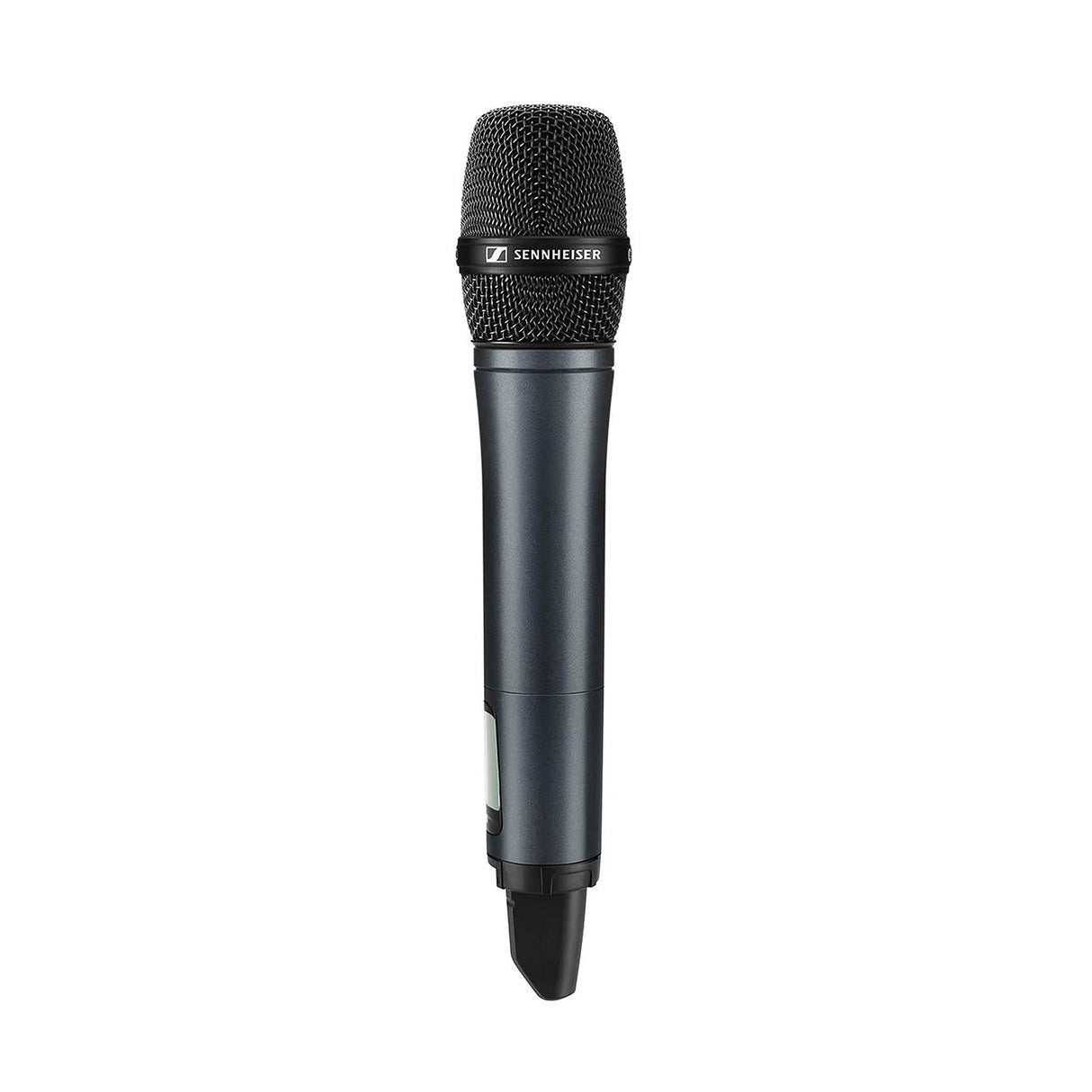

Sennheiser SKM 100-845 G4-A1 Handheld Transmitter with MMD 845-1 BK Capsule, 470 - 516 MHz

Experience unparalleled audio transmission with the Sennheiser SKM 100-845 G4-A1 Handheld Transmitter. Engineered with precision, this transmitter is equipped with the MMD 845-1 BK Capsule and operates within the 470 - 516 MHz frequency range. Whether you're on stage performing or broadcasting live, Sennheiser's evolution wireless G4 100 Series provides reliable and flexible solutions for high-quality sound. Crafted from durable yet lightweight aluminum, this transmitter is not only robust but also easy to handle during intense performances.

The Sennheiser SKM 100-845 G4-A1 is designed to streamline your wireless audio experience. Its infrared synchronization ensures a seamless connection between the transmitter and receiver, while the new linking functionality allows rapid frequency allocation for multiple receivers. Covering a transmission range of up to 100 meters (or 300 feet), it offers a robust connection without signal dropouts, even in challenging environments. The wide tuning bandwidth of up to 42 MHz and 1680 selectable frequencies make it highly adaptable, accommodating up to 20 compatible channels with ease.

Key Features

• Effortless wireless synchronization between transmitter and receiver via infrared
• Rapid frequency allocation for up to 12 receivers with new linking functionality
• Supports up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies within a stable UHF range
• Transmission range of up to 100 meters (300 feet)
• High RF output power (up to 30 mW), subject to country regulations

Specifications

• Frequency Range: 470 - 516 MHz
• Dimensions: Approx. Ø 50 x 265 mm
• Compander: Sennheiser HDX
• THD, Total Harmonic Distortion: 0.9%
• Weight (including batteries): Approx. 450 g
• Signal-to-Noise Ratio: 110 dBA
• RF Output Power: Max. 30 mW
• Switching Bandwidth: Up to 42 MHz
• Peak Deviation: ±48 kHz
• Nominal Deviation: ±24 kHz
• Operating Time: Typically 8 hours
• Modulation: Wideband FM
• Power Supply: 2 AA batteries (1.5 V) or BA 2015 accupack
• Current Consumption: Typically 180 mA, with transmitter switched off 25 μA
• Input Impedance: 40 kOhms
• Max. Input Voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission Frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps
• Frequency Banks: 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation; 1 frequency bank with up to 12 programmable channels
• AF Frequency Response: 80 - 18,000 Hz
• Temperature Range: -10°C to +55°C
• Frequency Stability: ±15 ppm

Package Contents

• Sennheiser SKM 100-845 G4-A1 Handheld Transmitter
• MMD 845-1 BK Capsule
• 2 AA batteries
• User Manual
