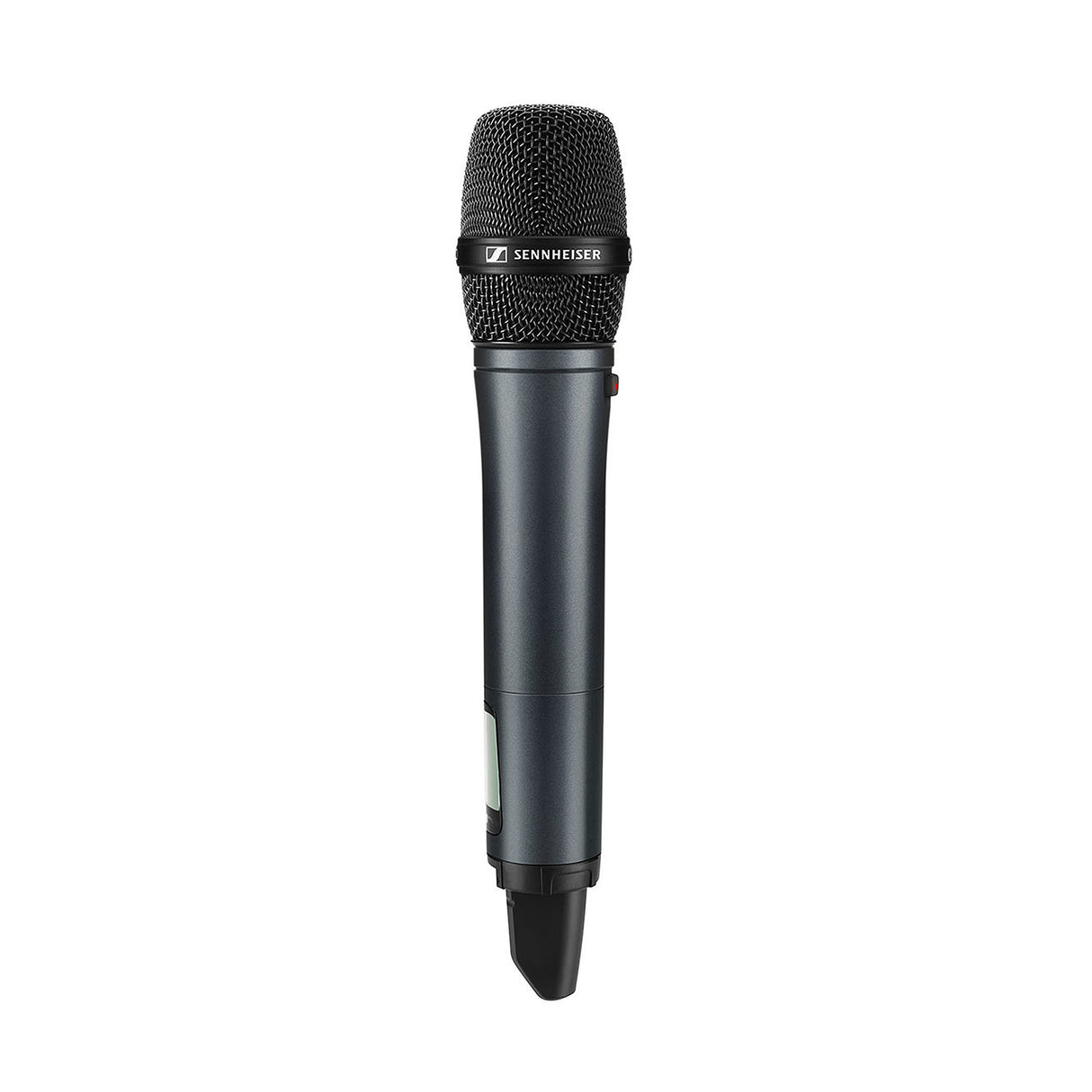

Sennheiser SKM 100-845 G4-S-G Handheld Transmitter with Mute Switch and MMD 845-1 BK Capsule, 566 - 608 MHz

Experience the power of seamless, high-quality audio transmission with the Sennheiser SKM 100-845 G4-S-G Handheld Transmitter. Designed for the evolution wireless G4 100 Series systems, this robust yet lightweight transmitter offers outstanding performance and versatility. The inclusion of an integrated mute switch and MMD 845-1 BK Capsule ensures you have full control over your audio at all times. Whether you are performing on stage, hosting an event, or broadcasting live, this handheld transmitter ensures crystal-clear sound transmission with up to 100 meters of operational range.

The Sennheiser SKM 100-845 G4-S-G Handheld Transmitter boasts advanced features such as fast frequency allocation, making it incredibly user-friendly and efficient. With up to 42 MHz bandwidth and 1680 selectable frequencies, it offers unparalleled flexibility in signal transmission. The lightweight aluminum housing provides durability and comfort for extended use. Its high RF output power of up to 30 mW guarantees strong and reliable performance, depending on your country’s regulations. This transmitter is meticulously engineered to meet the rigors of professional use.

Key Features

• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

Specifications

• Frequency range: 1G8: 1785 - 1800 MHz, A: 516 - 558 MHz, A1: 470 - 516 MHz, AS: 520 - 558 MHz, B: 626 - 668 MHz, C: 734 - 776 MHz, D: 780 - 822 MHz, E: 823 - 865 MHz, G: 566 - 608 MHz, GB: 606 - 648 MHz, JB: 806 - 810 MHz, K+: 925 - 937.5 MHz
• Dimensions: Approx. Ø 50 x 265 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: ≤ 0.9%
• Weight (incl. batteries): approx. 450 g
• Signal-to-noise ratio: ≥ 110 dBA
• RF output power: Max. 30 mW
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage, typ. 180 mA; with transmitter switched off ≤ 25 µA
• Input impedance: 40 kΩ
• Max. Input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps
• 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
• 1 frequency bank with up to 12 programmable channels
• AF frequency response: 80 - 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: ±15 ppm

Package Contents

• Sennheiser SKM 100-845 G4-S-G Handheld Transmitter
• Mute Switch
• MMD 845-1 BK Capsule
