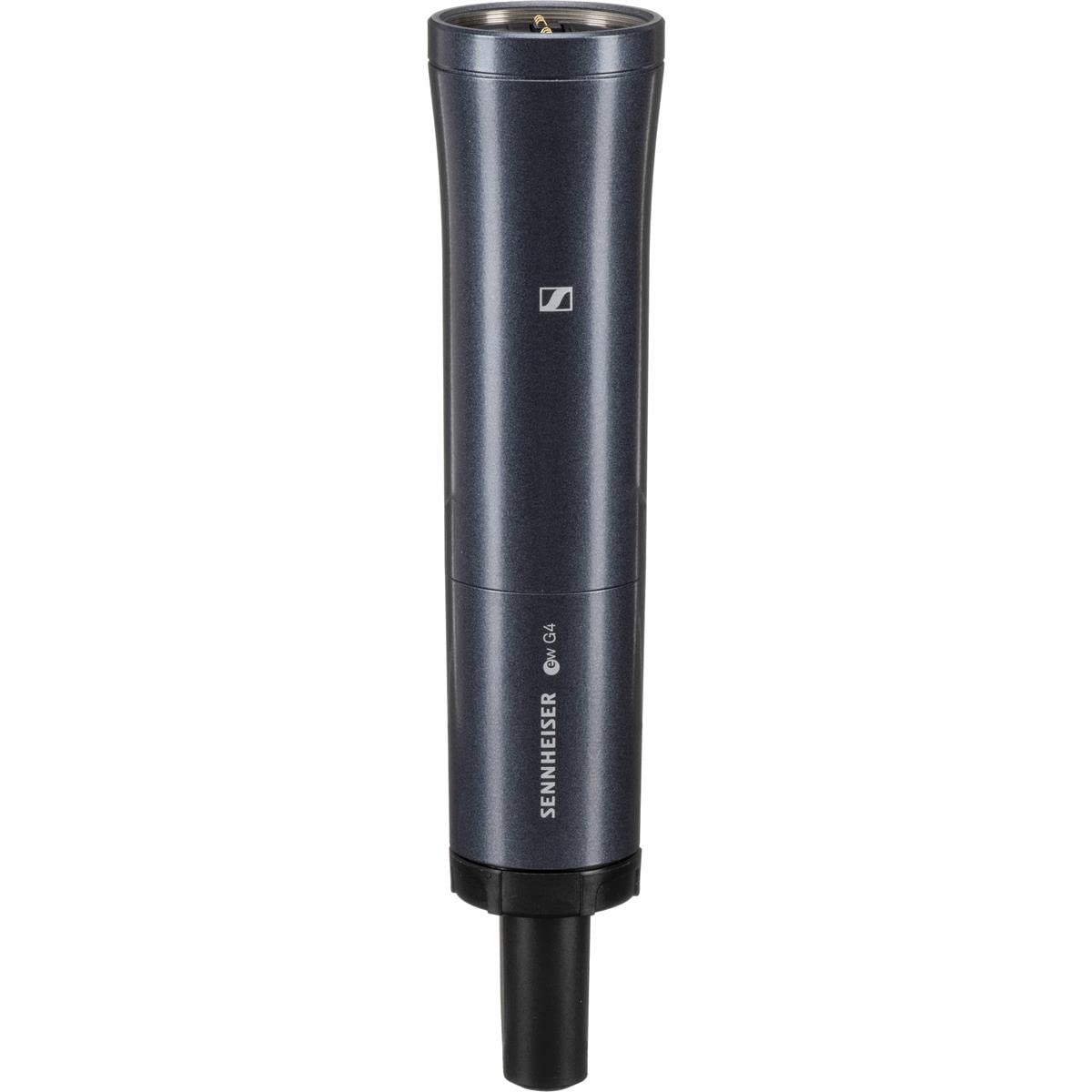

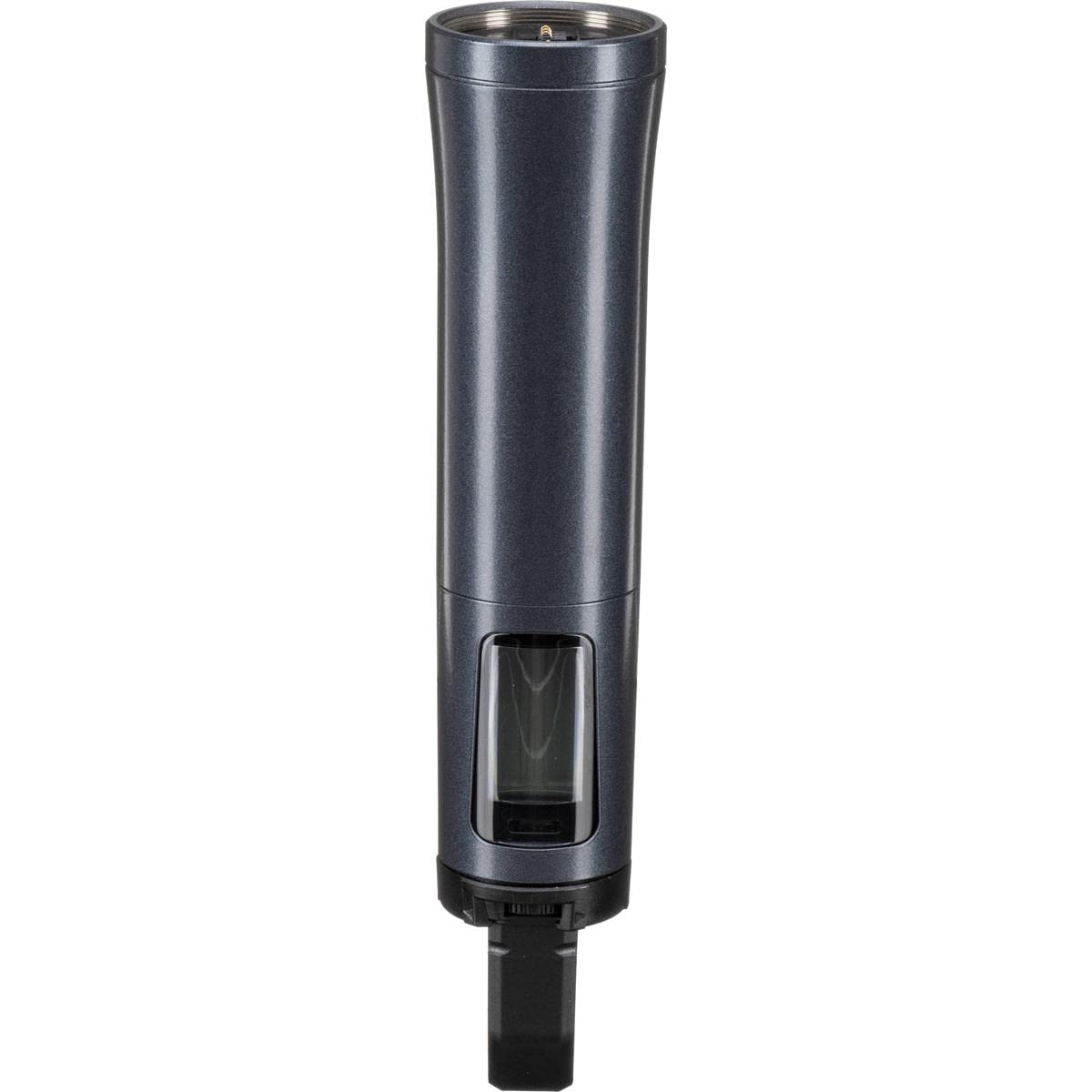

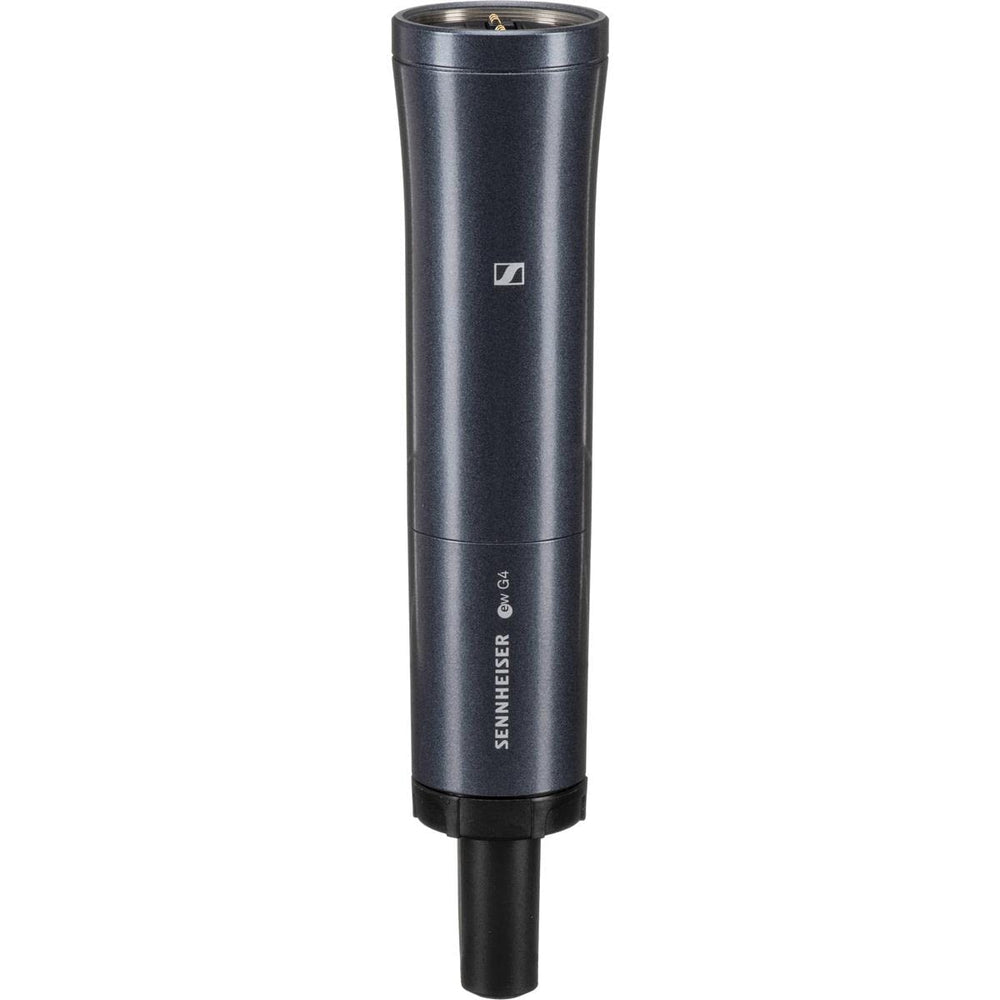

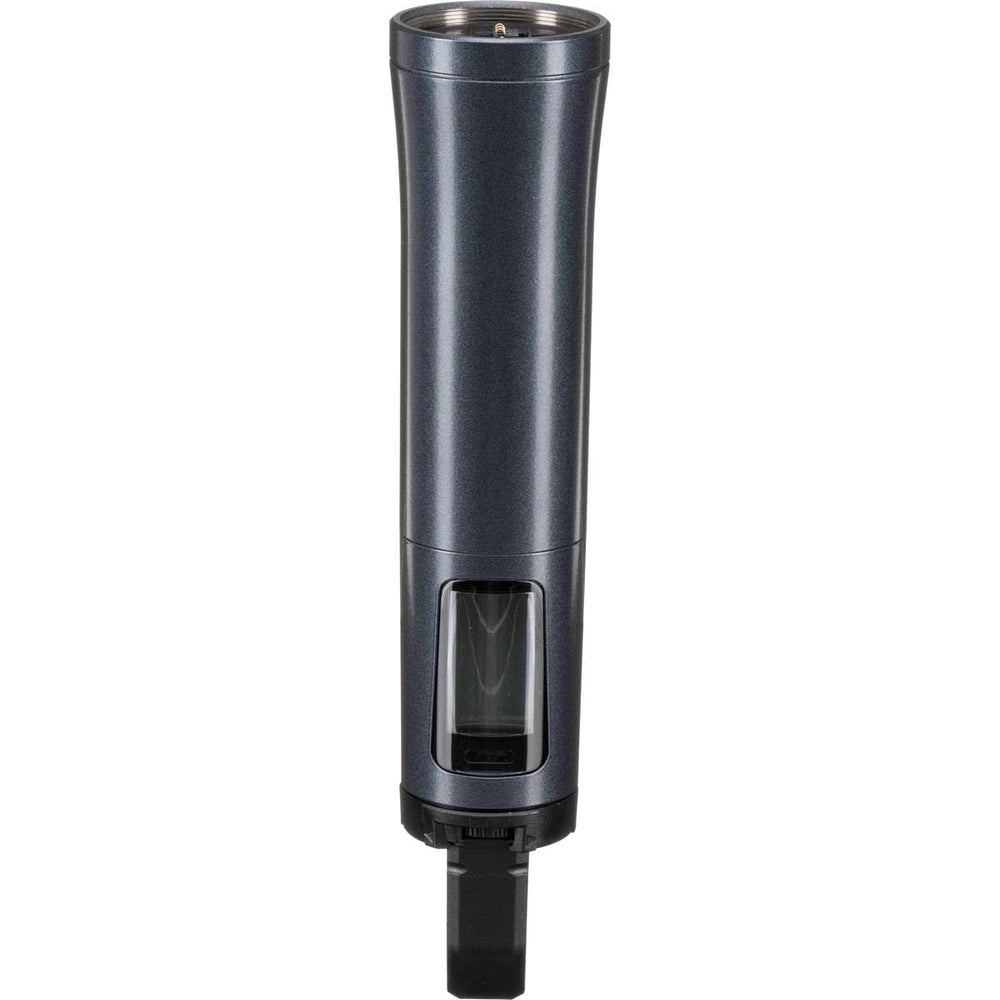

Sennheiser SKM 100 G4-A | Handheld Transmitter
The Sennheiser SKM 100 G4-A Handheld Transmitter is a powerful and highly reliable wireless microphone solution designed for professional audio applications. Engineered with precision, this transmitter features a lightweight aluminum housing that ensures durability without compromising on comfort. The integrated mute switch offers seamless performance control, making it an ideal choice for various live sound environments, including concert halls, corporate events, and broadcast studios. The device operates within the UHF frequency range, providing robust signal stability even in crowded RF environments.
One of the key highlights of the Sennheiser SKM 100 G4-A is its intuitive wireless synchronization between the transmitter and receiver via infrared. This allows for quick setup and flexible frequency management, essential for multi-channel operations. With up to 20 compatible channels and a transmission range reaching up to 100 meters (300 feet), this transmitter ensures comprehensive coverage across large venues. Additionally, the transmitter offers high RF output power, up to 30 mW, tailored to meet various country regulations.
The SKM 100 G4-A is compatible with Sennheiser’s renowned e 835, e 845, e 865, e 935, and e 945 capsules, offering a wide range of vocal characteristics to suit any performance style. The transmitter can operate for up to 8 hours on just two AA batteries, providing reliable long-term performance for professional use.
Key Features
- Choice of Sennheiser’s e 835, e 845, e 865, e 935, e 945 capsules
- Easy and flexible wireless synchronization between transmitter and receiver via infrared
- Fast frequency allocation for up to 12 receivers via new linking functionality
- Up to 20 compatible channels
- Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
- Transmission Range: up to 100 meters / 300 feet
- High RF output power (up to 30 mW) depending on country regulations
Specifications
- Dimensions: Approx. 50 x 265 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: <= 0.9%
- Weight (incl. batteries): approx. 450 g
- Signal-to-noise ratio: >= 110 dBA
- RF output power: Max. 30 mW
- Switching bandwidth: up to 42 MHz
- Peak deviation: +/-48 kHz
- Nominal deviation: +/-24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 180 mA, with transmitter switched off: <= 25 μA
- Input impedance: 40 kΩ
- Max. Input voltage: 3 Veff
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps, 20 frequency banks, up to 12 factory-preset channels, 1 frequency bank with up to 12 programmable channels
- AF frequency response: 80 - 18,000 Hz
- Temperature Range: -10°C to +55°C
- Frequency stability: <= +/-15 ppm
Package Contents
- SKM 100 G4-A handheld transmitter
- MZQ 1 microphone clamp
- 2 AA batteries
- Quick guide
- Safety guide
- Manufacturer declaration sheet
