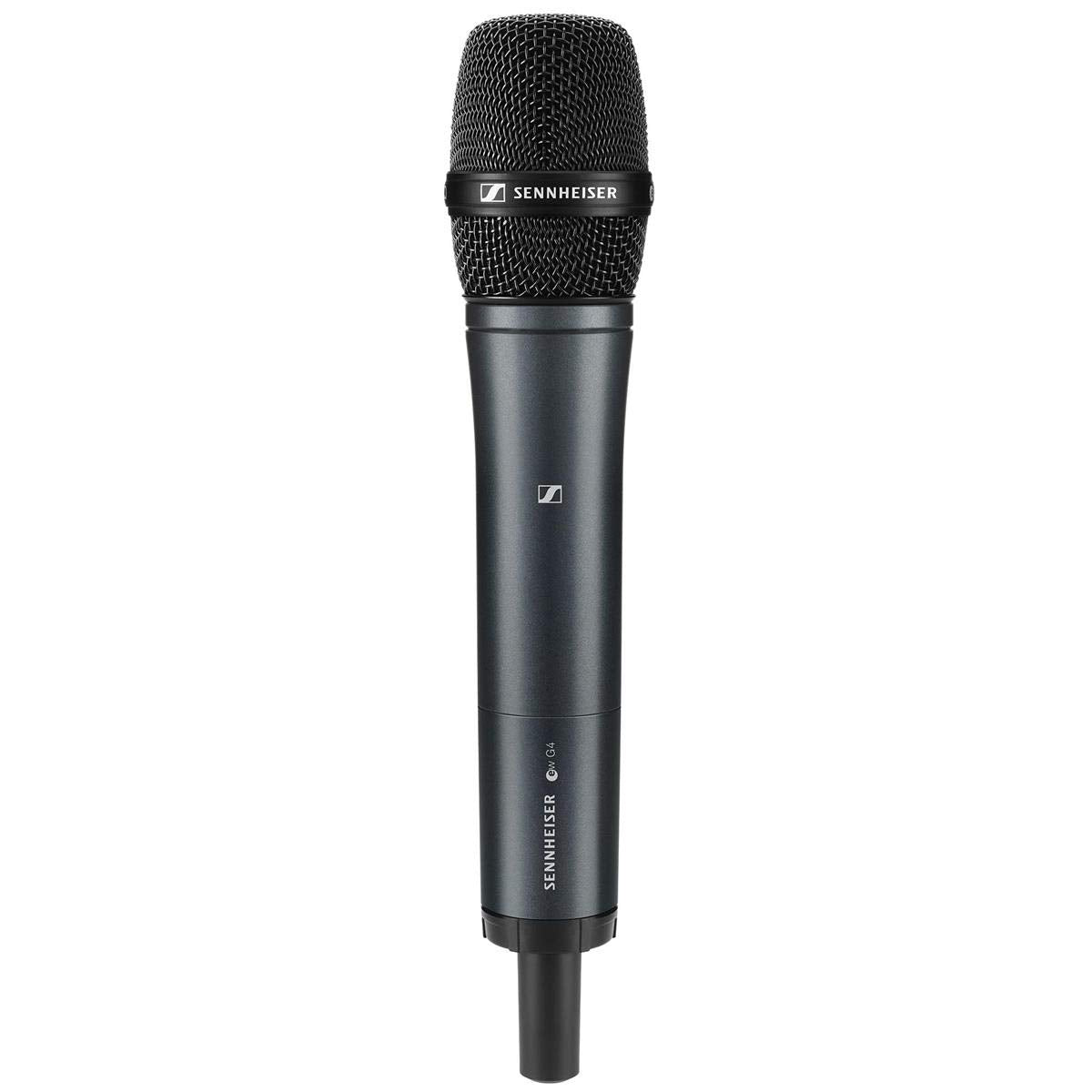

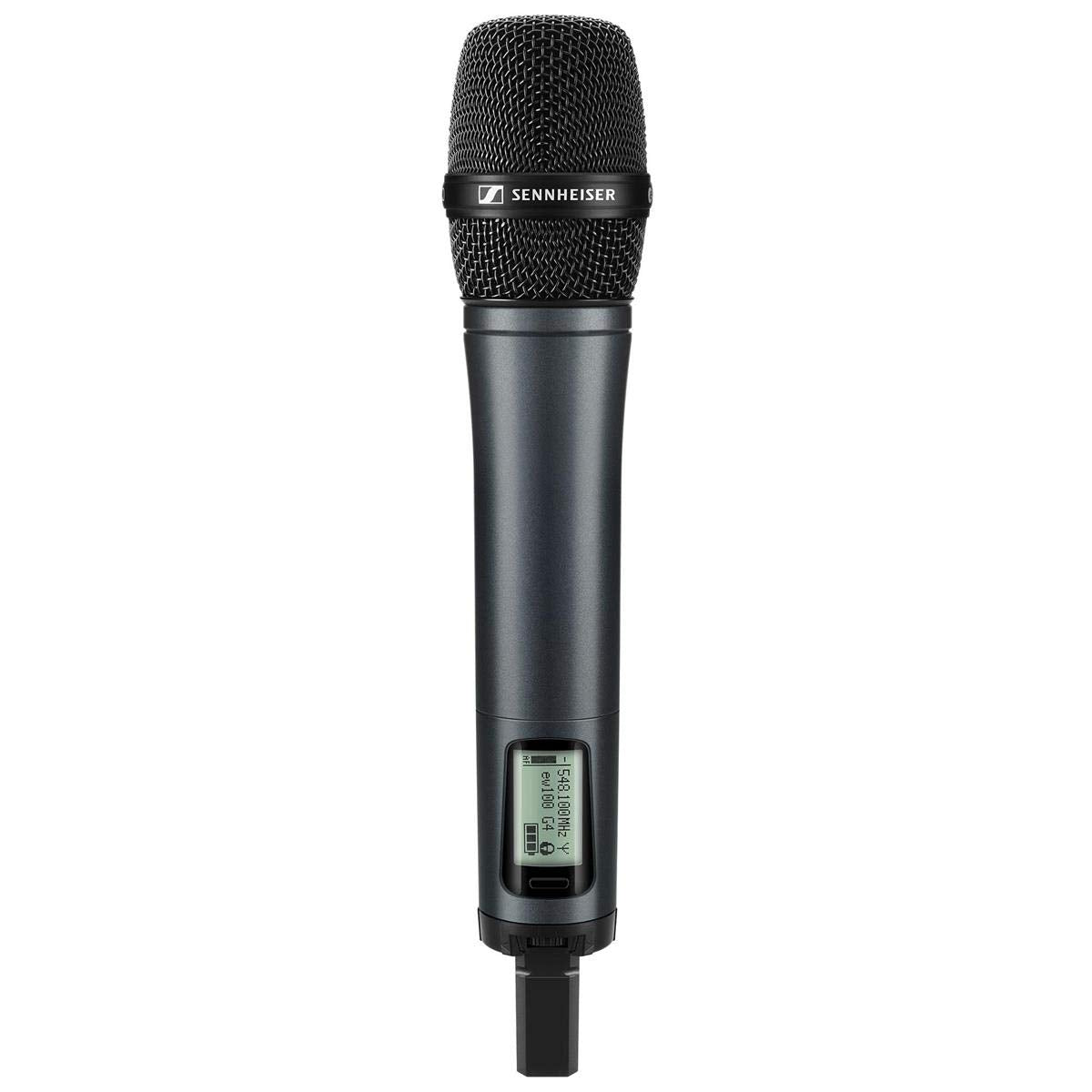

Sennheiser SKM 100 G4-G | Handheld Transmitter

The Sennheiser SKM 100 G4-G Handheld Transmitter is a powerful tool for professionals seeking a reliable and flexible wireless audio solution. Encased in a lightweight aluminum housing, this transmitter boasts an integrated mute switch, making it a practical choice for a wide array of applications, from live performances to conferences. The device supports the renowned evolution wireless G4 100 Series systems, ensuring compatibility and seamless integration for users.

This handheld transmitter offers a range of frequencies to choose from, including A1 (470 - 516 MHz), A (516 - 558 MHz), and G (566 - 608 MHz). The quick and easy wireless synchronization between transmitter and receiver via infrared, along with fast frequency allocation for up to 12 receivers using new linking functionality, promises a hassle-free setup process. Whether you are performing on stage or speaking at an event, the Sennheiser SKM 100 G4-G will provide a high-quality, stable UHF range with a transmission range of up to 100 meters (300 feet).

In addition to its impressive range and reliability, the transmitter features high RF output power of up to 30 mW, depending on country regulations. The device is compatible with various Sennheiser capsules such as the e 835, e 845, e 865, e 935, and e 945, giving users the flexibility to choose the best microphone for their needs.

Key Features

• Choice of Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

Specifications

• Dimensions: Approx. 50 x 265 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: <= 0.9 %
• Weight (incl. batteries): Approx. 450 g
• Signal-to-noise ratio: >= 110 dBA
• RF output power: Max. 30 mW
• Switching bandwidth: Up to 42 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: At nominal voltage: typ. 180 mA; with transmitter switched off: <= 25 A
• Input impedance: 40 kΩ
• Max. input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps; 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation; 1 frequency bank with up to 12 programmable channels
• AF frequency response: 80 - 18,000 Hz
• Temperature range: -10°C to +55°C
• Frequency stability: <= +/-15 ppm

Package Contents

• SKM 100 G4
• MZQ 1 microphone clamp
• 2 AA batteries
• Quick guide
• Safety guide
• Manufacturer declaration sheet
