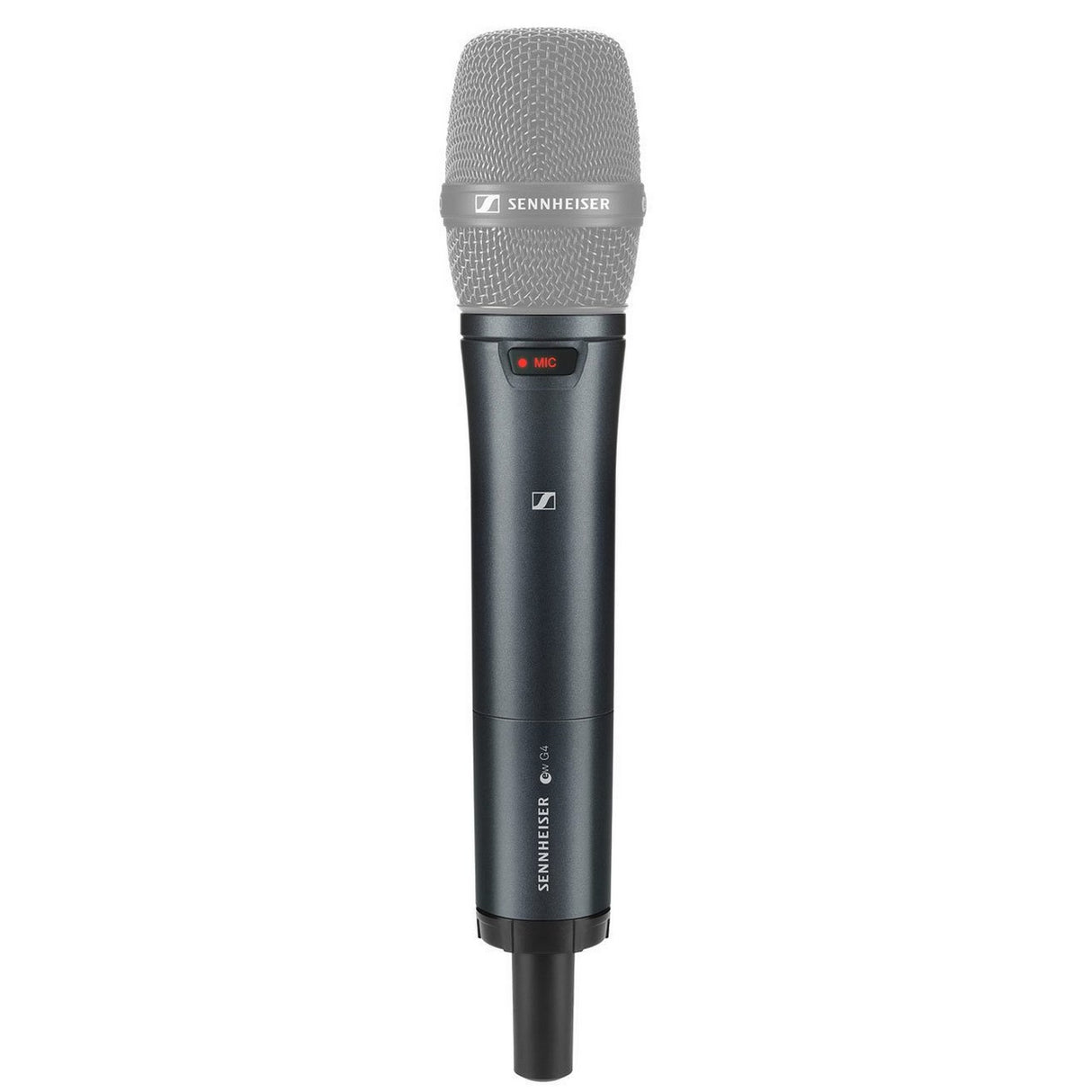

Sennheiser SKM 100 G4-S-G | Handheld Transmitter with Mute Switch

The Sennheiser SKM 100 G4-S-G Handheld Transmitter with Mute Switch is an essential tool for professional audio setups requiring reliable and high-quality wireless transmission. Boasting a lightweight aluminum housing, this powerful handheld transmitter is specifically designed for the Sennheiser evolution wireless G4 100 Series systems. Its ergonomic design ensures ease of use and the integrated mute switch allows for greater flexibility during live performances and recordings.

With the ability to choose from Sennheiser‘s renowned e 835, e 845, e 865, e 935, and e 945 capsules, this transmitter provides unparalleled versatility. The product’s advanced wireless synchronization capabilities allow for seamless operation between the transmitter and receiver via infrared, and with up to 42 MHz bandwidth, users can enjoy a stable UHF range for optimal sound quality. The Sennheiser SKM 100 G4-S-G also features a fast frequency allocation system for up to 12 receivers through a new linking functionality, making it a standout in multi-channel environments such as stage performances and broadcast applications.

Key Features

• Choice of Sennheiser’s renowned e 835, e 845, e 865, e 935, e 945 capsules
• Easy and flexible wireless synchronization via infrared
• Fast frequency allocation for up to 12 receivers
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies in UHF range
• Transmission range up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

Specifications

• Dimensions: Approx. 50 x 265 mm
• Compander: Sennheiser HDX
• Total harmonic distortion: <= 0.9 %
• Weight (including batteries): Approx. 450 g
• Signal-to-noise ratio: >= 110 dBA
• RF output power: Max. 30 mW
• Switching bandwidth: Up to 42 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Operating time: Typically 8 hours
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: Typical 180 mA
• Input impedance: 40 kΩ
• Max. input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps
• AF frequency response: 80 - 18,000 Hz
• Temperature range: -10°C to +55°C
• Frequency stability: <= +/- 15 ppm

Package Contents

• SKM 100 G4-S handheld transmitter
• MZQ 1 microphone clamp
• 2 AA batteries
• Quick guide
• Safety guide
• Manufacturer declaration sheet
