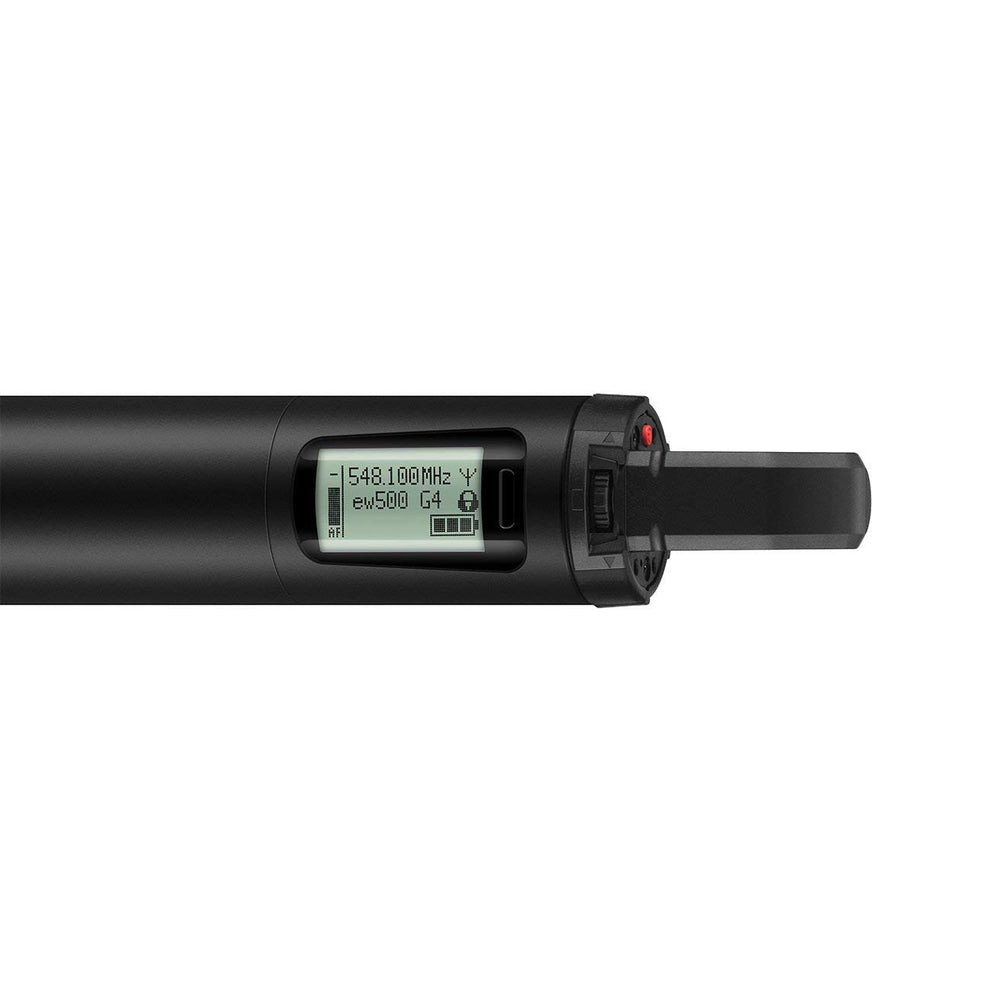

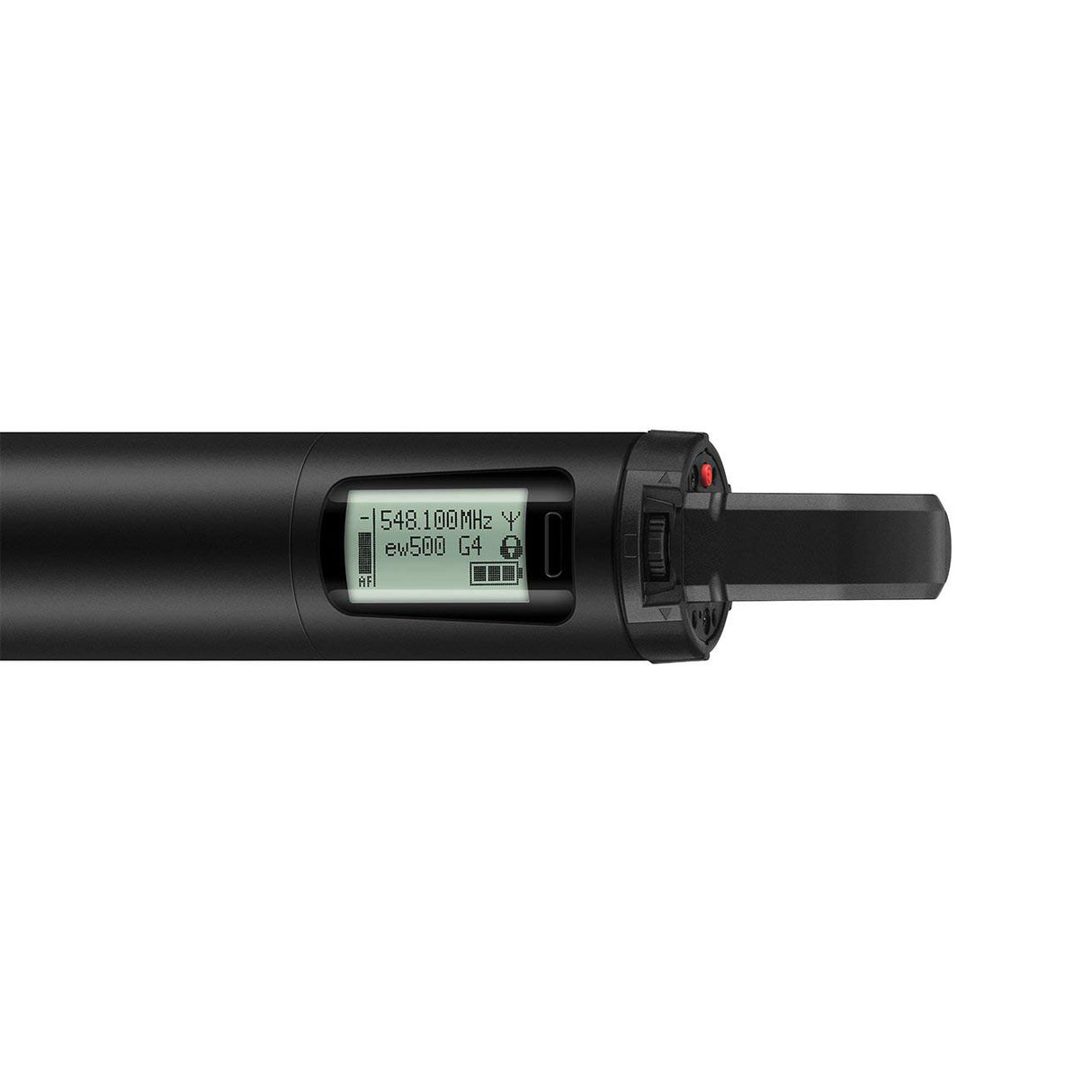

Sennheiser SKM 500 G4-GW1 | Handheld Transmitter

Introducing the Sennheiser SKM 500 G4-GW1 Handheld Transmitter, the ultimate solution for professionals seeking top-tier audio transmission capabilities. This powerful handheld transmitter comes encased in a lightweight black aluminum housing, making it both durable and easy to handle. Designed specifically for the evolution wireless G4 500 Series systems, this transmitter offers increased bandwidth and transmission power, ensuring exceptional performance on the world’s biggest live stages. Whether you’re a musician, sound engineer, or public speaker, the SKM 500 G4-GW1 provides the reliability and flexibility you need to deliver an outstanding performance every time.

With its ability to synchronize wirelessly with receivers via infrared and featuring up to 32 compatible channels, the SKM 500 G4-GW1 ensures seamless integration into any multi-channel setup. The robust UHF range tuning, Ethernet connectivity for Wireless Systems Manager (WSM) control software, and high RF output power adjustable in three steps (up to 50 mW) make it an ideal choice for serious audio professionals. Additionally, it is compatible with Sennheiser's renowned state-of-the-art e 935, e 945, e 965 capsules, giving you the versatility to choose the best capsule for your specific application.

With up to 88 MHz bandwidth and 3520 selectable frequencies, this handheld transmitter is built to provide exceptional sound clarity and stability. Its ergonomic design and long-lasting battery life (typically 8 hours) ensure that the SKM 500 G4-GW1 can keep up with the demanding requirements of any live environment. Make the Sennheiser SKM 500 G4-GW1 Handheld Transmitter your go-to choice for delivering clear, concise, and professional audio performance.

Key Features

• Choice of Sennheiser’s renowned e 935, e 945, e 965 capsules
• Easy and flexible wireless synchronization via infrared
• Up to 32 compatible channels
• Up to 88 MHz bandwidth with 3520 selectable frequencies
• Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination
• High RF output power, adjustable in three steps (10/30/50 mW)

Specifications

• Dimensions: Approx. 50 x 265 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: ≤ 0.9 %
• Weight (incl. batteries): Approx. 450 g
• Signal-to-noise ratio: ≥ 115 dBA
• RF output power: Switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
• Switching bandwidth: Up to 88 MHz
• Peak deviation: +/-48 kHz
• Nominal deviation: +/-24 kHz
• Operating time: Typically 8 hours
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: At nominal voltage: Typ. 180 mA, Transmitter switched off: ≤ 25 A
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
• AF frequency response: 80 - 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: ≤ +/-15 ppm

Package Contents

• SKM 500 G4 handheld transmitter
• MZQ 1 microphone clamp
• 2 AA batteries
• Protective pouch
• Quick guide
• Safety guide
• Manufacturer declaration sheet
