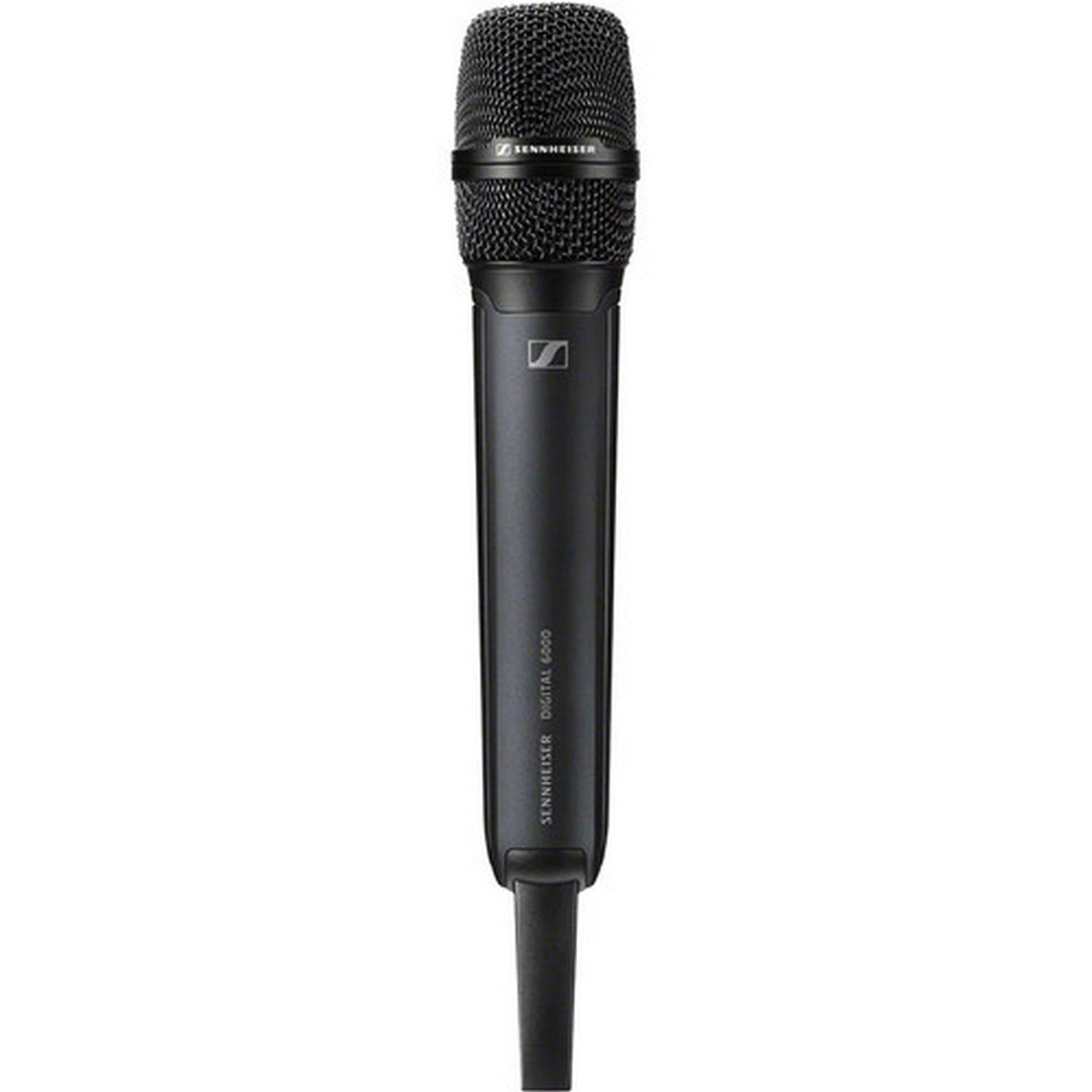

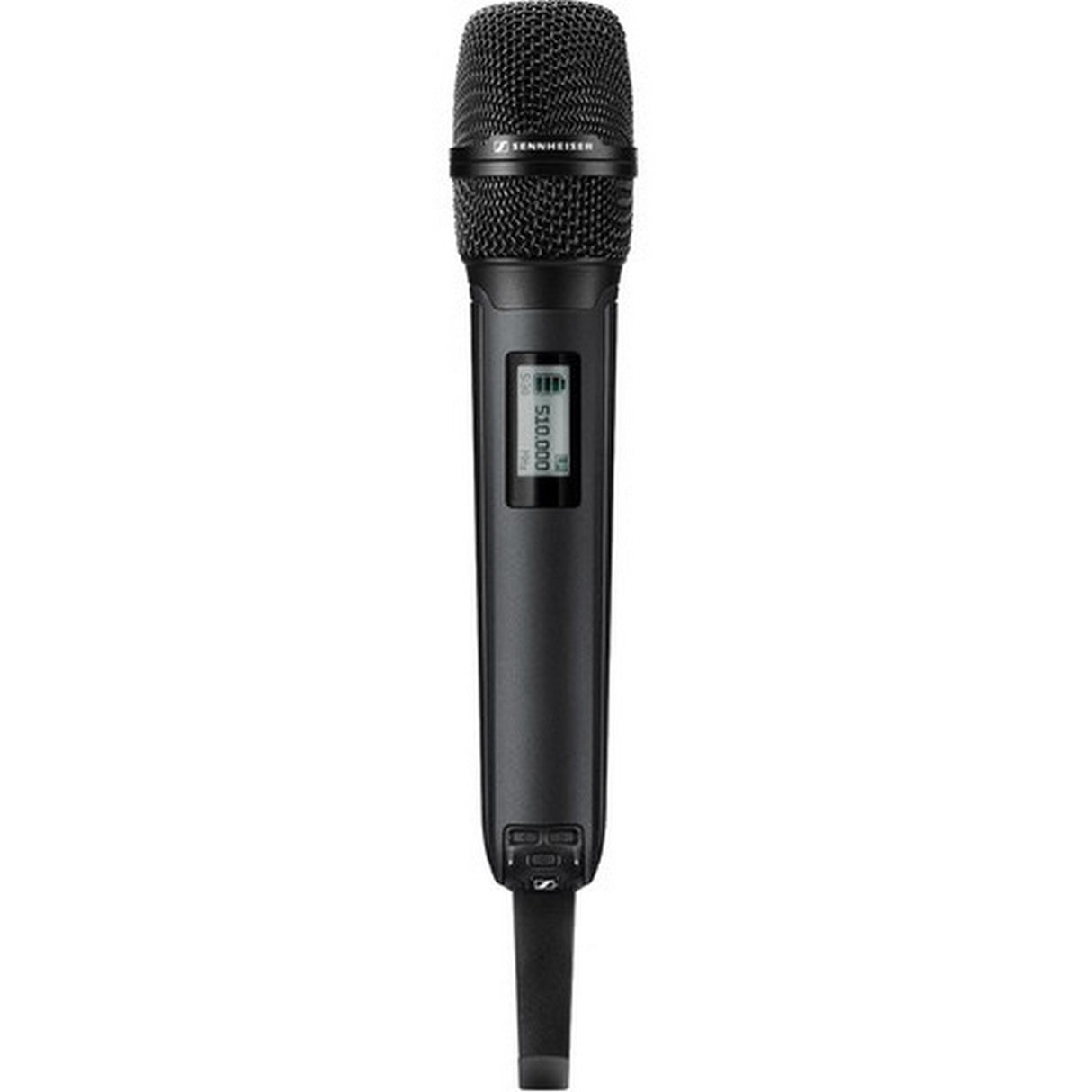

Sennheiser SKM 6000 BK COM Digital Handheld Wireless Transmitter - A1-A4: 470 to 558 MHz

Sennheiser SKM 6000 BK COM Digital Handheld Wireless Transmitter

The Sennheiser SKM 6000 BK COM digital handheld wireless transmitter is a capsule-ready Digital 6000 transmitter offered here in A1-A4 COM and A5-A8 COM frequency variants. Both versions add a programmable command button, deliver intermodulation-free UHF operation, and support Sennheiser and Neumann-compatible microphone heads for professional live, broadcast, theater, and installed applications.

The SKM 6000 BK A1-A4 COM covers 470.2 to 558 MHz, while the SKM 6000 BK A5-A8 COM covers 550 to 638 MHz. Each provides an 88 MHz switching bandwidth with 25 kHz tuning steps, giving RF coordinators substantial flexibility when deploying multichannel wireless microphone systems. Long Range and Link Density operating modes support applications ranging from premium audio transmission to high channel-count productions.

Sennheiser's SeDAC codec handles Long Range operation, while SePAC supports Link Density mode with up to five links per 1 MHz of spectrum. AES 256 and Digital 9000 encryption protect wireless transmission, and the magnesium housing balances low weight with professional durability. A BA 60 rechargeable battery provides up to 5.5 hours of operation, with the B 60 battery set available as an alternative.

Key Features

• Two COM Frequency Variants: Choose A1-A4 COM for 470.2 to 558 MHz or A5-A8 COM for 550 to 638 MHz operation.
• Programmable Command Button: COM configuration adds a command button for enhanced control and extended system functionality.
• 88 MHz Switching Bandwidth: Provides broad tuning flexibility for coordinated professional wireless microphone deployments.
• Intermodulation-Free Transmission: Supports equidistant frequency spacing for efficient spectrum use in high-channel-count productions.
• Long Range and Link Density Modes: Uses dedicated digital audio codecs for high-quality transmission or increased channel density.
• Interchangeable Capsule Interface: Accepts compatible Sennheiser microphone heads and Neumann KK 204 and KK 205 series capsules.
• AES 256 Encryption: Supports AES 256 and Digital 9000 encryption for secure professional wireless transmission.
• Magnesium Housing: Combines low weight with a construction designed for demanding live and production environments.

Technical Specifications

• Product Type: Digital UHF handheld wireless microphone transmitter with command button
• Color: Black
• Variant - SKM 6000 BK A1-A4 COM: Article 701049; 470.2 to 558 MHz
• Variant - SKM 6000 BK A5-A8 COM: Article 701051; 550 to 638 MHz
• Switching Bandwidth: 88 MHz
• Tuning Resolution: 25 kHz steps
• Frequency Stability: Less than 5 ppm
• Modulation: Digital modulation with Long Range and Link Density modes
• Long Range Audio Codec: SeDAC, Sennheiser Digital Audio Codec
• Link Density Audio Codec: SePAC, Sennheiser Performance Audio Codec
• Link Density: Up to 5 links per 1 MHz bandwidth
• Encryption: AES 256 and Digital 9000 encryption
• RF Output Power - Long Range: 25 mW RMS
• RF Output Power - Link Density: 1 mW RMS
• Audio Frequency Response - Long Range: 30 Hz to 20 kHz, -3 dB
• Audio Frequency Response - Link Density: 30 Hz to 14 kHz, -3 dB
• Low-Cut Frequency: 60, 80, 100, or 120 Hz
• Audio Gain: 0 to +62 dB in 3 dB steps, capsule dependent
• Synchronization: Infrared synchronization with compatible receiver
• Display: Backlit LCD
• Capsule Interface: Sennheiser standard interchangeable capsule interface
• Compatible Capsule Families: Sennheiser evolution wireless G3, 2000, Digital 9000, and Neumann KK 204/KK 205 series
• Microphone Capsule: Sold separately
• Compatible System Components: EM 6000 and EM 6000 DANTE
• Additional Receiver Compatibility: EK 6042 and EM 9046 in Long Range mode
• Battery Options: BA 60 rechargeable lithium-ion battery pack or B 60 battery set
• Operating Time: Up to 5.5 hours with BA 60 battery pack
• Battery Included: No
• Housing: Magnesium
• Operating Temperature: 14 to 122 degrees Fahrenheit
• Approximate Dimensions: 10.6 inches long x 1.6 inches diameter
• Approximate Weight: 0.8 lb with BA 60 battery pack and ME 9005 microphone module
• Warranty: 2 years

What's In the Box

• SKM 6000 handheld transmitter with command button
• MZQ 9000 microphone clip
• Quick guide
• Safety guide
